Bussmann CGL Class C Current-L...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$288.34

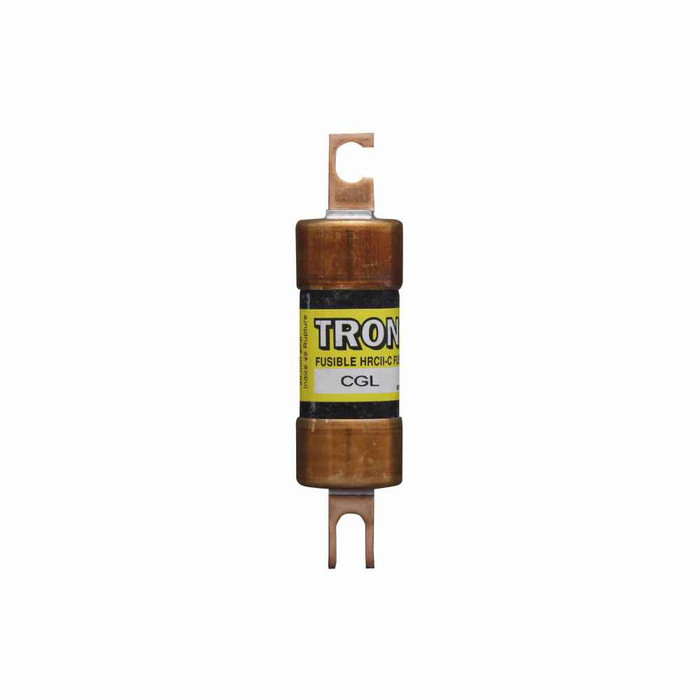

Bussmann CGL Class C Current-Limiting Fuse, 600V

Bussmann CGL Class C Current-Limiting Fuse, 600V

(No reviews yet) Write a Review

Model: CGL-1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$288.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann CGL-35 Eaton Edison TJS Current-Limiting Fuse, 600V, 35A

The Bussmann CGL-35 is an Eaton Edison TJS current-limiting fuse rated 600V and 35A, purpose-built for circuits subject to surge currents such as those caused by motors, transformers, and other inductive loads. Constructed as an HRC Form II current-limiting fuse, it delivers dependable overcurrent protection with a 200 kAIC interrupt rating alongside a standard non-indicating design, making it a straightforward drop-in replacement for industrial, commercial, and panelboard electrical systems where consistent, code-compliant fuse protection is required.

Key Features

  • Amperage Rating: 35A for accurately sized overcurrent protection on branch and feeder circuits.
  • Voltage Rating: 600V, suitable for demanding industrial, commercial, and utility-grade circuits.
  • Current-Limiting HRC Form II Design: Fast-acting current limitation reduces peak let-through energy and helps protect downstream conductors and equipment from damaging fault currents.
  • Non-Indicating: Standard non-indicating design without a blown-fuse indicator, for applications where visual status indication is not required.
  • Interrupt Rating: 200 kAIC, with an additional 40 kAIC Vdc rating supporting DC-side applications.
  • Application: Engineered for circuits subject to surge currents such as those caused by motors, transformers, and other inductive loads.
  • Compact Footprint: Measures 3.44 in. in height, 1.4 in. in length/depth, and .81 in. in width, at a light .11 lb, for easy installation in tight fuse blocks and holders.
  • Standard Packaging: Supplied in standard packaging for straightforward stocking and distribution.

Technical Specifications

  • Amperage Rating: 35 A
  • Application: Circuits subject to surge currents such as those caused by motors, transformers and other inductive loads
  • Compliances: Not Applicable
  • Fuse Indicator: Non-indicating
  • Interrupt Rating: 40 kAIC Vdc
  • Packaging Type: Standard
  • Product Height: 3.44 in
  • Product Length Depth: 1.4 in
  • Product Weight: .11 lb
  • Product Width: .81 in
  • Product Type: Current-limiting, HRC Form II
  • Product Details: Current-limiting, HRC Form II

Typical Applications

  • Motor Circuit Overcurrent Protection
  • Transformer and Inductive Load Protection
  • Industrial and Commercial Electrical Distribution
  • Panelboard and Switchboard Fuse Replacement
  • Circuits Subject to Surge Currents from Motors and Transformers

Why Bussmann?

Bussmann current-limiting fuses are engineered for consistent, code-compliant overcurrent protection in demanding industrial and commercial environments. The CGL-35 Eaton Edison TJS fuse pairs an HRC Form II current-limiting design with a 200 kAIC interrupt rating to help safeguard motors, transformers, and other inductive-load circuits from surge-related overcurrent conditions, giving electrical professionals a reliable fuse for panelboards, switchboards, and industrial distribution equipment.

Manufacturer Resources

Product Specs

Department:
Electrical
Packaging Type:
Standard
Fuse Indicator:
Non-indicating
Compliances:
Not Applicable
Product Group:
Circuit Protection
Product Subgroup:
Fuses
Product Type:
Current-limiting, HRC Form II
Product Details:
Current-limiting, HRC Form II

Bussmann CGL-1 – Frequently Asked Questions

1) What amp ratings does the Bussmann CGL Class C fuse come in?
The CGL series is offered in two amp ratings: 1A (CGL-1) and 35A (CGL-35). Both are 600V current-limiting fuses, so the amperage is the only selection you make. Size it to the branch or feeder you are protecting, not to the holder.
2) Is the Bussmann CGL the same as an Eaton Edison TJS fuse?
Yes. The CGL is the Bussmann designation for the Eaton Edison TJS current-limiting fuse, 600V. If a drawing or an existing panel calls out a TJS at 1A or 35A, the matching CGL-1 or CGL-35 is the part to order.
3) Can the CGL fuse handle motor inrush and transformer magnetizing current without nuisance blowing?
That is what it is built for. The CGL is specified for circuits subject to surge currents such as those caused by motors, transformers, and other inductive loads, so it rides through normal inrush while still clearing a fault. Typical uses are motor branch circuit protection, transformer and inductive load protection, and panelboard or switchboard fuse replacement.
4) What is the interrupting rating on the Bussmann CGL 600V fuse?
200 kAIC on AC, with a 40 kAIC rating at Vdc for DC-side applications. That AC figure covers available fault current in most industrial service and distribution equipment, which is the number an engineer checks against the short circuit study before accepting the fuse.
5) Does the CGL fuse have a blown-fuse indicator?
No. The CGL is a non-indicating fuse, so there is no visual pop-up or window to show it has opened. In a panel where maintenance techs need to spot an open fuse at a glance, choose an indicating type instead; otherwise you are testing with a meter.
6) What does current-limiting HRC Form II mean for protecting my downstream equipment?
A current-limiting HRC Form II fuse clears fast enough during a high fault to cut the peak let-through current and energy that reaches the circuit, which is how conductors, starters, and connected equipment survive the event instead of being damaged by it. A non-current-limiting fuse or a slower device lets substantially more energy through.
7) Can I use a 600V CGL fuse on a 480V or 240V circuit?
Yes. The CGL is rated 600V, and a fuse may be applied at or below its voltage rating, so 480V and 240V systems are covered. What you cannot do is go the other way and use a lower-voltage fuse on a 600V circuit.
8) How is the CGL fuse packaged for stocking?
Standard packaging, which suits distributors and MRO cribs holding both the 1A and 35A ratings on the shelf as spares for panelboards and switchboards.
