Bussmann FLG Series Cartridge ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$14.89

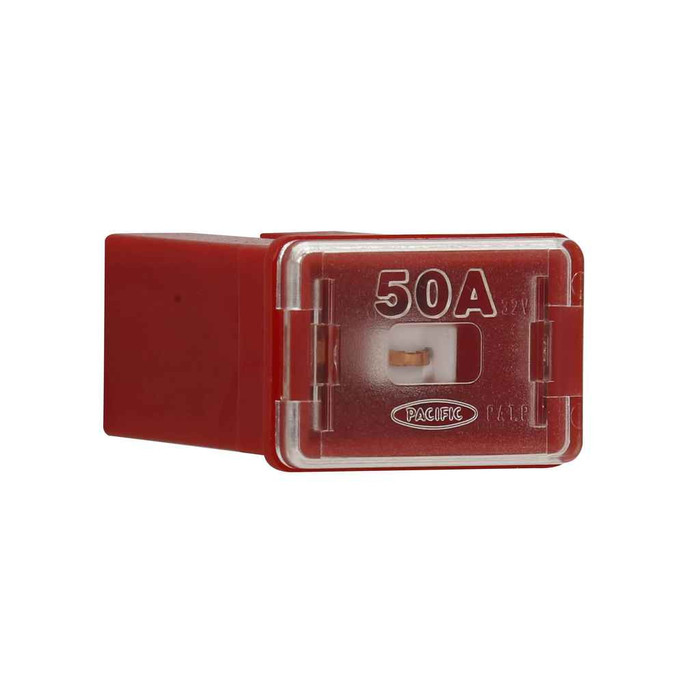

Bussmann FLG Series Cartridge Fuse Link, Female Termination

Bussmann FLG Series Cartridge Fuse Link, Female Termination

(No reviews yet) Write a Review

Model: FLG-50

In Stock (leaves warehouse same day if ordered before 3pm ET)

$14.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann FLG Series Cartridge Fuse Link, Female Termination

The Bussmann FLG Series Cartridge Fuse Link delivers dependable overcurrent protection for wiring harness circuits in Japanese-designed vehicles. This fuse link family is available in amp ratings from 50A to 80A, rated 32Vdc with a 10kAIC interrupt rating, and features a female termination for secure connection into the harness along with a non-indicating fuse element for straightforward installation. Select the amp rating that matches your circuit's load requirements from the options available on this listing.

Key Features

  • Amp Rating Range: Available in 50A, 60A, and 80A ratings so you can match the fuse link to your circuit's load requirements.
  • Female Termination: Fuse link, female termination design for direct, secure connection into the vehicle wiring harness.
  • Voltage Rating: Rated 32Vdc for low-voltage vehicle wiring harness circuits.
  • Interrupt Rating: 10kAIC interrupt rating supports reliable interruption of fault currents.
  • Non-Indicating Design: Non indicating fuse element for standard cartridge fuse installations.
  • Vehicle Application: Purpose-built for Japanese-designed vehicles requiring wiring harness overcurrent protection.
  • Packaging: Standard packaging type.

Technical Specifications

  • Packaging Type: Standard
  • Application: Japanese designed vehicles for wiring harness protection
  • Product Details: Fuse link, female termination
  • Fuse Indicator: Non Indicating
  • Voltage Rating: 32 Vdc
  • Product Type: Fuse link, female termination
  • Interrupt Rating: 10 kAIC

Typical Applications

  • Automotive Wiring Harness Protection
  • Japanese-Designed Vehicle Electrical Systems
  • Low-Voltage DC Circuit Protection
  • Aftermarket Fuse Replacement for Vehicle Harnesses
  • OEM Wiring Harness Repair and Maintenance

Why Bussmann?

Bussmann engineers the FLG Series fuse link with a defined 32Vdc voltage rating and 10kAIC interrupt rating, giving installers a dependable, non-indicating overcurrent protection device for demanding vehicle wiring harness applications. The female termination design ensures a secure fit in the harness, and the 50A-80A rating range makes it easy to match the correct fuse link to the circuit being protected. Trust Bussmann for reliable, application-specific fuse protection in Japanese-designed vehicle electrical systems.

Manufacturer Resources

Product Specs

Packaging Type:
Standard
Application:
Japanese designed vehicles for wiring harness protection
Department:
Electrical
Product Group:
Fuses
Product Details:
Fuse link, female termination
Fuse Indicator:
Non Indicating
Voltage Rating:
32Vdc
Product Type:
Fuse Link
Product Subgroup:
Other Fuses
Interrupt Rating:
10 kAIC
Connection Type:
Female Termination
Amperage Rating:
50A-80A
Series:
FLG

Bussmann FLG-50 – Frequently Asked Questions

1) Will a Bussmann FLG fuse link work in a 12V automotive system?
Yes. The FLG Series cartridge fuse link is rated 32Vdc, which is the standard rating class for low-voltage vehicle DC circuits and covers 12V and 24V harness systems. The 32Vdc figure is a maximum, not a required operating voltage, so a 12V harness is well inside it. Its 10 kAIC interrupt rating is what it can safely clear on a hard short.
2) What amp ratings does the Bussmann FLG fuse link come in?
Three ratings: 50A, 60A and 80A, ordered as FLG-50, FLG-60 and FLG-80. Match the rating to the circuit the harness branch was built for rather than to the load you measure, since fuse links protect the wire, not the device on the end of it. Going up a size to stop nuisance blowing leaves the harness conductor unprotected.
3) Does the FLG fuse link have male or female terminals?
Female. The FLG is a cartridge fuse link with female termination, so it receives the male blades or tabs in the harness holder. If the block in the vehicle presents female sockets, this is the wrong termination for it and you need a male-terminated link instead.
4) Will a Bussmann FLG fuse link fit a Japanese import vehicle harness?
That is exactly what it is built for. Bussmann specifies the FLG Series for wiring harness protection in Japanese-designed vehicles, which is where cartridge-style fuse links in the 50A to 80A range are typically used on main feed and alternator branches. Confirm the holder takes a female-terminated cartridge before ordering.
5) Is a cartridge fuse link like the FLG the same thing as a fusible link wire?
No, and they are not interchangeable. The FLG is a cartridge-style fuse link with female termination that plugs into a holder or terminal block. A fusible link wire is a length of undersized, high-temperature-insulated conductor spliced into the harness and cut out with a crimp when it fails. If the vehicle uses a plug-in cartridge block, the FLG in 50A, 60A or 80A is the replacement style; if it uses a spliced wire link, this is not the part.
6) Can I use an FLG fuse link on a 120V or 240V AC branch circuit?
No. The FLG is rated 32Vdc only, which restricts it to low-voltage DC vehicle and equipment circuits. Any building branch circuit, control panel at line voltage, or AC distribution needs a fuse rated for that system voltage. Using a 32Vdc link on line voltage risks the fuse failing to interrupt.
7) Can I tell by looking whether an FLG fuse link has blown?
No. The FLG is a non-indicating fuse element, so there is no pop-up pin or LED flag to show it has opened. Diagnose it with a meter or a test light across the link, or by checking for voltage downstream. Fleet techs replacing links on a rack of vehicles should plan on continuity testing rather than a visual sweep.
8) How are Bussmann FLG fuse links packaged for shop or fleet stock?
Standard packaging, ordered by individual amp rating: FLG-50, FLG-60 and FLG-80 are separate part numbers. There is no combined assortment, so a fleet shop stocking all three carries three line items.
