Bussmann FWP-A22FI High-Speed ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$245.61

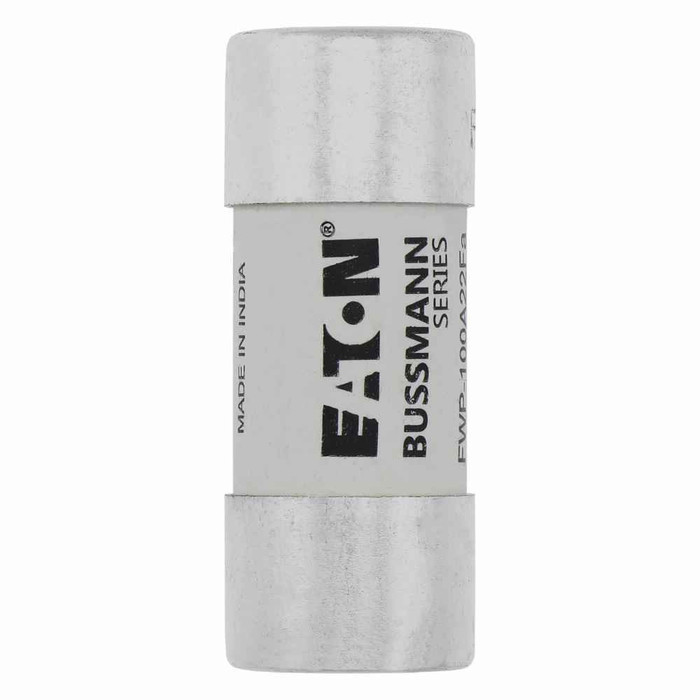

Bussmann FWP-A22FI High-Speed Ferrule Fuse, 700V AC/DC, Indicating

Bussmann FWP-A22FI High-Speed Ferrule Fuse, 700V AC/DC, Indicating

(No reviews yet) Write a Review

Model: FWP-20A22FI

In Stock (leaves warehouse same day if ordered before 3pm ET)

$245.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann FWP-100A22FI Class aR High-Speed Fuse, 100A

The Bussmann FWP-100A22FI is an Eaton Bussmann series Class aR high-speed fuse rated 100A at 700 Vac/700 Vdc, built to protect DC common bus, DC drives, power converters/rectifiers, and reduced voltage starters. This cylindrical 22 x 58 mm fuse has a ferrule end X ferrule end connection, an indicator/striker, and a 200 kAIC at 300 Vdc interrupt rating. Its ceramic body is UL Recognized, CE Marked.

Key Features

  • Fuse Size: 22 x 58 mm, cylindrical.
  • Construction: Ceramic body.
  • Connection: Ferrule end X ferrule end, for finger-safe holders/blocks and striker.
  • Amperage Rating: 100A, Class aR semiconductor protection.
  • Voltage Rating: 700 Vac, 700 Vdc (UL) AC/DC.
  • Interrupt Rating: 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc; 200 A breaking capacity.
  • Indicator & Striker: Indicator and striker for fault signaling.
  • Frequency Rating: 45 Hz to 62 Hz.

Certifications & Compliance

  • UL Recognized
  • CE Marked

Technical Specifications

  • Amperage Rating: 100A
  • Amperage Rating Numeric: 100 A
  • Application: protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
  • Breaking Capacity: 200 A
  • Certifications: UL Recognized
  • Class: Class aR
  • Clearing I2t: 15600
  • Compliances: CE Marked
  • Connection: Ferrule end X ferrule end
  • Frequency Rating Maximum: 62 HZ
  • Frequency Rating Minimum: 45 HZ
  • Fuse Indicator: With Indicator
  • Fuse Shape: cylindrical
  • Fuse Size: 22 x 58 mm
  • Interrupt Rating: 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc
  • Material Type: Ceremic
  • Packaging Type: Standard
  • Pre Arc I2t: 1100
  • Product Height: 22 MM
  • Product Length Depth: 58 MM
  • Product Weight: 64.5 G
  • Product Width: 22 MM
  • Release Characteristic: Other
  • Used With: Finger safe holders/blocks and striker
  • Utilization Category: aR (accompanied semiconductor protection)
  • Voltage Rating: 700 Vac, 700 Vdc (UL)
  • Voltage Rating Numeric: 700 V
  • Voltage Type: AC/DC
  • Watt Losses: 16.5
  • With Striker: Yes
  • Product Color: White
  • Product Diameter: 22 MM
  • Item Quantity: 10

Typical Applications

  • DC Common Bus Protection
  • DC Drive Systems
  • Power Converters and Rectifiers
  • Reduced Voltage Starters
  • Semiconductor Device Protection

Why Bussmann?

Bussmann brings proven protection to the FWP series: a ceramic body, UL Recognized, CE Marked, and a 200 kAIC interrupt rating for demanding DC duty, dependable for power electronics use.

Manufacturer Resources

Product Specs

Item Quantity:
10
Product Color:
White
Utilization Category:
aR (accompanied semiconductor protection)
Class:
Class aR
Product Details:
High speed fuse
Fuse Indicator:
With Indicator
Used With:
Finger safe holders/blocks and striker
Compliances:
CE Marked
Product Type:
High speed fuse
Fuse Size:
22 x 58 mm
Breaking Capacity:
200 A
Packaging Type:
Standard
Certifications:
UL Recognized
Department:
Electrical
Voltage Type:
AC/DC
Release Characteristic:
Other
Product Subgroup:
Other Fuses
Product Group:
Fuses
