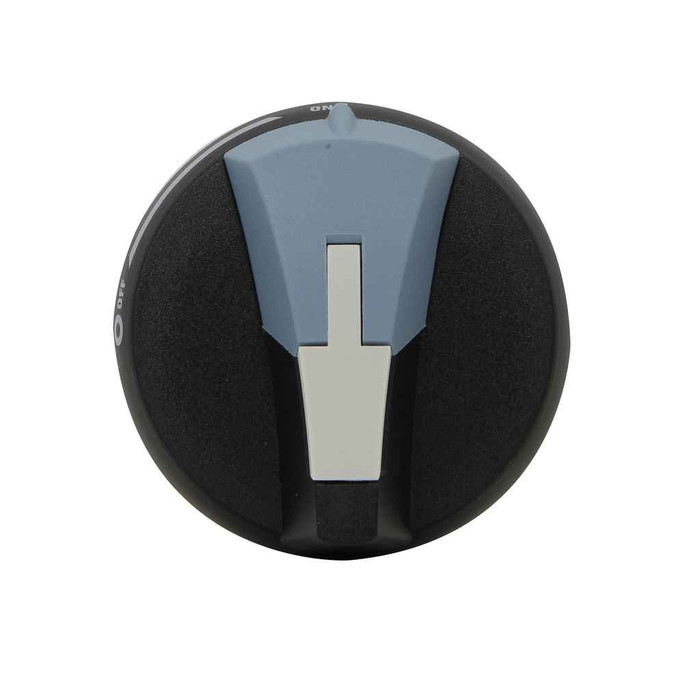

Bussmann H4X-01B External Pistol Handle, Front or Right Side-Operated, Padlockable
The Bussmann H4X-01B is an external pistol handle designed for front-operated or right side-operated mounting on disconnect switches. Built with a short handle profile, this handle is padlockable and defeatable for lockout/tagout safety, and is compatible with disconnect switches rated 30A, 60A, and 100A. It works with NEMA 1, 3R, 4, 4X, and 12 disconnect switch enclosures for both indoor and outdoor applications.
Key Features
- Mounting Configuration: Front-operated or right side-operated design for flexible disconnect switch installation.
- External Handle: External mounting keeps the operating handle accessible outside the enclosure.
- Short Handle Profile: Compact short handle design for tight installation clearances.
- Padlockable: Accepts a padlock for lockout/tagout safety procedures.
- Defeatable: Defeatable feature supports maintenance and testing operations.
- Amperage Compatibility: Rated for use with 30A, 60A, and 100A disconnect switches.
- NEMA Compatibility: Works with NEMA 1, 3R, 4, 4X, and 12 disconnect switches for indoor and outdoor use.
- Finish: Black color.
Certifications & Compliance
- RoHS Compliant
Technical Specifications
- Amperage Rating: 30A, 60A, and 100A
- Special Features: External, Short handle, Padlockable, Defeatable
- Used With: Used with NEMA 1, 3R, 4, 4X, and 12 disconnect switches
- Product Length: 2.79 IN
- Product Color: Black
- Product Height: 2.75 IN
- Product Weight: .2 LB
- Product Width: 1.86 IN
- Product Type: Operating Handle
Typical Applications
- Commercial and Industrial Disconnect Switch Installations
- NEMA-Rated Enclosure Applications, Indoor and Outdoor
- Electrical Panel and Disconnect Switch Retrofits
- Lockout/Tagout Safety Procedures
- Front- or Side-Panel Mounted Disconnect Operation
Why Bussmann?
Bussmann engineers this pistol handle for reliable, code-compliant operation on disconnect switches across a wide range of amperage and NEMA enclosure ratings. The padlockable, defeatable design supports safe lockout/tagout practices, and RoHS compliance reflects Bussmann's commitment to responsible manufacturing for professional electrical work.
Manufacturer Resources
Product Specs
- Special Features:
- External, Short handle, Padlockable, Defeatable
- Product Weight:
- .2 LB
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Type:
- Operating Handle
- Amperage Rating:
- 30A, 60A, and 100A
- Product Subgroup:
- Circuit Breakers
