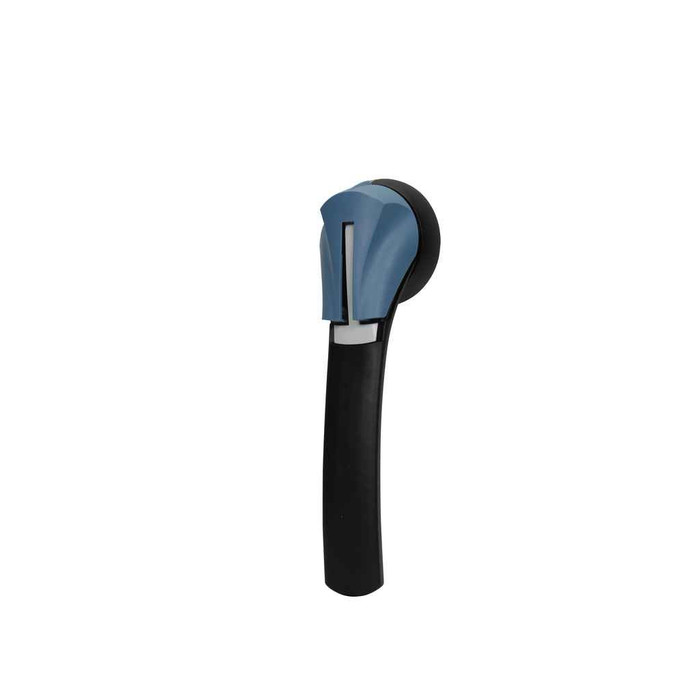

Bussmann H4X-07B Front-Operated Pistol Handle, 600A/800A Rated
The Bussmann H4X-07B is a front-operated pistol handle designed for external mounting on compatible disconnect switches, allowing safe operation without opening the enclosure door. It is rated for use with 600A and 800A disconnect switches and is compatible with NEMA 1, 3R, 4, 4X, and 12 enclosures. The padlockable, defeatable design supports lockout/tagout procedures for commercial and industrial electrical installations, and the handle is RoHS compliant.
Key Features
- Front-Operated Design: Pistol-style handle enables external operation of the disconnect switch from outside the enclosure.
- Amperage Compatibility: Rated for use with 600A and 800A disconnect switches.
- Padlockable: Accepts a padlock for lockout/tagout safety compliance during maintenance and service.
- Defeatable: Defeatable interlock design permits authorized override when required.
- Broad Enclosure Compatibility: Compatible with NEMA 1, 3R, 4, 4X, and 12 disconnect switch enclosures for indoor, outdoor, washdown, and corrosive-duty environments.
- Black Finish: Durable black finish for long-lasting appearance and easy identification.
- Compact Dimensions: Measures 1.69 in length x 1.84 in width x 1 in height and weighs 1.16 lb.
Certifications & Compliance
- RoHS Compliant
Technical Specifications
- Amperage Rating: 600A, 800A
- Special Features: External, Padlockable, Defeatable
- Used With: Used with NEMA 1, 3R, 4, 4X, and 12 disconnect switches
- Product Length: 1.69 IN
- Product Color: Black
- Product Height: 1 IN
- Product Weight: 1.16 LB
- Product Width: 1.84 IN
- Product Type: Operating Handle
Typical Applications
- Disconnect Switch Lockout/Tagout Operations
- Commercial and Industrial Electrical Disconnects
- External Operation of Panelboard and Switch Enclosures
- Wet, Corrosive, and Washdown Locations (NEMA 4, 4X, 12)
- Renovation and New Construction Electrical Installations
Why Bussmann?
Bussmann is a recognized name in electrical protection and switch components, and the H4X-07B operating handle reflects that standard with a RoHS-compliant, padlockable, defeatable design built for reliable external operation of disconnect switches. Its compatibility across NEMA 1, 3R, 4, 4X, and 12 enclosures makes it a versatile, code-compliant choice for electricians and facility teams standardizing on safety-focused hardware.
Manufacturer Resources
Product Specs
- Department:
- Electrical
- Used With:
- Used with NEMA 1, 3R, 4, 4X, and 12 disconnect switches
- Product Height:
- 1 IN
- Product Type:
- Operating Handle
- Special Features:
- External, Padlockable, Defeatable
- Product Group:
- Wiring Devices
- Amperage Rating:
- 600A, 800A
- Product Subgroup:
- Circuit Breakers
