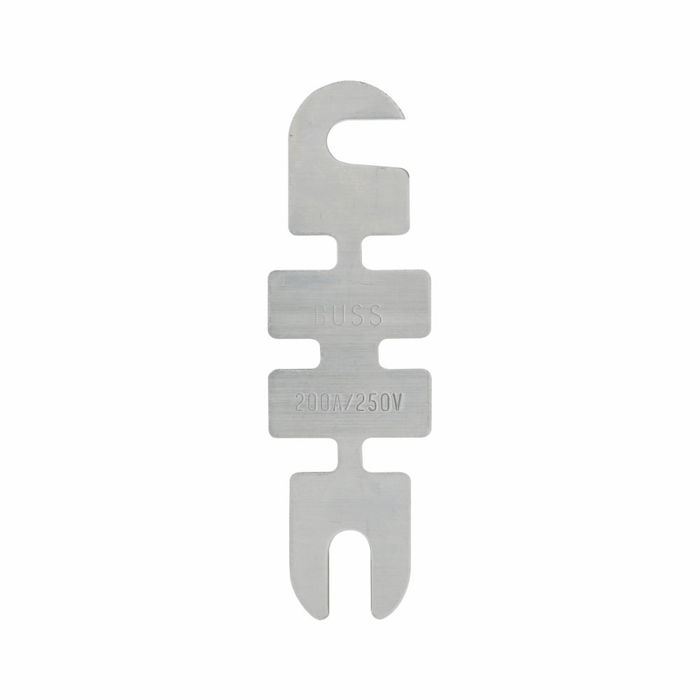

Bussmann LKN Renewable Fuse Link for REN, 250V

Bussmann LKN Renewable Fuse Link for REN, 250V

(No reviews yet) Write a Review

Model: LKN-350

In Stock (leaves warehouse same day if ordered before 3pm ET)

$201.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann LKN Renewable Fuse Link for REN, 250V

The Bussmann LKN Renewable Fuse Link is designed as a replacement element for REN-type, 250V renewable fuseholders used in industrial and commercial electrical distribution equipment. As a non-current-limiting, renewable fuse link, the LKN allows the internal fusible element to be replaced after an overcurrent event rather than discarding the entire fuseholder assembly, helping maintenance crews restore circuits quickly and cost-effectively. This family is available in amp ratings from 5A through 600A, covering 5A, 6A, 15A, 20A, 25A, 30A, 35A, 40A, 50A, 70A, 110A, 125A, 175A, 225A, 250A, 350A, 500A, and 600A, so facilities can match the correct link to the specific branch-circuit or feeder load. Refer to the LKN-125 spec sheet for detailed dimensional and performance data on this Bussmann fuse link series.

Key Features

  • Voltage Rating: Rated 250V for use in REN-type renewable fuseholders.
  • Renewable Design: Non-current-limiting, renewable fuse link construction lets the fusible element be replaced in the field rather than replacing the entire fuse body, reducing downtime and waste.
  • Broad Amperage Range: Available in 18 amp ratings from 5A to 600A (5A, 6A, 15A, 20A, 25A, 30A, 35A, 40A, 50A, 70A, 110A, 125A, 175A, 225A, 250A, 350A, 500A, 600A) to match specific circuit load requirements.
  • REN Compatibility: Engineered as a replacement link for REN-style 250V renewable fuseholders and disconnect switches.
  • Bussmann LKN Series: Manufactured by Bussmann under the LKN model designation; see spec sheet LKN-125 for full technical detail on dimensions and ratings.
  • Field Serviceable: Non-current-limiting construction allows maintenance staff to renew the fuse element on site without sourcing an entirely new fuseholder assembly.

Technical Specifications

  • Product Type: Non Current-limiting, renewable

Typical Applications

  • Renewable Fuse Holders and Disconnect Switches
  • Industrial and Commercial Electrical Distribution Panels
  • Motor and Feeder Overcurrent Protection
  • Maintenance Replacement of Existing REN 250V Fuse Links
  • Branch-Circuit Protection in Legacy Renewable Fuse Systems

Why Bussmann?

Bussmann is a recognized name in circuit protection, and the LKN renewable fuse link continues that legacy by giving facilities a cost-effective way to restore REN 250V fuseholders to service after an overcurrent event. Choosing genuine Bussmann LKN replacement links, sized correctly from the 5A to 600A range, helps ensure the renewable fuseholder performs as intended for reliable, code-compliant overcurrent protection in professional electrical installations.

Manufacturer Resources

Product Specs

Department:
Electrical
Product Type:
Fuse Link
Voltage Rating:
250V
Amperage Rating:
5A - 600A
Configuration:
Renewable Non-Current-Limiting
Series:
LKN
Product Group:
Fuses
Product Subgroup:
Other Fuses

Bussmann LKN-350 – Frequently Asked Questions

1) Will a Bussmann LKN fuse link fit my existing REN renewable fuse holder?
The LKN link is built as the replacement element for REN-type 250V renewable fuseholders, so it drops into REN holders and the disconnect switches that use them. Match the link's amp rating to the holder's rating, and keep it on 250V circuits only.
2) Can I use a 250V LKN fuse link on a 480V circuit?
No. The LKN link is rated 250V, and it can't be used on a 480V system. Anything above 250 volts needs a fuse link rated for that system voltage in a holder rated to match.
3) Is the LKN a current-limiting fuse?
No. The LKN is non-current-limiting, renewable construction. If your equipment's short circuit current rating or the drawing calls for a current-limiting fuse (Class RK1, RK5, J, etc.), the LKN will not satisfy that requirement and you need a current-limiting cartridge fuse instead.
4) What amp ratings do Bussmann LKN renewable links come in?
LKN links run from 3A up through 600A, with steps at 3, 5, 6, 15, 20, 25, 30, 35, 40, 50, 70, 110, 125, 175, 200, 225, 250, 350, 500 and 600 amps. Part numbers follow the rating, so a 70 amp link is LKN-70 and a 600 amp link is LKN-600. The 200 amp version is ordered as LKN-200B.
5) Why replace just the fuse link instead of the whole fuse?
That's the point of a renewable design. After an overcurrent event the fusible element inside the REN holder is swapped out and the holder body goes back into service, so maintenance restores the circuit without buying a complete new fuse assembly. It's the usual approach in older industrial panels and disconnects still running renewable fuses.
6) What do I order to renew a REN fuse in a 250V motor disconnect?
You need the LKN link matched to the amp rating stamped on the existing fuse holder, and nothing else if the REN body and its contacts are sound. Typical feeder and motor sizes are stocked, for example LKN-30, LKN-60 range items like LKN-70, LKN-125 and LKN-225. Order the link only; the REN holder body is a separate item.
7) Can I mix LKN links of different amp ratings in the same three phase disconnect?
Don't. All three poles should carry the same rating link, sized to the load the circuit is protecting. The LKN family covers 5A to 600A so there's a matching link for each pole, and mismatched ratings mean one phase clears before the others.
8) Are these genuine Bussmann links or a generic equivalent?
These are Bussmann LKN series links under the manufacturer's own LKN part numbering, such as LKN-15, LKN-175 and LKN-500. For an MRO buyer standardizing spare stock across a facility, that keeps the part number on the shelf tag matching what's in the holder.
