Bussmann RES Class H Renewable...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$184.30

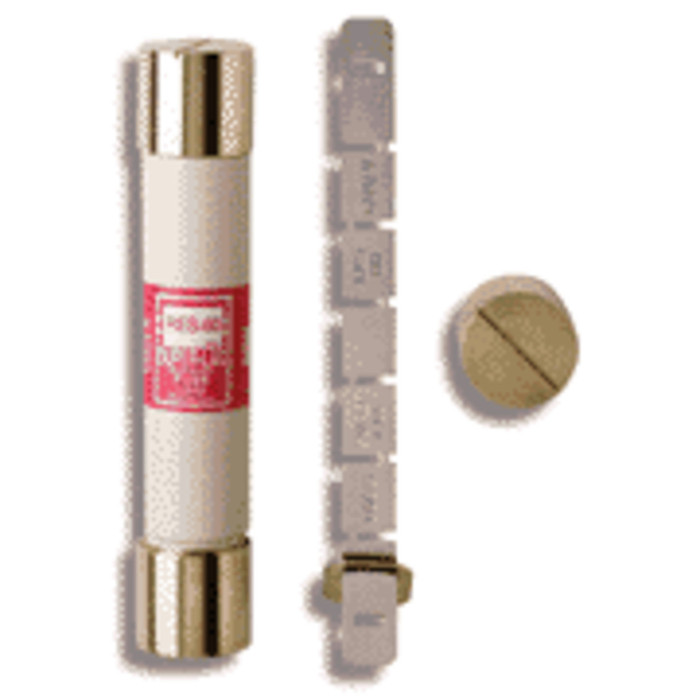

Bussmann RES Class H Renewable Fuse, 600V

Bussmann RES Class H Renewable Fuse, 600V

(No reviews yet) Write a Review

Model: RES-35

In Stock (leaves warehouse same day if ordered before 3pm ET)

$184.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann Class H Renewable Fuse, 600V

The Bussmann Class H Renewable Fuse delivers dependable circuit protection at 600V with a non current-limiting, renewable design, available in amperage ratings from 3A to 35A to match a range of medium-duty electrical circuits and equipment loads. This professional-grade fuse features standardized Class H specifications with a 10 kAIC interrupt rating at 250 Vac, giving electricians and facility teams a reliable, code-familiar overcurrent protection option for commercial and industrial panels.

Key Features

  • Amperage Rating Range: Available from 3A to 35A to provide precise overcurrent protection across medium-duty electrical circuits and equipment loads.
  • 600V Voltage Rating: Supports high-voltage applications with reliable performance across commercial and industrial installations.
  • Class H Design: Ensures standardized dimensions and performance characteristics for consistent system integration with existing fuse holders and panels.
  • 10 kAIC Interrupt Rating: Delivers dependable fault current interruption capability at 250 Vac for enhanced safety during overcurrent events.
  • Renewable Construction: Allows for cost-effective maintenance and element replacement while maintaining protection integrity over the life of the installation.
  • Non Current-Limiting Type: Provides traditional fuse protection characteristics suitable for specific circuit requirements and legacy system compatibility.
  • Non-Indicating Fuse Body: Standard non-indicating construction keeps the fuse straightforward to stock and install across multiple panel types.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Commercial Electrical Panel Protection Systems
  • Industrial Motor Control Centers and Distribution Panels
  • HVAC Equipment Overcurrent Protection
  • Lighting Circuit Protection in Commercial Facilities
  • Manufacturing Equipment Electrical Protection
  • Electrical Contractor Maintenance and Replacement Projects

Why Bussmann?

Bussmann renewable fuses are built to standardized Class H specifications, giving contractors and maintenance teams a consistent, code-familiar option for overcurrent protection across a range of amperage ratings. The renewable, non current-limiting construction supports cost-effective maintenance, while the 10 kAIC interrupt rating at 250 Vac and 600V rating support reliable, code-compliant performance for professional electrical work.

Manufacturer Resources

Product Specs

Packaging Type:
Standard
Department:
Electrical
Fuse Indicator:
Non Indicating
Class:
Class H
Voltage Rating:
600V
Product Type:
Renewable Fuse
Interrupt Rating:
10 kAIC at 250 Vac
Amperage Rating:
3A - 35A
Standards:
Class H
Configuration:
Non-Current-Limiting
Product Group:
Circuit Protection
Product Subgroup:
Fuses

Bussmann RES-35 – Frequently Asked Questions

1) Will a Bussmann RES renewable fuse fit my existing Class H fuse holder?
Yes, as long as the holder is Class H and rated 600V. The RES is built to Class H dimensions, so it drops into standard Class H clips and blocks of the same voltage and amp rating. Note that a 600V Class H fuse body is physically longer than a 250V Class H fuse of the same amperage, so a 600V RES will not seat in a 250V holder.
2) Is a 10 kAIC interrupting rating enough for my panel?
The RES is rated 10 kAIC at 250 Vac. If the available fault current at your equipment exceeds that, or the equipment short-circuit current rating requires a higher AIC, this fuse is not the right choice. Many modern service and motor control applications call for 100 kAIC current-limiting protection, which means a Class RK5, RK1 or Class J fuse instead of Class H.
3) Class H versus Class RK5, which should I use for motor and HVAC circuits?
Class H like the RES is non current-limiting, so it clears a fault without cutting let-through energy the way a current-limiting fuse does. It is the code-familiar choice for older panels already built around Class H, and for general lighting and equipment branch circuits. If you need current limitation for equipment SCCR, or a time-delay characteristic that rides through motor inrush, go to an RK5 dual-element fuse, which fits the same Class H holder in a rejection-style or standard clip.
4) What does renewable mean on a Bussmann RES fuse, and can I really reuse the body?
Renewable means the fuse body takes a replaceable link. When the element opens, you replace the link rather than scrapping the whole fuse, which is why maintenance shops stocked them for legacy panels. The RES is non-indicating, so there is no window or pop-out pin telling you which one blew, you have to test it.
5) Can I use the 600V RES fuse on a 240V or 120V circuit?
Yes. A fuse may be applied at or below its voltage rating, so a 600V RES works on 480V, 240V and 120V systems. Be aware the interrupting capability published for the RES is 10 kAIC at 250 Vac, so verify available fault current against that figure before applying it on a higher-voltage system.
6) I'm standardizing fuse stock across a building. Is the RES a good fleet item?
It works where the panels are already Class H, 600V, and the fault current is within 10 kAIC. Because Class H dimensions are standardized, one amp rating covers every holder of that size across the site, and the RES ships in standard packaging rather than a special pack. Where you have newer gear with a stated short-circuit current rating, you will need a current-limiting class instead, so expect to carry two families rather than one.
7) How do I order the exact RES fuse I need?
The part number carries the amperage: RES-3 is the 3 amp, RES-5 the 5 amp, RES-35 the 35 amp. Amperage is the only option to specify, everything else on the RES is fixed at 600V, Class H, non-indicating, non current-limiting.
How fast can I get the Bussmann RES-35 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Bussmann RES-35 come with a warranty?
Absolutely. The Bussmann RES-35 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Bussmann RES-35?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
