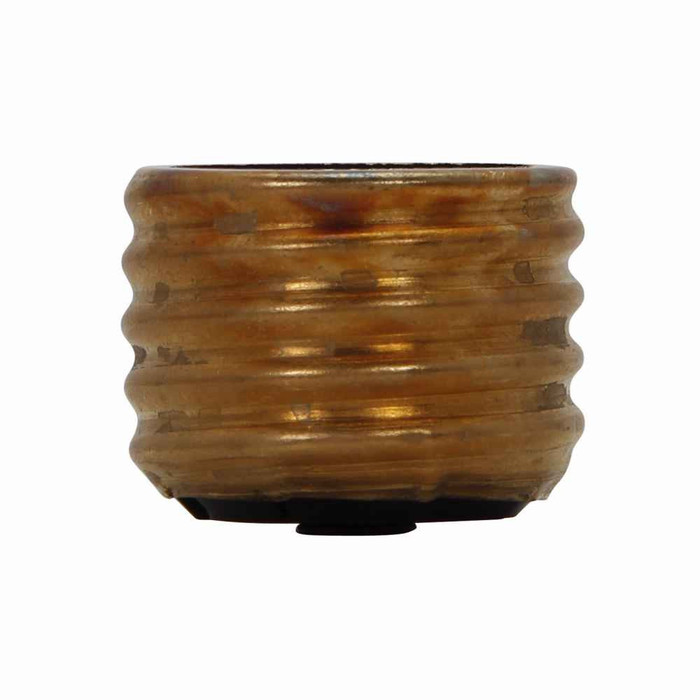

Bussmann SA Edison Base Fuse Adapter, Industrial/Commercial Grade, 125V
The Bussmann SA Edison Base Fuse Adapter delivers dependable overcurrent protection for small motor and plug fuse installations, engineered for a 125V voltage rating shared across the entire family and available in an amperage range from 2A to 8A. This industrial/commercial grade adapter features a standard Edison base design engineered for use with S-5 to S-3-1/2 fuses, giving electricians and maintenance technicians flexible, code-ready protection options for small motors and plug fuse holders in demanding commercial and industrial electrical environments. Its compact, threaded housing installs directly into existing Edison-base fuse holders, simplifying upgrades and retrofits without modifying the panel or enclosure.
Key Features
- Amperage Options: Available in 2A, 3.2A, 4A, 5A, and 8A ratings, allowing precise overcurrent protection to be matched to the specific small motor or circuit being protected.
- 125V Voltage Rating: Designed for standard residential and light commercial voltage applications with reliable, consistent performance.
- Edison Base Design: Standard threading ensures secure installation and easy replacement in compatible fuse holders and panels.
- Industrial/Commercial Grade Construction: Built to withstand demanding environments with enhanced durability and long-term reliability.
- S-5 to S-3-1/2 Fuse Compatibility: Accommodates multiple fuse sizes for flexible protection solutions across a variety of applications.
- Compact Dimensions: Measures 1.2" x 1.2" x 0.83" and weighs approximately 0.3 lb, fitting easily into space-constrained electrical enclosures and control panels.
- Simple Retrofit Installation: Threads directly into existing Edison-base fuse holders, allowing fast replacement without rewiring or panel modification.
Technical Specifications
- Refer to manufacturer documentation for complete specifications.
Typical Applications
- Small Motor Protection Systems
- Industrial Control Panels
- Commercial Electrical Installations
- Manufacturing Equipment Protection
- HVAC System Components
- Maintenance and Retrofit Projects
Why Bussmann?
Bussmann delivers trusted electrical protection solutions with industrial/commercial grade construction designed for demanding applications. The SA Edison base fuse adapter provides reliable performance across its full 2A to 8A rating range at 125V, ensuring professional-grade, code-compliant overcurrent protection for critical electrical systems in industrial and commercial facilities. Its Edison base compatibility and rugged construction make it a practical choice for maintenance teams standardizing on a single adapter platform across multiple protection levels.
Manufacturer Resources
Spec Sheet
Product Specs
- Application:
- Small motor protection, plug fuse installations
- Department:
- Electrical
- Voltage Rating:
- 125V
- Product Type:
- Fuse Adapter
- Special Features:
- industrial/commercial grade
- Base:
- Edison
- Product Group:
- Circuit Protection
- Product Subgroup:
- Fuse Holders & Blocks
Bussmann SA-2 – Frequently Asked Questions
1) What does the Bussmann SA fuse adapter actually do in an Edison base fuse holder?
The SA adapter threads into a standard Edison base fuse holder and converts it to accept Type S plug fuses. Once it is installed it cannot be backed out, so the holder will only take an S fuse of the matching amp rating from then on. That is how you get rejection-type fusing on an older Edison socket without touching the panel wiring or the enclosure.
2) Which amp rating of the Bussmann SA adapter should I order?
Order the adapter to match the fuse amperage you intend to run, because each one only accepts its own size class. Five ratings are offered: 2A (SA-2), 3.2A (SA-3-2/10), 4A (SA-4), 5A (SA-5), and 8A (SA-8). Size it to the small motor or branch circuit being protected, not to the holder.
3) Are fuses included with the Bussmann SA adapter, or do I have to buy them separately?
The SA is the adapter only. You still need the Type S plug fuses to go in it, in the S-5 through S-3-1/2 sizes the adapter is built for, at the amperage matching the adapter you chose. Budget both lines on the order.
4) Will a 125V fuse adapter work on my 120V circuit?
Yes. The SA adapter carries a 125V rating, which covers standard 120V branch circuits and light commercial loads. Do not use it above that rating.
5) I manage a building with old Edison-base fuse panels. Can I standardize all the units on one adapter?
Partly. The SA family gives you one adapter platform across five protection levels, all Edison base and all 125V, so your stock is a single part family. But you order a different adapter per amp rating (2A through 8A), so standardizing means settling on the amperages your circuits actually need and stocking those.
6) Is the Bussmann SA suitable for industrial small motor circuits, or is it a residential part?
It is built as an industrial/commercial grade adapter, and its stated application is small motor protection and plug fuse installations. Typical spots are industrial control panels, manufacturing equipment, and HVAC components. The limit is the 125V rating, so it is for 120V class circuits only, not 240V motor branch circuits.
7) Can I remove a Bussmann SA adapter later if I want to go back to Edison fuses?
Plan on it being permanent. Type S adapters are designed to lock into the Edison socket so the circuit cannot be re-fused with an oversized Edison plug fuse. Pick the amp rating deliberately, since changing it means replacing the fuse holder rather than swapping the adapter.
