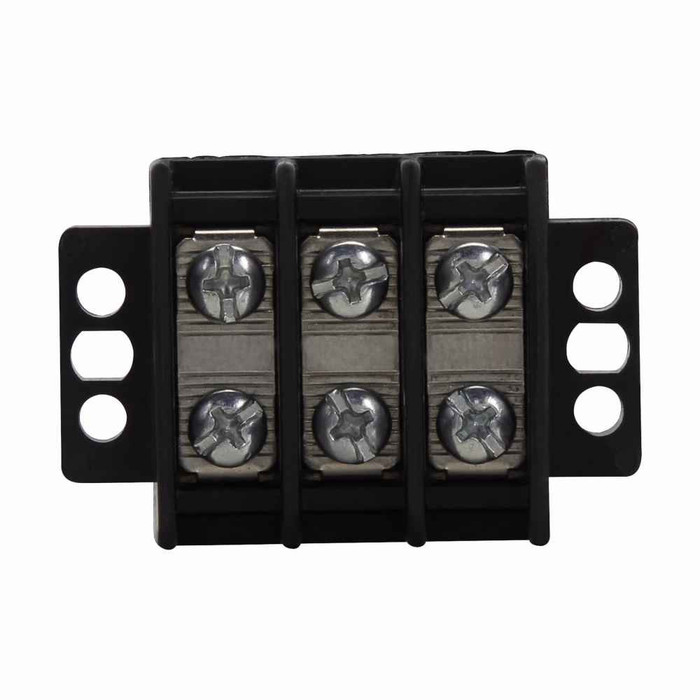

Bussmann TB200HB High-Barrier Terminal Block Connector, 3-Pole, 30A
The Bussmann TB200HB is an Eaton Bussmann TB200 series panel mount terminal block connector engineered for high-barrier pole-to-pole separation in demanding electrical control applications. Rated 30A with a 600V working voltage and a 4800V breakdown voltage, this three-pole block features a molded thermoplastic base, tin-plated brass terminals, and stainless steel SEMS philslot screws for secure, corrosion-resistant wire termination. The TB200 series is available in multiple style configurations (BS, P, SS, ST, STQC) to match a range of panel mount connection requirements, from basic barrier styles to quick-connect variants, all built on the same rugged TB200 platform.
Key Features
- Amperage Rating: 30A rated for dependable performance in panel mount control circuits.
- High-Barrier Design: Raised insulating barriers between poles increase creepage and clearance distance for added dielectric safety.
- Voltage Rating: 600V working voltage with a 4800V breakdown voltage rating for robust dielectric strength.
- Three-Pole Configuration: Supports multi-circuit panel mount wiring in a compact footprint.
- Durable Base Construction: Molded thermoplastic base resists heat and mechanical stress in control panel environments.
- Tin-Plated Brass Terminals: Corrosion-resistant conductive terminals maintain reliable connections over time.
- Stainless Steel SEMS Philslot Screws: Captive slotted hardware speeds wire termination and prevents lost screws during installation.
Technical Specifications
- Product Length Depth: 2.51 IN
- Amperage Rating: 30A
- Center Spacing: 0.437 in
- Product Weight: .5 LB
- Product Height: .75 IN
- Operating Temperature: -40° to 130°C
- Torque Rating: 9 lb-in
- Product Width: 1.37 IN
Typical Applications
- Industrial Control Panels
- Panelboard and Load Center Wiring
- Motor Control and Distribution Circuits
- OEM Equipment Wiring
- Commercial and Industrial Electrical Installations
Why Bussmann?
Bussmann by Eaton engineers terminal block connectors for panel builders and electrical professionals who need dependable, code-ready connections. The TB200HB pairs a molded thermoplastic base with tin-plated brass terminals and stainless steel SEMS philslot hardware to deliver corrosion-resistant, high-barrier performance rated to 4800V breakdown voltage. Choose Bussmann for consistent quality across panel mount terminal block installations, backed by the trusted Eaton Bussmann name.
Manufacturer Resources
Product Specs
- Product Details:
- High barrier
- Product Length Depth:
- 2.51 IN
- Amperage Rating:
- 30A
- Product Color:
- Black
- Center Spacing:
- 0.437 in
- Voltage Rating:
- 600V
- Department:
- Electrical
- Product Subgroup:
- 0
- Product Weight:
- .5 LB
- Product Height:
- .75 IN
- Operating Temperature:
- -40° to 130°C
- Product Group:
- 0
- Torque Rating:
- 9 lb-in
- Special Features:
- Breakdown voltage 4800V
- Product Type:
- Terminal Block Connector
- Product Width:
- 1.37 IN
- Product Material:
- Molded Thermoplastic
- Product Finish:
- Tin-Plated
- Configuration:
- 3-Pole
- Series:
- TB200
