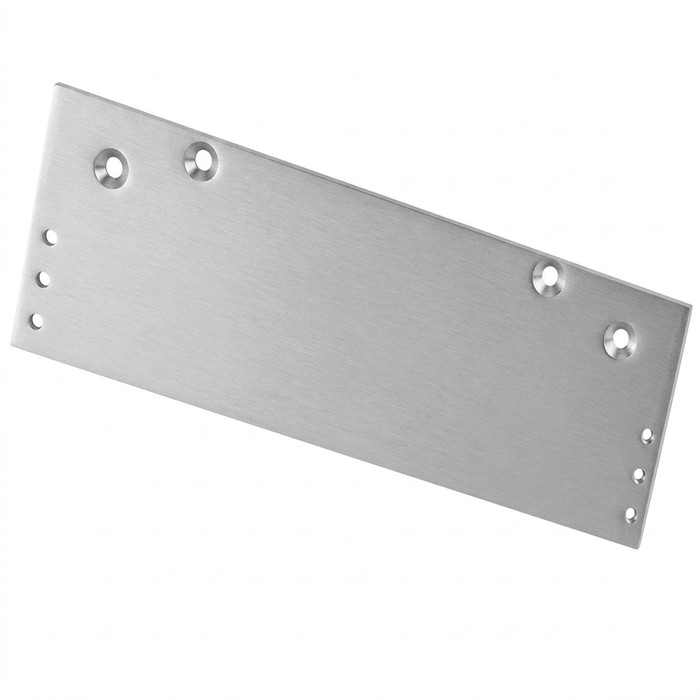

Cal-Royal Cal-Royal 950 Flat Drop Bracket for 900 Series CAL-950

Cal-Royal 950 Flat Drop Bracket for 900 Series Door Closers

(No reviews yet) Write a Review

Model: 950-ALUM
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$24.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal 950 Flat Drop Bracket for 900 Series Door Closers

The Cal-Royal 950 Flat Drop Bracket is a non-handed mounting accessory engineered for hinge-mount installations of the 900 Series door closer line where the top rail measures less than 3 ½". This surface-mounted bracket allows the plate to accommodate a minimum head frame of 1 ¾", making it an essential component for door frame configurations that would otherwise be incompatible with standard hinge-side mounting. Built for commercial door control applications, the 950 bracket is available in powder coat finishes to complement existing door hardware. As a purpose-built part within the Door Controls product group, this accessory ensures proper closer function and alignment on narrow top rail doors.

Key Features

  • Minimum Top Rail Clearance: Required for hinge mount applications where the top rail is less than 3 ½", enabling proper closer installation on narrow-rail doors.
  • Minimum Head Frame Requirement: Plate requires a 1 ¾" minimum head frame for secure and stable mounting.
  • Non-Handed Design: Universal orientation simplifies inventory management and installation, fitting either door swing direction.
  • Flat Drop Bracket Profile: Low-profile flat design maintains a clean appearance while providing the offset needed for proper closer alignment.
  • Finish Options: Available in powder coat finishes to match surrounding door hardware and frame aesthetics.
  • Surface Mounted Construction: Designed as a surface-mounted accessory for straightforward integration with 900 Series door closer installations.

Technical Specifications

  • Subcategory: Surface Mounted
  • Product Group: Door Controls
  • Product Subgroup: Parts and Accessories
  • Product Type: Parts and Accessories
  • Commercial/Residential: Commercial
  • Product Model: 950
  • Product Category: Door Controls
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Cal-Royal 950?

Cal-Royal 950 accessory hardware is designed to solve real installation challenges, such as narrow top rail conditions that prevent standard hinge-mount closer installation. This non-handed flat drop bracket delivers a reliable, purpose-built solution backed by Cal-Royal's commitment to durable commercial door control components. Choosing the correct bracket ensures proper closer function and long-term performance for 900 Series installations.

Product Specs

Subcategory:
Surface Mounted
Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Product Type:
Parts and Accessories
Commercial/Residential:
Commercial
Product Model:
950
Product Category:
Door Controls
Department:
Door Hardware

Cal-Royal 950-ALUM – Frequently Asked Questions

1) Is the Cal-Royal 950 a replacement closer arm or just a mounting plate?
It's a mounting plate, not an arm. The 950 is a surface mounted flat bracket that carries the closer body; the arm and shoe are separate parts of the 900 Series closer itself. If what you actually need is an arm assembly, that's a different accessory class entirely, like the Deltana DCCA4041 cushion arm for the DC40 closer or the Deltana DCHA1050 hold open arm for the DC10.
2) Can I use the Cal-Royal 950 bracket on a top jamb or parallel arm installation?
The 950 is specified for hinge mount installations of the 900 Series closer. Top jamb and parallel arm mountings put the closer on the frame face or the push side and use their own brackets and shoes, so a hinge-side drop plate isn't the part for those.
3) Do I need to order a left hand and a right hand version of the Cal-Royal 950 bracket for a pair of doors?
No. The Cal-Royal 950 flat drop bracket is non-handed, so one part number covers either swing direction and a single stock item serves both leaves of a pair. That differs from handed accessories in the closer world, where handing has to be specified per opening - for example the Norton Rixson 28 Series and 328 Series floor closers are single acting while the 30 Series is double acting, so the door swing dictates which one is ordered. For the 950, the only ordering choice is finish, which includes US26 polished chrome, US3 polished brass, aluminum, black, duronodic, and gold in powder coat.
4) Will a closer arm work in place of the Cal-Royal 950 bracket?
No - an arm and a bracket are different parts of the installation. The Cal-Royal 950 is a surface-mounted, non-handed mounting plate that repositions where the 900 Series closer body attaches. Arms such as the Deltana DCCA4041 cushion arm for the DC40 closer, the Deltana DCHA1050 hold open arm for the DC10 closer, and the Dorma 15323 1-1/2 inch offset bottom arm connect the closer to the door or frame and change how the door behaves, not where the closer mounts. If the top rail is too narrow to land the closer, the bracket is the part required; an arm will not create that clearance.
5) Is the Cal-Royal 950 bracket suitable for a fire rated opening?
The 950 flat drop bracket is a commercial door control mounting accessory, and on a fire rated opening the listing that governs is the one carried by the closer assembly it is installed with, not by the bracket alone. Among door control accessories, fire and life safety intent is called out at the part level when it applies - the LCN 4040SE-3038 is a standard track for fire and life safety door closers in the 4040SE Series, while the Dorma 15323 offset bottom arm is standard duty with no fire rating. Confirm the 900 Series closer and its complete mounting assembly are approved for the opening before specifying the bracket on a labeled door.
6) What finishes does the Cal-Royal 950 flat drop bracket come in?
Six powder coat finishes: US26 polished chrome, US3 polished brass, aluminum, black, duronodic, and gold. Duronodic and aluminum are the two that usually match dark bronze and clear anodized storefront frames, so those are the ones to reach for on aluminum entrances.
7) Is the Cal-Royal 950 drop bracket rated for commercial traffic doors?
Yes, it's a commercial door control component, used on office buildings, schools, hospitals, retail, warehouses, multi-tenant residential and municipal buildings. It's a structural mounting part rather than a wear item, so the duty question really lands on which 900 Series closer you pair it with.
