Cal-Royal Cal-Royal AUS00 Entrance/Office Grade 3 Lever Lock AUS00

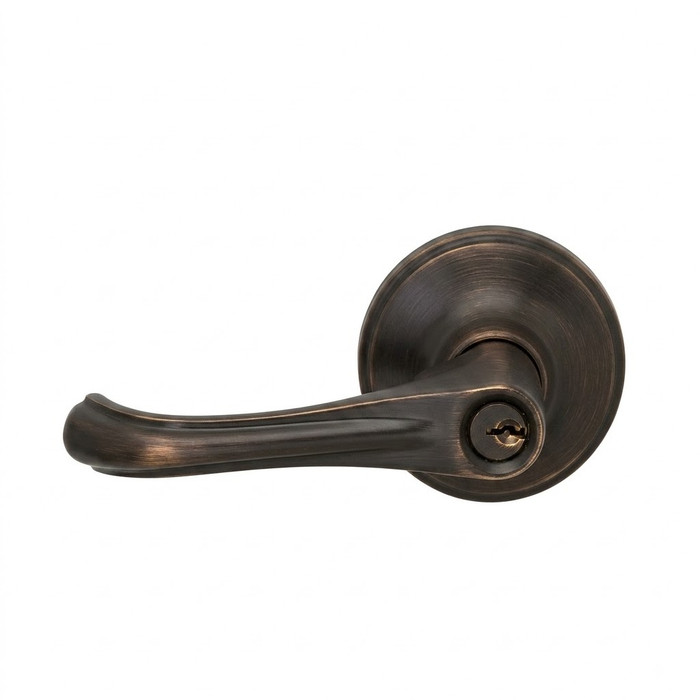

Cal-Royal AUS00 Entrance/Office Grade 3 Lever Lock with Solid Brass Forged Body

(No reviews yet) Write a Review

Model: AUS00-5
Selected Finish is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$32.48
$31.42
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal AUS00 Entrance/Office Grade 3 Lever Lock with Solid Brass Forged Body

The Cal-Royal AUS00 is a Grade 3, ANSI Standard A156.2 light duty handleset engineered for Entrance/Office applications on wood and metal doors. Featuring an all metal body with all solid brass forged construction and a solid filled handle grip, this cylindrical lockset offers a 2 '/' or 2 '/' backset, 1" x 2 '/'" round corner size, and fits door thickness ranges of 1-3/8" to 1-3/4". It is single cylinder keyed, with both sides locked or unlocked by key outside or push button inside, making it a reliable commercial entrance/office solution.

Key Features

  • Door Thickness Compatibility: Designed for doors ranging from 1-3/8" to 1-3/4" thick.
  • Backset & Bore Specifications: 2 '/' or 2 '/' backset with 1" x 2 '/'" round corner standard, 1" bore diameter for latch and 2 '/'" diameter for lock housing.
  • Strike Compatibility: Round corner full lip strike measuring 1 '/'" x 2 '/'", with optional T-strike; round corner deadbolt strike 1" x 2 '/'" also available.
  • Heavy-Duty Construction: All metal body and parts with all solid brass forged body and solid filled handle grip for lasting durability. Substrate is wrought brass, bronze or stainless steel, with levers of zinc casting plated to match trim finish.
  • Keying Flexibility: "KW" 5-pin Kwikset keyway standard, re-keyable for master and construction keying, with Weiser and Schlage "C" keyway available on special factory request.
  • Reversible Handing: Reversible for right and left handed doors, except Mayfair.
  • Interior/Exterior Operation: Non-locking knob or lever operates latch from interior; thumb piece operates handleset latch from exterior. Interior leverset available in Chelsie Series, with strikes and latchbolts same as knob and leversets.
  • Finish Options: Available in architectural finishes for design flexibility.

Certifications & Compliance

  • Grade 3, ANSI Standard A156.2, Light Duty Handlesets
  • 5 Year Finish Warranty
  • 25 Year Mechanical Warranty

Technical Specifications

  • Subcategory: Cylindrical Leversets
  • Product Group: Mechanical Locks
  • Function Description: Both sides locked or unlocked by key outside or push button inside
  • Keyed Function: Single Cylinder
  • Product Subgroup: Bored Locksets
  • Keyed: Yes
  • Commercial/Residential: Commercial
  • Lock Function: Entrance/Office
  • Cross Bore: 1"
  • Product Attribute: Cylindrical Locks
  • Product Model: AUS00
  • Product Function: Entrance/Office
  • Door Thickness Range: 1-3/8" to 1-3/4"
  • Door Strike: Round Corner Full Lip, 1-3/4" x 2-1/4"
  • Product Category: Mechanical Locks
  • Product Substrate: Wrought Brass, Bronze or Stainless Steel, levers are Zinc casting, plated to match trim finish.
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Cal-Royal AUS00?

Cal-Royal AUS00 mechanical locks deliver dependable, commercial-grade performance backed by an all solid brass forged body, metal parts throughout, and ANSI Grade 3 compliance. Engineered for entrance and office applications on wood and metal doors, this lockset's reversible handing and re-keyable cylinder provide flexibility that facilities professionals can rely on for demanding daily use.

Product Specs

Subcategory:
Cylindrical Leversets
Product Group:
Mechanical Locks
Function Description:
Both sides locked or unlocked by key outside or push button inside
Keyed Function:
Single Cylinder
Grade:
Grade 3
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Commercial/Residential:
Commercial
Handle Type:
Lever
Lock Function:
Entrance/Office
Cross Bore:
1"
Product Attribute:
Cylindrical Locks
Product Model:
AUS00
Product Function:
Entrance/Office
Door Thickness Range:
1-3/8" to 1-3/4"
Door Strike:
Round Corner Full Lip, 1-3/4" x 2-1/4"
Product Category:
Mechanical Locks
Product Substrate:
Wrought Brass, Bronze or Stainless Steel, levers are Zinc casting, plated to match trim finish.
Department:
Door Hardware

Cal-Royal AUS00-5 – Frequently Asked Questions

1) Will the Cal-Royal AUS00 lever lock fit a 1-3/8 inch door, or is it only for 1-3/4?
Both. The AUS00 covers a door thickness range of 1-3/8 inch to 1-3/4 inch, so it works on standard 1-3/4 inch commercial doors and on the thinner 1-3/8 inch interior doors common in older buildings. It goes on wood or metal doors.
2) Do I need to order the Cal-Royal AUS00 handed for a left or right door?
No. The AUS00 is reversible for right and left hand doors, so one part number covers either swing and you set it at install. Handing is not an ordering decision here.
3) What keyway does the Cal-Royal AUS00 use, and can I key it into my existing system?
Standard is a 5-pin Kwikset KW keyway, and the cylinder is re-keyable for master keying and construction keying. Weiser and Schlage C keyways are available on special factory request. If your building is already keyed in Schlage C, ask for that keyway rather than trying to adapt the standard cylinder.
4) What is the closest equivalent to the Cal-Royal AUS00 lever lock in Entrance/Office function?
The Falcon B511CP6D is the nearest match in function: it is a cylindrical lever lock with an Entry/Office function, rated ANSI Grade 2 and medium duty. The Cal-Royal AUS00 is an Entrance/Office cylindrical lever lock at ANSI Grade 3, single cylinder keyed, with both sides locked or unlocked by key outside or push button inside. If you are standardizing a building on one office function and want a heavier duty rating, the Falcon sits a grade above; if you are matching the AUS00's Grade 3 offices, the Cal-Royal is the direct pick.
5) What should I use instead of the Cal-Royal AUS00 on a door thicker than 1-3/4 inch?
The Cal-Royal AUS00 covers doors 1-3/8 inch to 1-3/4 inch thick. For a thicker leaf, the Deltana 6201 Manchester, 6411 Morant and 6431 Linstead entry levers all list 1-3/8 inch to 2 inch, and the Hager 2525 Grade 2 commercial entry lever also covers 1-3/8 inch to 2 inch. The Falcon K101 goes further at 1-3/8 inch to 2-1/4 inch, but it is a passage function and will not key.
6) Can I get several Cal-Royal AUS00 locks keyed alike for one building?
Yes. Keying is a required selection at order: keyed different or keyed alike. Keyed alike puts every lock in the group on one key, which is what you want for a suite of doors served by the same tenant or staff. Keyed different gives each opening its own key.
7) I need a Grade 3 keyed entry lever for apartment doors. What else is comparable to the Cal-Royal AUS00?
Two close peers in the same grade and function: the Callan Artino Grade 3 entrance leverset, and the Master Lock BC Series RL Series Grade 3 return style keyed entry lockset. If the opening also needs a deadbolt, the Callan Bennett Grade 3 entrance leverset ships as a deadbolt combo. The AUS00's differentiator against those is the solid brass forged body and the KW keyway that re-keys into an existing Kwikset system.
8) I want matching non-locking levers on the interior doors to go with the Cal-Royal AUS00. What do I use?
Cal-Royal's interior leverset for this family is the Chelsie Series, and the strikes and latchbolts are the same as the knob and leversets, so the door and frame prep carries across the building. That keeps one prep and one strike spec on every opening whether the door is keyed or not.
9) Is a passage lever like the Arrow GL01 a substitute for the Cal-Royal AUS00?
No. The Arrow GL01 is a non-keyed Grade 2 passage function cylindrical lock with a Sierra lever, so it latches but never locks. The Cal-Royal AUS00 is keyed, single cylinder, and locks or unlocks both sides by key outside or push button inside. Use a passage lever such as the GL01 on corridor and closet doors and the AUS00 where the door has to secure. The GL01 also covers doors 1-3/4 inch to 2 inch thick, while the AUS00 covers 1-3/8 inch to 1-3/4 inch.
10) We want a keyless entry lever instead of the keyed Cal-Royal AUS00. What are the options?
The Cal-Royal AUS00 is a single cylinder keyed Entrance/Office lever with a Kwikset KW 5-pin keyway standard. If you would rather manage codes than keys, the Delaney LP250 is a Grade 2 electronic keypad leverlock, the Emtek Classic Keypad Leverset is a keypad lever in the Classic series, and the Lockey 2835 is a mechanical pushbutton keyless lever lock that is ADA compliant and fits doors 1 3/16 inch to 2 inch. Keypad units change the key control conversation entirely, so confirm how the opening is being rekeyed or mastered before you swap.
11) What is the difference between the Cal-Royal AUS00 and a classroom function lever like the Dexter C1000?
Function, not just grade. The Dexter C1000 Classroom is a Grade 1 clutching keyed classroom lever fitting doors 1-3/8 inch to 1-3/4 inch, and the C1000 Classroom Security version adds classroom security function over the same thickness range. Classroom function is keyed from the outside only and does not carry an inside pushbutton. The Cal-Royal AUS00 is Entrance/Office, where both sides are locked or unlocked by key outside or push button inside, which is what an office occupant expects to be able to do from the inside.
12) Can I use the Cal-Royal AUS00 on a fire rated opening, or do I need something else?
For openings where a fire rating is called out on the drawing, look to a lock that carries one: the Corbin Russwin CL3110 is a Grade 1 vandal resistant cylindrical lever with a fire rating, and the Falcon K101 is a Grade 1 passage lever that also lists a fire rating. Both are passage function and will not secure the door. The Cal-Royal AUS00 is a Grade 3 Entrance/Office keyed lever for commercial wood and metal doors, so specify it on the offices and interior entrances where no fire label governs the hardware.
13) I need a matching non-locking lever to pair with the Cal-Royal AUS00 on adjacent doors. What works?
The Cal-Royal AUS00 is the keyed Entrance/Office lever; for the closet and corridor doors next to it you want a passage lever. Grade 3 passage options include the Callan Asheville CLN-AH5011 in satin nickel and the Kwikset 200BRNL Breton passage lever, which lists doors 1-3/8 inch to 1-3/4 inch, the same range the AUS00 covers. For privacy on a restroom in the same run, the Kwikset 300BRNL Breton is the Grade 3 privacy version. Match the finish family across the set; the AUS00 comes in US3 polished brass, US5 antique brass, US10B dark oxidized satin bronze and US15 satin nickel.
14) Is the Callan Bennett entrance leverset with deadbolt the same thing as the Cal-Royal AUS00?
No. The Callan Bennett CLN-BN3001R is a Grade 3 entrance leverset supplied as a deadbolt combo, so it secures the opening with a separate deadbolt above the lever. The Cal-Royal AUS00 is a single cylinder keyed Entrance/Office lever on its own, with a 1 inch cross bore for the latch and a round corner full lip strike measuring 1-3/4 inch by 2-1/4 inch. If the door is already prepped for only one bore, the AUS00 fits; if the frame and door carry a second deadbolt prep, the Bennett combo fills both.
15) How does the Cal-Royal AUS00 compare with a knob style entrance lock like the Arrow HK11?
The Arrow HK11-BB is a turn-pushbutton entrance cylindrical lock with a ball knob and conventional cylinder, Grade 2, fitting doors 1-3/8 inch to 1-3/4 inch. The Cal-Royal AUS00 covers the same 1-3/8 inch to 1-3/4 inch range with the same style of operation from the inside pushbutton, but uses a lever handle rather than a knob. Lever operation is the usual choice where ADA style hardware is expected in a commercial building.
16) Which lever should I specify instead of the Cal-Royal AUS00 for a utility or mechanical room?
Entrance/Office is the wrong function for a room that must stay locked. The Arrow MK33-BD-CS is a heavy duty asylum function cylindrical lock with a Schlage C keyway, and the Dexter C1000 Asylum is a Grade 1 asylum function lock covering doors 1-3/8 inch to 2 inch. For a storeroom door, the Hager 2580 is a Grade 2 storeroom lever. The Cal-Royal AUS00 belongs on offices and tenant entrances, where an occupant needs to unlock the door from the inside with a push button.
17) What finishes does the Cal-Royal AUS00 lever lock come in?
Four: US3 polished brass, US5 antique brass, US10B dark oxidized satin bronze, and US15 satin nickel. The levers are zinc casting plated to match the trim finish, so lever and rose read the same across the opening.
18) What is the Cal-Royal AUS00 actually made of?
All metal body and parts, with a solid brass forged body and a solid filled handle grip. The substrate is wrought brass, bronze, or stainless steel depending on finish, and the levers are zinc casting plated to match. No plastic internals.
19) Does the Cal-Royal AUS00 need a deadbolt strike too, or just the latch strike?
The AUS00 itself is a cylindrical latch, and it ships against a round corner full lip strike measuring 1-3/4 x 2-1/4 inches, with an optional T-strike. A round corner deadbolt strike at 1 x 2-1/4 inches is available separately if you are adding a deadbolt above the lock on the same opening.
