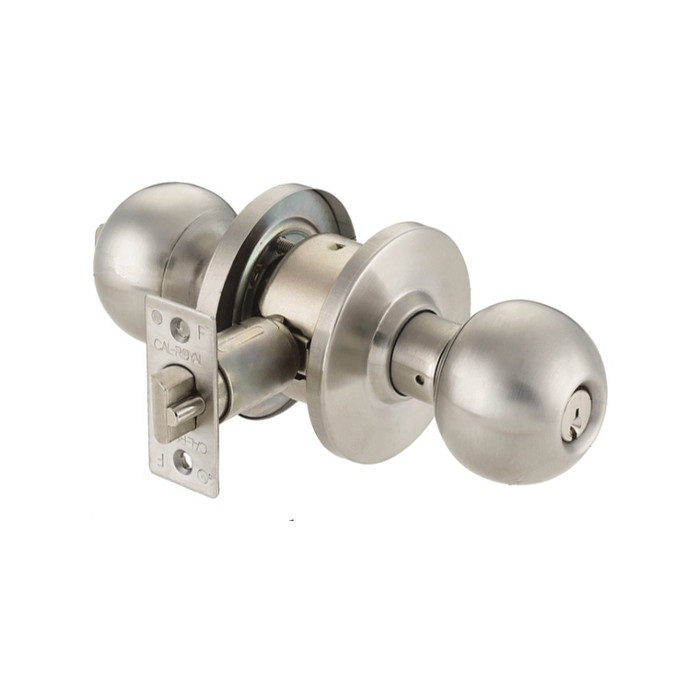

Cal-Royal BA09 Institutional - ANSI F87
Deadlocking latch bolt operated by key in knob from either side. Both knobs are always fixed.
FEATURES
- DOOR RANGES: - 1 3/8" to 1 3/4" thickness doors
- BACKSET: - 2 3/4" Standard, 2 3/8", 3 3/4" and 5" extension available.
- STRIKES: - ANSI strike standard, 4 7/8" x 1 1/4" . Optional "T" and full lip strike available on request.
- ADDITIONAL KEYWAYS: - 6 pin solid brass "C" keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders KEYING- 6-pin "C" keyway cylinder, 2 keys per lock.
- BORE DIAMETER: - 1" for latch. 2 1/8" for lock housing.
- INTERCHANGEABLE CORE -Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix "IC" before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and masterkey available.
- LATCH FACEPLATE - 2 1/4" x 1 1/8" for 2 3/4" backset, 2 1/4" x 1" for 2 3/8" backset.
- EXPOSED TRIM - Wrought brass, bronze or stainless steel.
- ANSI STANDARDS - Meets or exceeds requirements of BHMA/ANSI A156.2 series 4000 for grade 2 (FF-H-106C).
Quality Designed and Engineered for Commercial Buildings
- Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Standard Duty, GRADE 2
- Lifetime Warranty
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Solid brass 6 pin “C” keyway cylinder, optional other keyways
- Optional Interchangeable Core
- Concealed screw mounting
- Long spindle hub eliminates hub wobble
- Meets the Buy American Act
INSTALLATION INSTRUCTIONS
- Brand:
- Cal-Royal
- Category:
- Mechanical Locks
- Subcategory:
- Cylindrical Locksets
- Product Group:
- Mechanical Locks
- Latch Faceplate:
- 2-1/4" x 1-1/8" For 2-3/4" Backset, 2-1/4" x 1" for 2-3/8" backset
- Keyed Function:
- Double Cylinder
- Backset:
- 2-3/4"
- Cross Bore:
- 2-1/8"
- Door Thickness:
- 1-3/8" to 1-3/4"
- Edge Bore:
- 1"
- Model:
- BA09
- Product Subgroup:
- Bored Locksets
- Product Type:
- Knobs and Levers
- Keyed:
- Yes
- Strike:
- ANSI Strike Standard, 4 7/8" x 1 1/4" . Optional "T" And Full Lip Strike Available On Request.
- Substrate:
- Wrought Brass, Bronze or Stainless Steel
- Commercial/Residential:
- Commercial
- Function:
- Asylum/Institution/Utility
- Lock Type:
- Cylindrical
- Lock Function:
- Asylum/Institution/Utility
