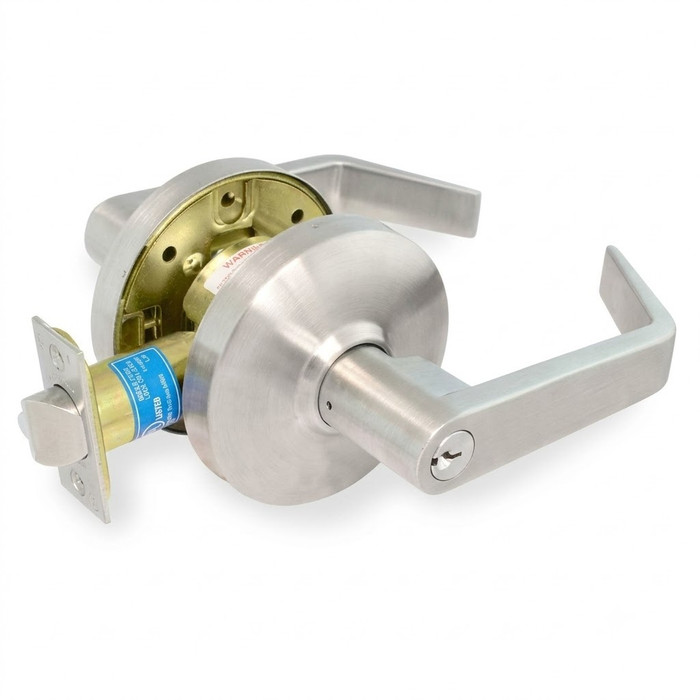

Cal-Royal CGN04 Grade 1 Communicating Lock - ANSI F80
Deadlocking latchbolt operated by Lever from either side. Turning key in either Lever locks or unlocks its own Lever independently.
FEATURES
- GENERAL Full length 4 ¾” lever handle with ⅜” return on GN and SPA Design. Rose diameter 3 ½”. Key removable outside lever for fast re-keying. Non-handed levers. Concealed mounting screws.
- CLUTCH Free turning handle in the lock position without retracting the latch, to deter breaking of handle.
- APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
- DOOR RANGES 1 ⅜” to 1 ¾” thickness. 2” to 2 ¼” thickness also available on request.
- ANSI STANDARDS Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements.
- LATCH FACEPLATE Standard 2 ¼” x 1 ⅛” for 2 ¾” backset. Optional 2 ¼” x 1” for 2 ⅜” backset.
- STRIKES ASA 1 ¼” x 4 ⅞” standard. Other strikes available upon request.
- CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
- TRIM Thru-bolted assembly through door with separate spring cage for each lever.
- HOUSING Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 ⅛” diameter bore.
- INTERCHANGEABLE CORE (IC) Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Also available with SCHLAGE, CORBIN / RUSSWIN, SARGENT and YALE large format cylinders. For Schlage, Corbin / Russwin, Sargent and Yale format specifications, refer to next page.
- LATCH OPTIONS 2 ¾” standard, brass with ½” throw. 2 ⅜”, 3 ¾” and 5” backset optional. GND750 deadlatch reversible for flat and beveled door. ¾” throw anti-friction deadlatch for pair of fire doors.
- ELECTRIFIED LOCKS, TACTILE & LEAD LINING available upon request.
For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.
- Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements, GRADE 1
- Heavy Duty Cylindrical Leversets
- Clutch Mechanism Fixed thru Bolt Installation
- Available with Interchangeable Core for BEST, FALCON & ARROW
- Available Full Size Interchangeable Core for SCHLAGE, CORBIN / RUSSWIN, SARGENT and YALE
GN DESIGN
Genesys Series Catalog
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Grade:
- Grade 1
- Fire Rated:
- Yes
- Backset:
- 2-3/4"
- Handing:
- Non-Handed
- Keyed Function:
- Single Cylinder
- Latch Throw:
- 1/2"
- Model:
- CGN04
- Product Subgroup:
- Bored Locksets
- Product Type:
- Leversets
- Subcategory:
- Cylindrical Locksets
- Keyed:
- Yes
- Strike:
- 4-7/8 x 1-1/4 ASA/ANSI Strike with curved lip to meet ANSI A115.2 door frame preparation"""
- Door Thickness:
- 1-3/8" to 1-3/4"
- Duty Level:
- Heavy Duty
- Commercial/Residential:
- Commercial
- Cylinder and Keyways:
- Schlage C Keyway
- Function:
- Communicating
- UL Listing Type:
- UL/cUL listed up to 3 Hours
- Lock Function:
- Communicating
- Product Attribute:
- Cylindrical Locks
