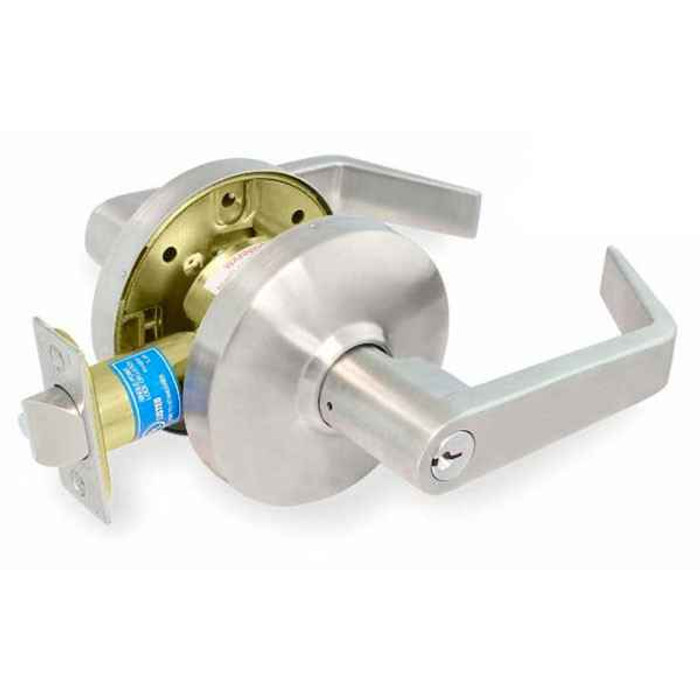

Cal-Royal CGN05 Heavy Duty Grade 1 Entrance/Office Lock, Genesys Series

Cal-Royal CGN00 Grade 1 Entrance Lock - ANSI F80

Deadlocking latchbolt operated by key in outside Lever or rotating inside Lever. Outside Lever is always fixed.

FEATURES

• GENERAL Full length 4 ¾” lever handle with ⅜” return on GN and SPA Design. Rose diameter 3 ½”. Key removable outside lever for fast re-keying. Non-handed levers. Concealed mounting screws.
• CLUTCH Free turning handle in the lock position without retracting the latch, to deter breaking of handle.
• APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
• DOOR RANGES 1 ⅜” to 1 ¾” thickness. 2” to 2 ¼” thickness also available on request.
• ANSI STANDARDS Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements.
• LATCH FACEPLATE Standard 2 ¼” x 1 ⅛” for 2 ¾” backset. Optional 2 ¼” x 1” for 2 ⅜” backset.
• STRIKES ASA 1 ¼” x 4 ⅞” standard. Other strikes available upon request.
• CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
• TRIM Thru-bolted assembly through door with separate spring cage for each lever.
• HOUSING Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 ⅛” diameter bore.
• INTERCHANGEABLE CORE (IC) Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Also available with SCHLAGE, CORBIN / RUSSWIN, SARGENT and YALE large format cylinders. For Schlage, Corbin / Russwin, Sargent and Yale format specifications, refer to next page.
• LATCH OPTIONS 2 ¾” standard, brass with ½” throw. 2 ⅜”, 3 ¾” and 5” backset optional. GND750 deadlatch reversible for flat and beveled door. ¾” throw anti-friction deadlatch for pair of fire doors.
• ELECTRIFIED LOCKS, TACTILE & LEAD LINING available upon request.

For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings.

• Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements, GRADE 1
• Heavy Duty Cylindrical Leversets
• Clutch Mechanism Fixed thru Bolt Installation
• Available with Interchangeable Core for BEST, FALCON & ARROW
• Available Full Size Interchangeable Core for SCHLAGE, CORBIN / RUSSWIN, SARGENT and YALE

GN DESIGN
