Entrance Function: Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Description:
- Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle.
- Applications: For offices, schools, hospitals, apartments, hotel/motel and other public buildings.
- Door Range: 1-3/8" to 1-3/4" thickness doors.
- Backset: 2-3/4" Standard.
- Front: 2-1/4" x 1-1/8", adjustable for flat or beveled doors 1/8" in 2"
- Strike: ASA strike standard. "T" and full lip strike available on request.
- Latchbolt: 1/2" Throw solid brass, reversible for RH or LH applications.
- Exposed Trim: Wrought brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.
- Keying: 6-pin "c" keyway cylinder, 2 keys per lock. Keying as per individual job requirement.

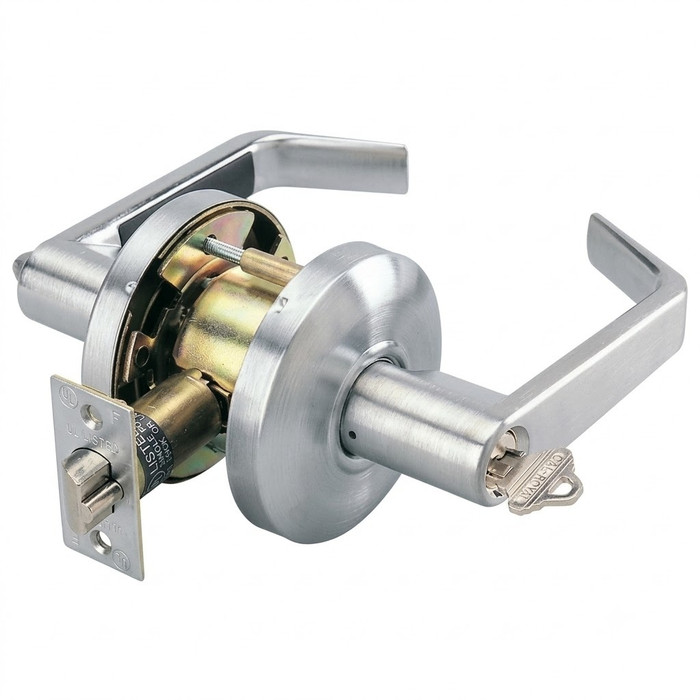

Cal-Royal Pioneer CSL Series Cylindrical Lever Lock, CSL00 Entrance/Office Function
ANSI Function F109 – Turn/Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned.
- Optional thru-bolt installation
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Meets ADA requirements specially designed for Barrier-Free application
- Conforms with ANSI / BHMA A156.2, Series 4000, Grade 2 Requirements Exceeds 400,000 Cycles
- For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings
Installation Instructions
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Cylindrical Leversets
- Product Group:
- Mechanical Locks
- Keyed Function:
- Single Cylinder
- Grade:
- Grade 2
- Model:
- CSL00
- Product Subgroup:
- Bored Locksets
- Product Type:
- Leversets
- Keyed:
- Yes
- Commercial/Residential:
- Commercial
- Function:
- Entrance/Office
- Lock Function:
- Entrance/Office
- Backset:
- 2-3/4"
- Door Thickness:
- 1-3/8" to 1-3/4"
- Strike:
- ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
- Product Attribute:
- Cylindrical Locks
