Description:
Pioneer SL/CSL Series ANSI Grade 2 Cylindrical Leverset Non Clutch Mechanism SL Series Entrance/Office Lock
- Applications: For offices, schools, hospitals, apartments, hotel/motel and other public buildings.
- Door Range: 1-3/8" to 1-3/4" thickness doors.
- Backset: 2-3/4" Standard, 2-3/8", 3-3/4" and 5: optional.
- Front: 2-1/4" x 1-1/8", adjustable for flat or beveled doors 1/8" in 2"
- Strike: ASA strike standard. "T" and full lip strike available on request.
- Latchbolt: 1/2" Throw solid brass, reversible for RH or LH applications.
- Exposed Trim: Wrought brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.
- Keying: 6-pin "c" keyway cylinder, 2 keys per lock. Keying as per individual job requirement.

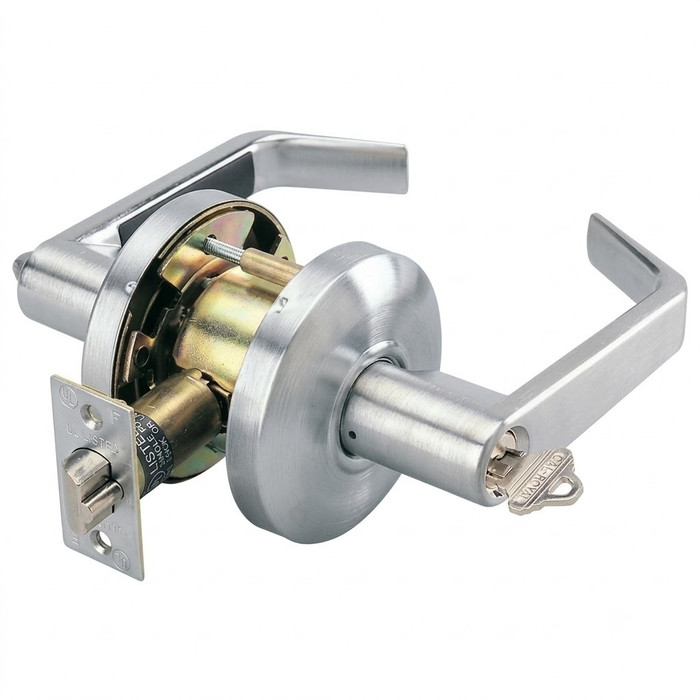

Cal-Royal Pioneer SL Series Cylindrical Lever Lock, SL00 Entrance/Office Function
ANSI Function F109 – Turn/Push button locking. Pushing and turning button locks outside knob requiring use of key until button is manually unlocked. Pushing button locks outside knob until unlocked with key or inside knob is turned.
- Optional thru-bolt installation
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Meets ADA requirements specially designed for Barrier-Free application
- Conforms with ANSI / BHMA A156.2, Series 4000, Grade 2 Requirements Exceeds 400,000 Cycles
- For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings
Installation Instructions
- Brand:
- Cal-Royal
- Category:
- Mechanical Locks
- Subcategory:
- Cylindrical Leversets
- Product Group:
- Mechanical Locks
- Latch Faceplate:
- 2-1/4" x 1-1/8", adjustable for flat or beveled doors 1/8" in 2", for 2-3/4" backset. Optional 2-1/4" x 1" for 2-3/8" backset
- Keyed Function:
- Single Cylinder
- Grade:
- Grade 2
- Door Thickness:
- 1-3/8" to 1-3/4"
- Model:
- SL00
- Product Subgroup:
- Bored Locksets
- Product Type:
- Leversets
- Keyed:
- Yes
- Strike:
- SA Strike standard, "T" and full lip Strike available on request."
- Latch Throw:
- 1/2"
- Substrate:
- Wrought Brass, Bronze or Stainless Steel, levers are Zinc casting, plated to match trim finish.
- Commercial/Residential:
- Commercial
- Function:
- Entrance/Office
- Handle Type:
- Lever
- Lock Function:
- Entrance/Office
