Cal-Royal DSR-410 Aluminum Doo...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$44.57

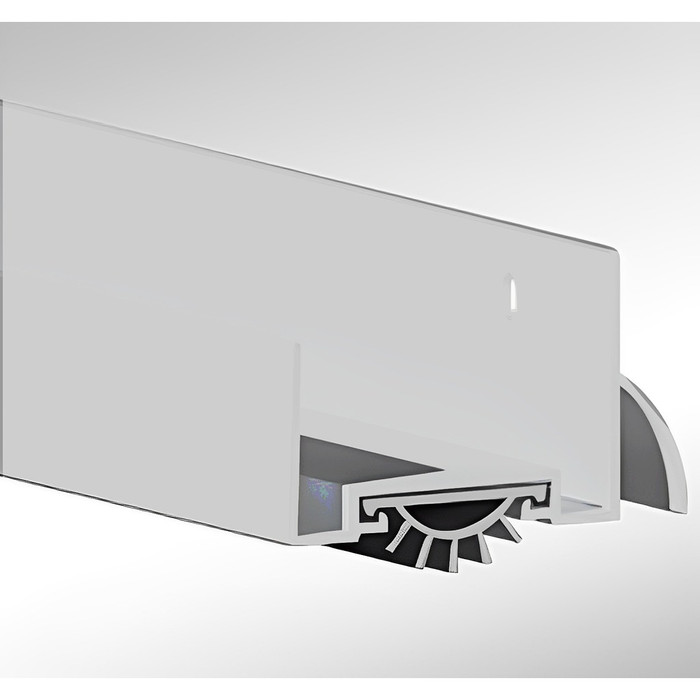

Cal-Royal Cal-Royal DSR-410 Aluminum Door Shoe with Rain Drip and Vinyl Insert CAL-DSR-410

Cal-Royal DSR-410 Aluminum Door Shoe with Rain Drip and Vinyl Insert

(No reviews yet) Write a Review

Model: DSR-410DV-36
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$44.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal DSR-410 Aluminum Door Shoe with Rain Drip and Vinyl Insert

The Cal-Royal DSR-410 is an aluminum door shoe with an integrated rain drip design and flexible vinyl insert, engineered to restrict air, light, smoke, and insects from around the door opening while deflecting water away from the door bottom. Measuring 1-3/4" (44.4mm) in width with a profile height of 1-5/16" (33.3mm) and total height of 1-9/16" (39.7mm), this door shoe is applied to the underside of the door to create a durable weather barrier without compromising the door's aesthetics. Suitable for use on either wood or hollow metal doors, it is engineered and tested for durability and reliable performance to meet or exceed industry standards for energy-efficient door sealing.

Key Features

  • Width: 1-3/4" (44.4mm) for standard door thickness applications.
  • Profile Height: 1-5/16" (33.3mm) for proper seal engagement.
  • Total Height: 1-9/16" (39.7mm) covering the full door bottom profile.
  • Aluminum Channel Construction: Durable aluminum channel houses a flexible vinyl insert for long-term weatherseal performance.
  • Rain Drip Design: The DSR prefix design deflects water away from the door while simultaneously sealing the bottom of the door against drafts and light.
  • Adjustable Mounting: Channels are punched with slotted holes for easy adjustment during installation.
  • Multi-Substrate Compatibility: Designed for use on either wood or hollow metal doors, offering flexible application across door types.
  • Weather and Smoke Barrier: Creates a barrier against dust, drafts, light, smoke, and fire at the door bottom without compromising the door's appearance.

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Series: Door Shoes Series
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Type: Door Shoes
  • Subcategory: Gaskets & Weatherstripping
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Cal-Royal DSR-410?

Cal-Royal door weather seal products are engineered and tested for durability and reliable performance, meeting or exceeding industry standards for energy-efficient door sealing. The DSR-410's aluminum channel and vinyl insert construction, combined with its rain drip design, delivers dependable protection against air, light, smoke, insects, and water infiltration for demanding commercial door openings.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Door Shoes Series
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
Subcategory:
Gaskets & Weatherstripping
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Cal-Royal DSR-410DV-36 – Frequently Asked Questions

1) How much clearance do I need under the door for a Cal-Royal DSR-410 door shoe?
Plan on the shoe adding 1-9/16 inches (39.7mm) of total height below the door, with the aluminum channel profile itself at 1-5/16 inches (33.3mm). The difference is the vinyl insert reaching down to the threshold or floor. If your undercut is smaller than that, the door will bind, and the door bottom has to be trimmed before the shoe goes on.
2) Do I need a door shoe with a rain drip, or is a plain door sweep enough?
The rain drip matters on any exterior opening taking direct weather. The DSR prefix on the DSR-410 is the drip design: it throws water out and away from the door bottom instead of letting it run down the face and sit at the threshold. On an interior door, or one under a deep canopy, a plain door shoe or sweep without the drip does the sealing job just as well and sits flatter against the door. Also worth knowing: a shoe mounts to the underside of the door, a sweep mounts to the face. If your door bottom is chewed up or out of square, the face-mounted sweep is the easier fix.
3) The DSR-410 is not fire rated - what door shoe should I use on a rated opening?
For a fire-rated opening, look at the Pemko 215, a fire-rated door shoe with rain drip and Eco-V insert that is UL10C certified, or the Pemko 210, a fire-rated door bottom shoe with Eco-V insert in 36 inch aluminum construction. The 215 keeps the rain drip that the DSR-410 uses to deflect water away from the door bottom; the 210 is the rated shoe without the drip, for interior rated openings that do not see weather. An MRO or institutional buyer standardizing a rated stairwell or corridor door should confirm the certification against the door assembly listing before ordering.
4) What is the closest equivalent to the Cal-Royal DSR-410 door shoe with a rain drip?
The Pemko 211V is the nearest match in form: it is an L-shaped door shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, so it pairs the same water-deflecting drip lip with a flexible insert the way the DSR-410 pairs its rain drip with a vinyl insert in an aluminum channel. If the opening needs a fire-rated assembly instead, the Pemko 215 is a fire-rated door shoe with rain drip and Eco-V insert, UL10C certified. Both carry the drip feature that separates a rain-drip shoe from a plain door bottom shoe.
5) What door shoe holds up on a cold storage or high-heat door instead of a vinyl insert shoe?
The NGP 112 uses a neoprene seal in aluminum alloy construction and is rated for a temperature range of -20 F to 200 F, which is the spec to work from on a freezer vestibule, a boiler room, or a mechanical penthouse door. The Cal-Royal DSR-410 seals with a flexible vinyl insert in an aluminum channel and adds a rain drip for water deflection, so it is aimed at a weather-exposed exterior opening rather than a temperature extreme. A facilities buyer covering both conditions in one building will typically spec them by opening, not standardize on one.
6) What length door shoe do I order for a 36 inch door?
The DSR-410 comes in 36 inch and 48 inch lengths. A standard 36 inch leaf takes the 36 inch piece; the 48 inch is for wider openings, or for cutting down to an odd width. Aluminum channel cuts cleanly with a hacksaw or miter saw, and the vinyl insert trims to match.
7) Can I adjust a Cal-Royal DSR-410 after it is installed to get a tight seal on the threshold?
Yes, within limits. The channel is punched with slotted holes rather than round ones, so you can loosen the fasteners and shift the shoe up or down slightly to set the vinyl contact against the threshold before final tightening. That is what you use when a door has settled or the threshold is not perfectly level across the opening.
8) Will a Cal-Royal DSR-410 door shoe seal out light and drafts under an exterior door?
That is what it is for. The aluminum channel holds a flexible vinyl insert that closes the gap at the door bottom against air, light, smoke, dust and insects, while the drip deflects water. Getting that seal depends on the vinyl making even contact along the full width, so a level threshold and a straight door bottom matter as much as the part.
9) What else could I use instead of the Cal-Royal DSR-410 door shoe?
Depends on what you are up against. The Pemko 211V is the closest match in shape and purpose, an L-shaped shoe with a rain drip and a GREENGUARD Gold certified Eco-V insert, which is the one to reach for on a project chasing indoor air quality credits. Without the drip, the Pemko 209 is a lower-profile shoe at a 1/2 inch by 1-3/8 inch profile, useful where undercut clearance is tight. For a wider service temperature swing, the NGP 112 is a neoprene shoe on an aluminum alloy base rated -20 F to 200 F. The NGP 12T is a thermoplastic shoe on a mill aluminum base with vinyl fins.
10) Can I standardize on the Cal-Royal DSR-410 across all the exterior doors in my building?
On non-labeled wood and hollow metal exterior leaves, yes, and that is the usual reason to pick it. One part number covers both substrates, both stocked lengths handle standard and oversized leaves, and mill or dark bronze lets you keep the look consistent with the entrances you already have. Fire-labeled openings are the exception and need a rated shoe instead.
11) I do not need the rain drip - is there a simpler door shoe than the DSR-410?
Yes. The Pemko 209 is a door bottom shoe with an Eco-V vinyl insert in a 1/2 inch by 1-3/8 inch profile, without the drip lip. On an interior door - a corridor, a stairwell, a tenant entry under a deep canopy - the drip does no work, and the 209's smaller profile sits tighter under the door than the DSR-410's 1-9/16 inch total height. The NGP 12T is another drip-free option, a thermoplastic door shoe on a mill aluminum base with vinyl fins.
12) Is a door bottom shoe like the Pemko 209 the same thing as the DSR-410?
They are the same class of part but not the same profile. Both are door shoes applied to the underside of the door with an insert that sweeps the threshold - the Pemko 209 carries an Eco-V vinyl insert at a 1/2 inch by 1-3/8 inch profile, the DSR-410 an aluminum channel at 1-3/4 inch width, 1-5/16 inch profile height and 1-9/16 inch total height. The difference that decides it is the rain drip: the DSR-410's DSR design throws water off the face of the door, and the 209 is described as a door bottom shoe without that drip. Swapping one for the other on an exterior door changes how water behaves at the bottom rail.
13) Which door shoes come in a 36 inch length for a standard 3-0 door?
The Cal-Royal DSR-410 is stocked in 36 inch and 48 inch lengths, in mill finish aluminum and dark bronze anodized aluminum, both with the vinyl insert. Among the alternatives, the Pemko 210 is a fire-rated door bottom shoe in 36 inch aluminum construction with an Eco-V insert. A property manager matching a run of 3-0 openings can cut a 36 inch shoe to the door width, and the DSR-410's channels are punched with slotted holes so height can be adjusted at install.
14) I need a door shoe with a low-emitting materials certification for a LEED or healthcare project - what are my options?
The Pemko 211V is an L-shaped door shoe with rain drip whose Eco-V insert is GREENGUARD Gold certified, which is the shoe to put on the submittal when the specification calls for a low-emitting materials credit. It keeps the rain drip, so it covers the same exterior condition the Cal-Royal DSR-410 is built for with its aluminum channel, vinyl insert, and water-deflecting drip design. Confirm the finish and length required for the opening before the submittal goes out.
15) What is the difference between mill finish and dark bronze on the Cal-Royal DSR-410?
Appearance, and how the aluminum is treated. Mill finish is the raw aluminum, the usual choice on service doors and back-of-house openings where nobody is looking. Dark bronze is anodized, which is a harder surface finish and matches bronze storefront and dark aluminum entrances. Both carry the same vinyl insert and both are stocked in 36 inch and 48 inch.
16) Does the vinyl insert on a Cal-Royal door shoe replace separately, or do I have to pull the whole channel?
The DSR-410 is an aluminum channel housing a flexible vinyl insert, so the wearing part is the vinyl, not the extrusion. That is the argument for a shoe over a one-piece sweep on a high-traffic opening: the channel stays fastened to the door and takes the abuse, and the seal is the consumable.
17) What is the difference between a vinyl insert door shoe and a neoprene one?
Both seal the gap under the door, but they are different materials with different working ranges. The Cal-Royal DSR-410 carries a flexible vinyl insert in an aluminum channel and restricts air, light, smoke, and insects while deflecting water. The NGP 112 is a neoprene door shoe in aluminum alloy construction with a stated temperature range of -20 F to 200 F. The NGP 12T is a third path - thermoplastic on a mill aluminum base with vinyl fins, where multiple fins do the sweeping rather than a single insert. Choose by what the opening sees: weather and water, temperature swing, or floor condition.
