Cal Royal - Clutch Entrance Lever Trim, 6-Pin Schlage C Keyway KD, Grade 2

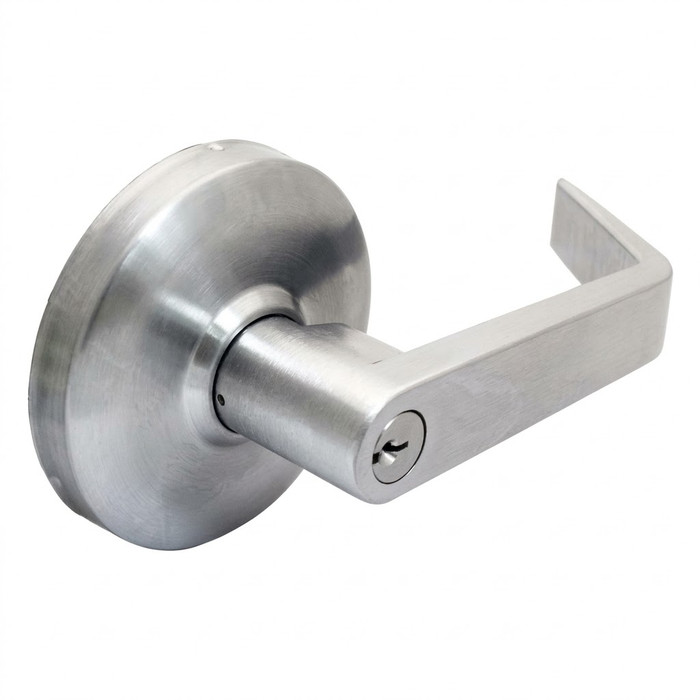

Cal-Royal ENT00L Clutch Entrance Lever Trim with 6-Pin Schlage C Keyway, Grade 2

(No reviews yet) Write a Review

Model: CAL-ENT00L
Selected Finishes is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$150.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal ENT00L Clutch Entrance Lever Trim with 6-Pin Schlage C Keyway, Grade 2

The Cal-Royal ENT00L is a non-handed Grade 2 clutch entrance lever trim engineered for use with fire-rated and non-fire-rated rim and vertical rod exit devices. Built with a heavy-duty tubular steel body and hardened tailpiece, this trim delivers durable, secure access control for commercial, institutional, and public buildings. It supports multiple ANSI functions including Entrance (08), Storeroom (04), Passage (15), and Dummy (10), with true clutch (free-wheeling) functionality available under model CLU5000L, and includes a standard 6-pin Schlage "C" keyway for broad keying compatibility.

Key Features

  • Door Thickness & Backset: Designed for 1-3/4" doors with compatibility for a standard 2-3/4" BS via the connected exit device.
  • Lever & Rose Dimensions: 4-3/4" lever length with a 3-1/2" rose diameter that fits and covers standard 161 cutouts.
  • Heavy-Duty Construction: Tubular steel body with a hardened steel tailpiece for long-term durability in high-traffic commercial applications.
  • Clutch (Free-Wheeling) Function: The clutch mechanism allows handle rotation without latch retraction when locked, adding an extra layer of vandal resistance under model CLU5000L.
  • Broad Function Options: Available in 8000/L Entrance (08), CLU5000L Entrance with Clutch (08), 8000/S Storeroom (04), 8000/PAS Passage (15), 8000/DUM Dummy (10), and 8000/K Entrance Knob Trim (08).
  • High-Security Cylinder Compatibility: Standard 6-pin solid brass Schlage "C" keyway with optional keyways including Schlage E, C-K; Russwin D1-4; Corbin 59/60; Sargent LA-LC; Falcon/Weiser E; Arrow A; Yale 8/GA; and Kwikset, plus high-security cylinder compatibility with Medeco, Assa, Kaba, and Cal-Royal HSK.
  • Optional Knob Trim (8000/K): Non-handed Grade 2 design with 3-1/2" rose fitting standard 161 prep, available in US32D, US10B, and US3 finishes.
  • Optional Pull Trims: 5000 NL pull with key for rim devices (ANSI Function 03), 5000 DTP pull only when dogged (ANSI Function 02), and 5000 EOP plate only (ANSI Function 10), all covering standard 161 cutouts.

Technical Specifications

  • Subcategory: Clutch Lever Trim
  • Product Subgroup: Exit Device Trim
  • Product Group: Mechanical Lock
  • Product Category: Commercial Door Hardware
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Cal-Royal ENT00L?

Cal-Royal ENT00L trim combines a heavy-duty tubular steel body with a hardened steel tailpiece to deliver Grade 2 reliability for demanding commercial door applications. The broad range of ANSI function options, keyway configurations, and high-security cylinder compatibility make it a versatile solution for facility managers and locksmiths specifying rim and vertical rod exit device trim. Engineered for durable, secure performance where dependable access control is essential.

Product Specs

Subcategory:
Clutch Lever Trim
Product Subgroup:
Exit Device Trim
Product Group:
Mechanical Lock
Product Type:
Lever Trim
Lever Length:
4-3/4"
Rose Diameter:
3-1/2", fits and covers standard 161 cutout
High-Security Cylinder Compatibility:
Medeco, Assa, Kaba, Cal-Royal HSK
Door Hand Direction:
Non-handed
Door Thickness Range:
For 1-3/4" doors
Product Category:
Commercial Door Hardware
Backset (Distance):
Compatible with standard 2-3/4" BS (via connected exit device)
Department:
Door Hardware

Cal-Royal CAL-ENT00L – Frequently Asked Questions

1) Will the Cal-Royal ENT00L lever trim cover the existing 161 prep on my door?
Yes. The ENT00L rose measures 3-1/2 inches in diameter and fits and covers a standard 161 cutout, so if the door already has a cylindrical 161 prep from a previous lockset or trim, the rose hides it. That is the usual case when swapping trim on an existing exit device opening.
2) Does the ENT00L trim have a hand, or do I need to specify left or right?
Non-handed. The ENT00L clutch entrance lever trim installs on either a left or right hand door with no reversing and nothing to specify on the order, which is why it is a safe stock item for a property manager keeping one trim on the shelf for a building full of openings.
3) What door thickness and backset does the Cal-Royal ENT00L entrance trim work with?
It is built for 1-3/4 inch doors, the standard commercial thickness, and works with a standard 2-3/4 inch backset by way of the exit device it mounts to. The trim itself does not set the backset; the rim or vertical rod device does.
4) Can I key the Cal-Royal ENT00L into my existing Schlage master key system?
It ships standard with a 6-pin solid brass Schlage C keyway, so it drops into most existing Schlage C systems. Other keyways are available: Schlage E and C-K, Russwin D1-4, Corbin 59/60, Sargent LA-LC, Falcon/Weiser E, Arrow A, Yale 8/GA, and Kwikset. For higher security the trim accepts Medeco, Assa, Kaba, and Cal-Royal HSK cylinders.
5) What does the clutch feature on this Cal-Royal entrance trim actually do?
When the trim is locked, the clutch lets the lever spin freely instead of binding against the mechanism, so somebody yanking or hanging on the lever cannot break the trim or the device connection. Latch retraction only happens when the lever is unlocked. True free-wheeling clutch is the CLU5000L model, ANSI function 08 entrance.
6) Will the ENT00L work on a fire rated exit device opening?
Yes. The trim is made for use with both fire rated and non-fire-rated rim and vertical rod exit devices, so it suits stair doors and cross-corridor openings as well as ordinary exterior entrances.
7) How durable is the Cal-Royal ENT00L for a high traffic entrance?
It is a Grade 2 trim with a tubular steel body and a hardened steel tailpiece. The tailpiece is the part that takes the abuse on an exit device trim, so hardening it matters on schools, retail entries, and multi-tenant lobbies. Grade 2 is the mid commercial duty level under ANSI/BHMA; for the heaviest abuse openings you would spec a Grade 1 trim.
8) What finish does the Cal-Royal ENT00L clutch lever trim come in?
Satin chrome, 626, which is the standard commercial finish and matches most exit devices and closers already hanging in an office or school building. The 8000/K knob version of this trim family is offered in US32D, US10B, and US3.
9) How long is the lever on the ENT00L trim?
The lever measures 4-3/4 inches. That length gives an easy return-to-door style grip for gloved hands and carts, which is why it reads well on healthcare and school corridors.
