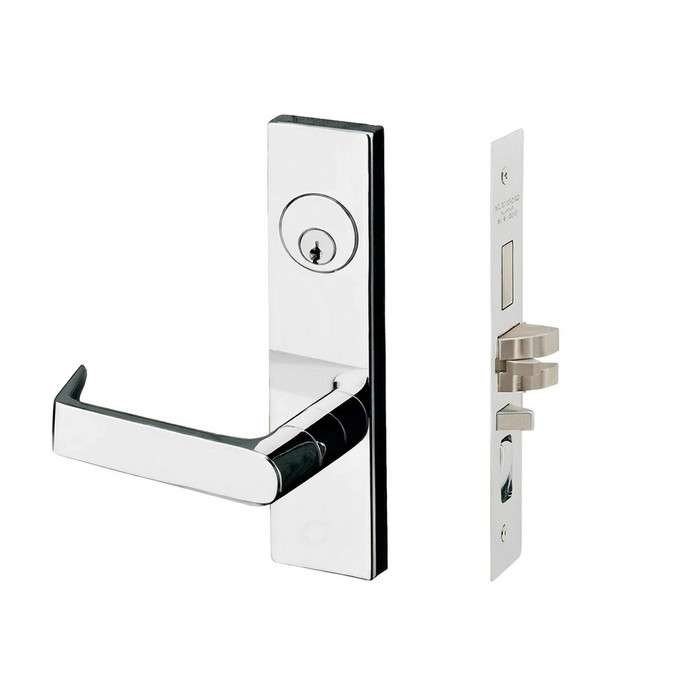

Cal-Royal NM8440 Heavy Duty Grade 1, Privacy with Deadbolt - F19
Latch bolt retracted by knob / lever from either side. Deadbolt thrown or retracted by inside thumbturn. Throwing deadbolt locks outside knob / lever. Rotating inside knob / lever simultaneously retracts deadbolt and latch bolt, and unlocks outside knob / lever. To unlock from outside, insert emergency thumbturn in access hole and rotate. Inside knob / lever is always free for immediate egress.
Features
- For Doors - 1-3/4" thick
- Backset - 2-3/4"
- Lockcase - Heavy gauge zinc chromate steel
- Front - Heavy gauge steel 8" x 1-1/4" x 3/32". Accommodates flat doors & doors beveled 1/8" in 2".
- Armored Front - Wrought brass attached by machine screws to lockcase front
- Deadbolt - 1" throw, brass, chrome plated with hardened steel rollers
- Latchbolt - Brass, chrome plated with heavy-duty deadbolt
- Guardbolt - Extruded brass, chrome plated
- Stopworks - Rocker type, brass, chrome plated
- Strike - Brass, non-handed curved strike 4-7/8" x 1 1/4". Curved-up strike available upon request
- Handing - Handed. Easily field-reversible
- UL Listing - UL Listed “A” Label (3 hours), for use on fire doors, single or pair of doors. “F” mark stamped on strike
- ANSI/BHMA - Meets ANSI/BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceeds 1,000,000 cycles.
- Escutcheon Dimension - 2 ½" W x 8 ¼" H x ½" T
Description
- BHMA Certified Lifetime Warranty, GRADE 1
- Conforms to federal specification type 86; and to all dimensional and operational performances of ANSI A156.13-1 80, Series 1000, Extra Heavy Duty
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Optional Interchangeable Core
- Rust-proof heavy duty 2 ¾" backset lock case
- Individual spring to prevent lever sag, easily reversible
- Forged brass lever handles exceed requirements of ADA (American Disability Act)
- Auxiliary latch bolt
- Armored front plate conceals lock mounting screws
- 1" throw heavy duty deadbolt with anti-saw hardened pins
- Heavy duty ¾" latch bolt with anti-friction latch, easily reversible
- Optional Electrified Locks available
- Conforms & Meets ADA Regulations
