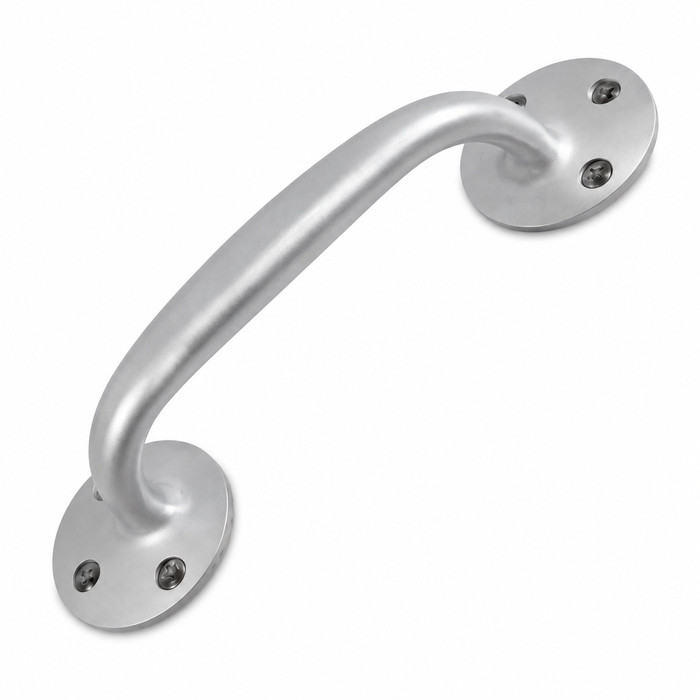

Cal-Royal Cal-Royal PUL715 Heavy Cast Aluminum Door Pull, 7-3/8" x 1-1/2", 2-1/16" Projection CAL-PUL715

Cal-Royal PUL715 Heavy Cast Aluminum Door Pull, 7-3/8" x 1-1/2", 2-1/16" Projection

(No reviews yet) Write a Review

Model: PUL715-DURO
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal PUL715 Heavy Cast Aluminum Door Pull, 7-3/8" x 1-1/2", 2-1/16" Projection

The Cal-Royal PUL715 is a heavy cast aluminum door pull engineered for durable commercial door applications. Measuring 7-3/8" x 1-1/2" with a 2-1/16" projection, this door pull provides a substantial, easy-to-grip profile suited for high-traffic entryways. Constructed from cast aluminum for long-term strength, the PUL715 includes exposed screw mounting along with a thru-bolt option for heavy duty installation, giving installers flexibility based on door construction and expected usage. As part of Cal-Royal's Door Pulls Series within the Door Trim and Accessories product group, this pull is designed to complement push plates and other coordinating trim in commercial settings.

Key Features

  • Dimensions: 7-3/8" x 1-1/2" overall size for a comfortable, easy-to-grasp handle profile.
  • Projection: 2-1/16" projection provides adequate clearance for reliable hand grip on commercial doors.
  • Heavy-Duty Construction: Cast aluminum material delivers long-lasting durability for demanding commercial applications.
  • Mounting Options: Exposed screw mounting is standard, with a thru-bolt option included for heavy duty installation where additional strength is required.
  • Commercial-Grade Design: Purpose-built for commercial door hardware applications requiring dependable daily performance.

Technical Specifications

  • Product Group: Door Trim and Accessories
  • Series: Door Pulls Series
  • Product Subgroup: Door Pulls, Push and Pull Plates
  • Product Type: Door Pulls
  • Subcategory: Door Pulls
  • Commercial/Residential: Commercial
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Cal-Royal PUL715?

Cal-Royal door pull products deliver dependable, commercial-grade performance backed by heavy cast aluminum construction built to withstand frequent daily use. With flexible mounting options, including exposed screws and an included thru-bolt option, the PUL715 is engineered for reliable, long-term operation in demanding commercial door environments.

Product Specs

Product Group:
Door Trim and Accessories
Series:
Door Pulls Series
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Door Pulls
Subcategory:
Door Pulls
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Cal-Royal PUL715-DURO – Frequently Asked Questions

1) Will the Cal-Royal PUL715 door pull give enough hand clearance on a heavy commercial entry door?
The PUL715 stands off the door face 2-1/16 inches, which is enough room to get a gloved hand behind the grip on a commercial entry. The grip body measures 7-3/8 x 1-1/2 inches, so it is a short single-hand pull rather than a full-height ladder pull. If you want a taller grab area for a heavily used storefront or a door people pull two-handed, an Ives 8102HD or 8103HD straight pull is the longer-bar style to look at instead.
2) How does the Cal-Royal PUL715 mount, and can it be thru-bolted?
Exposed screw mounting is the standard method on the PUL715, and a thru-bolt option is included in the box for heavy duty installation. That matters on hollow metal and on doors where the pull gets yanked all day: thru-bolting carries the load through the door rather than relying on screws threaded into the face. On a door where you can also mount a push plate on the opposite side, thru-bolting is the usual way to go.
3) I need a matching push plate for the other side of the door. Does the PUL715 pair with one?
The PUL715 is a pull only, so the push side is a separate order. It is built to coordinate with push plates and other trim in the same commercial line. For the push side, a Trimco 1001-1 heavy duty push plate at 3 x 12 inches is a common pairing on a standard door, and the Trimco 1070 Series push/pull plates at 3-1/2 x 15 inches cover a taller plate if you want more coverage on the door face.
4) I need an ADA compliant offset door pull instead of a straight grip pull. What should I order?
The Ives 8145 is a 45 degree offset door pull with heavy duty mounting hardware, listed as ADA compliant in the EZ Series. The Ives 8169 is a C style offset solid pull at 1" diameter with heavy duty mounting, and the ABH AB3310 is an offset flat end pull handle for surface mount commercial use. The Cal-Royal PUL715 is a straight cast aluminum pull with a 2-1/16" projection, so where the drawing calls for an offset pull, the 8145EZHD or 8169 is the shape to specify.
5) What is the closest heavy duty commercial door pull to the Cal-Royal PUL715 if I need through-bolt mounting on a metal door?
The Cal-Royal PUL715 is a heavy cast aluminum pull, 7-3/8" x 1-1/2" with a 2-1/16" projection, and it ships with exposed screw mounting plus a thru-bolt option for heavy duty installation. The Ives 8103HD is a heavy duty straight door pull in 1" round bar with through bolt mounting, and the ABH AB7200 is a solid stainless steel flat end pull, 7/8" diameter, also with through-bolt mounting. All three give you a through-bolted pull; the PUL715 is cast aluminum in a flat 1-1/2" wide profile, while the 8103HD and AB7200 are round bar stock at 1" and 7/8" diameter respectively.
6) What finishes does the Cal-Royal PUL715 come in?
Two: plain aluminum and duronodic (the dark bronze anodized tone). Duronodic is the one to pick when the pull has to sit next to dark anodized storefront framing or existing bronze-tone trim; the aluminum finish matches clear anodized frames and mill-finish hardware. There is no other finish in the PUL715 line, so if a building standard calls for a plated brass or stainless look, this is not the pull for it.
7) Is a cast aluminum door pull tough enough for a school or hospital corridor?
Heavy cast aluminum is the construction on the PUL715, and it is built as commercial-grade trim, not residential. Cast aluminum holds up well to constant hand traffic and does not corrode, and the included thru-bolt mounting is what actually decides longevity in a corridor like that. Where the abuse level is extreme (a loading dock, a restroom door in a stadium), a solid stainless pull such as the ABH AB7200 with through-bolt mounting is the heavier material choice.
8) Should I use a short offset pull like this or a long straight ladder pull on a glass storefront door?
A short pull like the PUL715, at 7-3/8 x 1-1/2 inches with 2-1/16 inches of projection, is aimed at hollow metal and wood commercial doors where the pull sits opposite a push plate and the traffic goes one way. Long back-to-back pulls are the storefront answer, because glass doors get pulled from both sides and you want the two halves through-bolted to each other. For that, look at the Deltana SSPOBB24 or SSPORBB24 24 inch back-to-back pulls, offset flat and offset round respectively.
9) Does the PUL715 have handing, or can I use the same part on left and right hand doors?
No handing on the PUL715. It is a symmetrical grip 7-3/8 x 1-1/2 inches with a 2-1/16 inch projection, so one part number covers left and right hand doors and you can standardize a whole building on it. Pick handing only on decorative pulls that call for it, like the Emtek Art Nouveau pull which is ordered with a handing selection.
10) Is the Cal-Royal PUL715 a back-to-back set, or does one order cover just one side?
One PUL715 covers one face of the door. It is a single-side pull with exposed screw mounting standard and a thru-bolt option included, so if you want a grip on both faces you order two and thru-bolt them together, or you pair it with a push plate on the opposite side. Sets that ship as a matched pair, like the Deltana OHP620 back-to-back offset handle set, are ordered differently.
11) Can I put the Cal-Royal PUL715 on a 1-3/8 inch residential door, or is there a pull sized for that thickness?
The Deltana OHP620 off-set handle pull is a back-to-back set rated for a door thickness range of 1-1/8" to 1-3/8", which is the pull to reach for on a thinner residential slab. The Cal-Royal PUL715 is a commercial cast aluminum pull with exposed screw mounting and a thru-bolt option, so on a thin door the thru-bolt length is the detail to confirm before ordering.
12) What is the difference between the Cal-Royal PUL715 and a Trimco push plate like the 1001-1?
They are not substitutes for each other. The Trimco 1001-1 is a heavy duty push plate, 3" x 12", a flat plate with no grip. The Cal-Royal PUL715 is a pull with a 2-1/16" projection so a hand can wrap behind it. On a single-acting door, the push plate goes on the push side and the pull on the pull side. The Trimco 1041 is a half-round push plate at 8" x 16" for the same push side duty, and the Trimco 1070 Series classic push/pull plates at 3-1/2" x 15" combine both plate styles in one series.
13) I need a door pull that will not corrode in a restroom or a washdown area. Is cast aluminum the right choice?
The Cal-Royal PUL715 is heavy cast aluminum, built for commercial door applications. Where you want stainless, the ABH AB7200 is a solid stainless steel flat end pull handle at 7/8" diameter with through-bolt mounting. For restroom openings specifically, the Trimco 1035 Ultimate Restroom Pull is a heavy duty pull built for that application.
14) My architect specified a custom length pull. Does the Cal-Royal PUL715 come in other lengths, or do I need a different series?
The Cal-Royal PUL715 is a fixed 7-3/8" x 1-1/2" pull offered in Aluminum and Duronodic finishes. For a specified length, the ABH AB3330 Series is an offset round end pull with custom length options. The ABH AB3300 is a straight flat end pull at 1.00" diameter and the ABH AB3310 is the offset flat end version, both commercial grade, if a stock length in those series meets the drawing.
15) How does the 2-1/16 inch projection on the Cal-Royal PUL715 compare to other heavy duty pulls for glove clearance?
The Cal-Royal PUL715 gives 2-1/16" of projection off the door face. The Ives 8102HD is a heavy duty straight pull built from 3/4" round bar with 1-1/2" clearance. If crews are gripping with gloves on an industrial or warehouse opening, the PUL715 offers the deeper hand space of the two; the 8102HD sits closer to the door face on a thinner bar.
