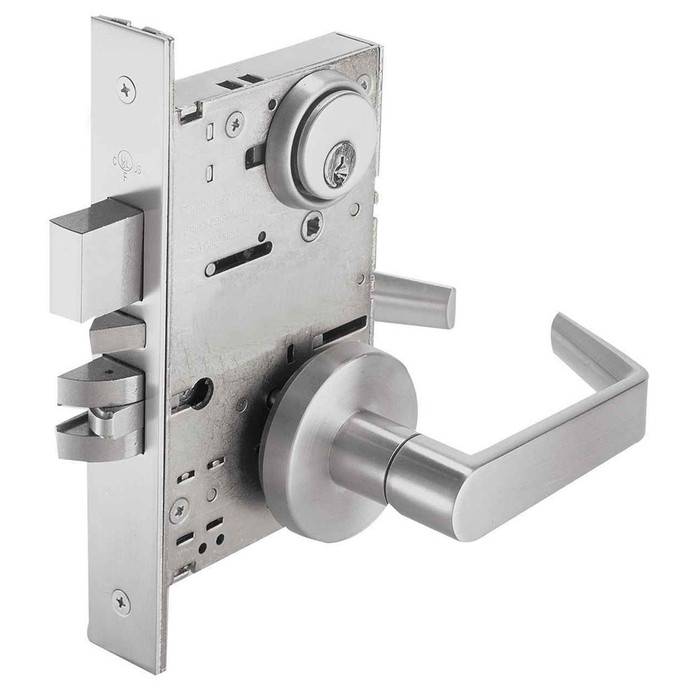

Cal-Royal SC8060 Grade 1 Apartment Entrance Mortise Lockset with Interchangeable Core
The Cal-Royal SC8060 is a Grade 1 apartment entrance mortise lockset engineered for 1 ¾" (44.5mm) thick doors with a 2 ¾" (70mm) backset and 3 7/8" (98mm) center-to-center dimension. Built with a heavy-duty wrought steel, zinc dichromate plated lock case, this double cylinder keyed lockset conforms to ANSI A156.13 Grade 1 standards and exceeds 1,000,000 test cycles. It accepts 6 or 7 pin interchangeable cores compatible with BEST, FALCON, and ARROW (SFIC), and retrofits Schlage L9000 Series mortise locks without drilling additional holes.
Key Features
- Door Thickness Range: Designed for 1 ¾" (44.5mm) thick standard doors.
- Backset & Center-to-Center: 2 ¾" (70mm) backset with 3 7/8" (98mm) center-to-center for precise fit.
- Heavy-Duty Durability: Lock body exceeds 1,000,000 test cycles, conforming to ANSI A156.13 Grade 1 operational and security standards.
- Heavy-Duty Construction: Wrought steel, zinc dichromate plated lock case with a 1" (25.4mm) hardened stainless steel deadbolt throw and ¾" (19mm) stainless steel anti-friction reversible latch bolt.
- Interchangeable Core Compatibility: Accepts compatible 6 or 7 pin cores with BEST, FALCON, and ARROW for flexible keying options.
- Field Reversible Handing: Lock bodies are easily field reversible, eliminating the need to specify hand when ordering.
- Armor Faceplate: Brass or stainless steel, 8" x 1 7/32" (203mm x 31.3mm), meeting ANSI Standard A115.1.
- Clutch Lever Design: Free-wheeling outside lever rotates when locked, decreasing the chance of lever breakage from excessive force, with no exposed mounting screws on outside or inside trims.
Certifications & Compliance
- Meets ANSI/BHMA A156.13 Series 1000, Operational & Security Grade 1 Standards
- UL and UL Listed to Canadian safety standard for A label (3-hour fire door); stamped letter F and UL symbol on armor faceplate
- Meets positive pressure requirements UL 10C and UBC 7-2 (1997)
- Meets ADA requirements, specifically designed for Barrier Free Application
Technical Specifications
- Product Group: Mechanical Locks
- Cylinder and Keyways: 6-pin solid brass "C" keyway standard, Interchangeable Core locks will accept compatible 6 or 7 Pin cores with BEST, FALCON and ARROW (SFIC)
- Product Subgroup: Mortise Locks and Trim
- Latch Throw: 3/4" (latch), 1" (deadbolt)
- Commercial/Residential: Commercial
- Keyed: Yes
- Keyed Function: Double Cylinder
- Electronic: No
- (CTC) Center-to-Center: 3-7/8"
- Product Function: Entrance/Office
- Door Hand Direction: Field Reversible
- Door Thickness Range: 1-3/4"
- Face Plate: Brass or stainless steel, 8" x 1-7 /32"
- Product Category: Mechanical Locks
- Backset (Distance): 2-3/4"
- Department: Door Hardware
Typical Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Multi-Tenant Residential Properties
- Retail Establishments
- Government and Municipal Buildings
Why Cal-Royal SC8060?
Cal-Royal SC8060 mortise locksets deliver professional-grade reliability with heavy-duty wrought steel construction and a lock body rated to exceed 1,000,000 test cycles under ANSI A156.13 Grade 1 standards. The interchangeable core design, field reversible handing, and UL listed fire door rating make this lockset engineered for demanding commercial applications where dependable, long-term performance is essential.
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Cylinder and Keyways:
- 6-pin solid brass "C" keyway standard, Interchangeable Core locks will accept compatible 6 or 7 Pin cores with BEST, FALCON and ARROW (SFIC)
- Grade:
- Grade 1
- Product Subgroup:
- Mortise Locks and Trim
- Product Type:
- Mortise Locks
- Subcategory:
- Mortise Lockset
- ANSI/BHMA:
- ANSI Standard A115.1
- Latch Throw:
- 3/4" (latch), 1" (deadbolt)
- Commercial/Residential:
- Commercial
- Lock Type:
- Mortise
- Keyed:
- Yes
- Keyed Function:
- Double Cylinder
- Handle Type:
- Lever
- Lock Function:
- Entrance
- Product Attribute:
- Mortise Locks
- Electronic:
- No
- Product Model:
- SC8060
- (CTC) Center-to-Center:
- 3-7/8"
- Product Function:
- Entrance/Office
- Door Hand Direction:
- Field Reversible
- Door Thickness Range:
- 1-3/4"
- Face Plate:
- Brass or stainless steel, 8" x 1-7 /32"
- Product Substrate:
- Steel
- Product Category:
- Mechanical Locks
- Backset (Distance):
- 2-3/4"
- Department:
- Door Hardware
