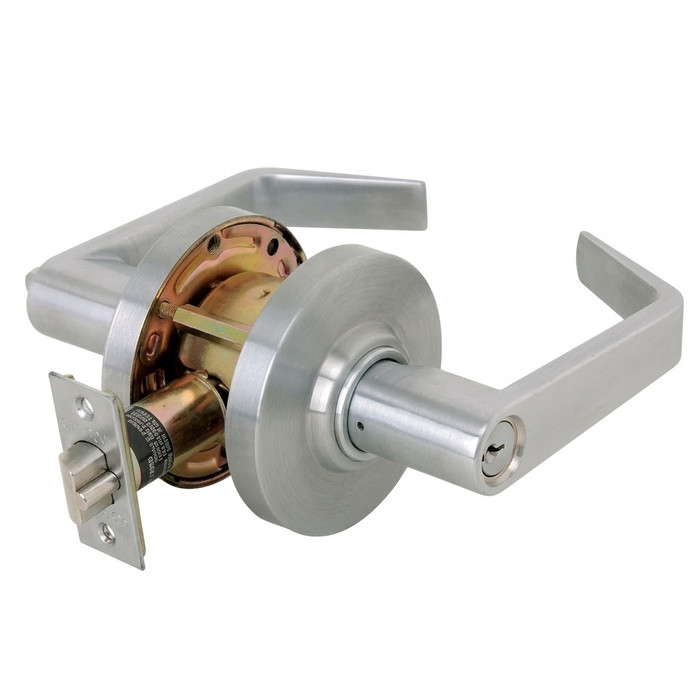

Cal-Royal XP00/XPRL00 Grade 2 Entrance Lever Lock, Explorer Series

Cal-Royal XP00/XPRL00 Grade 2 Entrance Lever Lock, Explorer Series

(No reviews yet) Write a Review

Model: XP00-26D
$105.73
$81.89
Selected Model is
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$105.73
$81.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cal-Royal XP00/XPRL00 Grade 2 Entrance Lever Lock, Explorer Series

The Cal-Royal XP00/XPRL00 is a Grade 2 Entrance Lever Lock from the Explorer Series, engineered as a cylindrical bored lockset for commercial entrance door applications. Featuring a single cylinder keyed function, this lever lock is built with a wrought brass, bronze, or stainless steel body, with zinc casting levers plated to match the selected trim finish. It accommodates door thickness ranges of 1-3/8" to 2" with a 2-3/4" backset, making it a reliable choice for standard commercial door preparations requiring dependable entrance locking hardware.

Key Features

  • Latch Faceplate: 2-1/4" x 1", square corner, packed with 1/8" filler for 1-1/8" width, ensuring proper fit across common door preparations.
  • Latch Throw: 1/2" throw provides secure engagement for reliable latching performance.
  • Backset: 2-3/4" backset supports standard commercial door hardware layouts.
  • Door Thickness Compatibility: Designed for doors ranging from 1-3/8" to 2" thick, offering flexibility across various door constructions.
  • Heavy-Duty Construction: Wrought brass, bronze, or stainless steel body construction with zinc casting levers, plated to match trim finish for durability and consistent appearance.
  • Keyed Function: Single cylinder keyed entrance function for controlled access at commercial entry points.
  • Door Strike Options: ASA Strike standard, with "T" and full lip strike available on request for flexible installation requirements.
  • Handle Type: Lever handle design for ease of use and ADA-friendly operation in commercial settings.

Certifications & Compliance

  • Grade 2 (ANSI/BHMA)

Technical Specifications

  • Subcategory: Cylindrical Locks
  • Product Group: Mechanical Locks
  • Latch Faceplate: 2-1/4" x 1", square corner packed with 1/8" filler for 1-1/8" width.
  • Grade: Grade 2
  • Keyed Function: Single Cylinder
  • Product Subgroup: Bored Locksets
  • Product Type: Leversets
  • Keyed: Yes
  • Latch Throw: 1/2"
  • Commercial/Residential: Commercial
  • Handle Type: Lever
  • Lock Function: Entrance
  • Product Attribute: Cylindrical Locks
  • Product Model: XP00, XPRL00
  • Product Function: Entrance
  • Door Thickness Range: 1-3/8" to 2"
  • Door Strike: ASA Strike standard, "T" and full lip Strike available on request.
  • Product Category: Mechanical Locks
  • Product Substrate: Wrought Brass, Bronze or Stainless Steel, levers are Zinc casting, plated to match trim finish.
  • Backset (Distance): 2-3/4"
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Cal-Royal XP00/XPRL00?

Cal-Royal Explorer Series entrance lever locks deliver Grade 2 commercial-grade reliability with wrought brass, bronze, or stainless steel construction and zinc casting levers plated to match trim finish. Built for standard commercial door preparations, the XP00/XPRL00 provides consistent, secure entrance locking performance where dependable, code-appropriate hardware is essential.

Product Specs

Subcategory:
Cylindrical Locks
Product Group:
Mechanical Locks
Latch Faceplate:
2-1/4" x 1", square corner packed with 1/8" filler for 1-1/8" width.
Grade:
Grade 2
Keyed Function:
Single Cylinder
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Latch Throw:
1/2"
Commercial/Residential:
Commercial
Handle Type:
Lever
Lock Function:
Entrance
Product Attribute:
Cylindrical Locks
Product Model:
XP00, XPRL00
Product Function:
Entrance
Door Thickness Range:
1-3/8" to 2"
Door Strike:
ASA Strike standard, "T" and full lip Strike available on request.
Product Category:
Mechanical Locks
Product Substrate:
Wrought Brass, Bronze or Stainless Steel, levers are Zinc casting, plated to match trim finish.
Backset (Distance):
2-3/4"
Department:
Door Hardware

Cal-Royal XP00-26D – Frequently Asked Questions

1) Will the Cal-Royal XP00 entrance lever lock fit a 1-3/8 inch wood door?
Yes. The XP00/XPRL00 Explorer Series entrance lever covers doors from 1-3/8 to 2 inches thick, so a 1-3/8 inch interior wood door and a standard 1-3/4 inch commercial door both work off the same lockset. That upper end of 2 inches also picks up thicker mineral-core and clad doors that a 1-3/8 to 1-3/4 inch lock will not reach.
2) My doors are bored 2-3/8 inch backset, not 2-3/4. Can I still order the Cal-Royal Explorer entrance lever?
Backset is a choice you make on the order. The Explorer entrance lever is specified with a 2-3/4 inch backset, and a 2-3/8 inch backset is selectable instead, so existing residential-style preps at 2-3/8 are covered without redrilling. Pick the backset that matches the cross-bore centerline you already have in the door, not the one that matches the frame.
3) Is the Cal-Royal XP00 a keyed entrance lock, and how does the entrance function actually work?
Keyed, single cylinder. The XP00/XPRL00 is an entrance function lever: key operation from the outside, and the inside lever always retracts the latch for free egress. Single cylinder means there is no key on the room side, so nobody gets locked in behind it. If you need a lock that stays locked outside at all times with key-only entry, that is a storeroom function, not this one.
4) Is the Cal-Royal Explorer lever ANSI Grade 2, and is that enough for a commercial building?
Grade 2 under ANSI/BHMA, and it is built as commercial hardware, not residential. Grade 2 is the standard duty tier for offices, multi-tenant residential corridors, and retail back-of-house where traffic is steady but not punishing. For a school corridor or a hospital entry that cycles all day, step up to Grade 1: the Dexter C1000 Series entry/office lever and the Falcon K101 K Series are Grade 1 cylindrical levers in the same bored format.
5) What is the closest Grade 2 commercial entrance lever lock to the Cal-Royal XP00 if I need a different brand?
The Hager 2525 is the nearest match. Both are Grade 2 cylindrical entry lever locks for commercial doors, and both cover a 1-3/8 inch to 2 inch door thickness range, so the same door prep accepts either. The Cal-Royal XP00/XPRL00 is a single cylinder keyed entrance function with a 2-3/4 inch backset and a 1/2 inch latch throw. Where they differ is trim: the Hager 2525 uses the Withnell lever design, while the XP00 and XPRL00 give two Explorer Series lever styles across six finishes from US3 polished brass to US26D polished chrome.
6) I need a heavier duty entrance lever than a Grade 2 for a high traffic commercial entry - what should I specify instead?
Step up to the Dexter C1000 Series entry/office lever lock, which is Grade 1 with a clutching lever and a keyed cylinder, covering 1-3/8 inch to 1-3/4 inch doors. The Cal-Royal XP00/XPRL00 is Grade 2 and covers 1-3/8 inch to 2 inch, so if your doors run thicker than 1-3/4 inch the Dexter will not reach and the Cal-Royal will. The clutching lever on the C1000 lets the outside lever spin free when locked, which is the behavior institutional specs usually ask for on abused openings.
7) Is the Hager 2580 storeroom lever a substitute for the Cal-Royal XP00 entrance lock?
No - they are different functions and behave differently at the door. The Hager 2580 with Withnell lever is a Grade 2 storeroom function, where the outside lever stays locked at all times and a key retracts the latch. The Cal-Royal XP00/XPRL00 is an entrance function, so it can be left unlocked for business hours and secured with the key. Both are Grade 2 and both fit 1-3/8 inch to 2 inch doors, so the prep is interchangeable even though the function is not.
8) I want to get rid of keys on a tenant entry - what keyless lever replaces a Cal-Royal XP00?
The Cal-Royal XP00/XPRL00 is a single cylinder keyed entrance lever. For keyless access on the same style of opening, the Lockey 2835 mechanical pushbutton keyless lever lock is ADA compliant and fits doors 1 3/16 inch to 2 inch, and the Lockey 1150 heavy duty mechanical keypad lever set has an adjustable backset and fits 1-1/8 inch to 2 inch doors. The Delaney LP250 is an electronic keypad leverlock in Grade 2, matching the Cal-Royal's grade. Note that the Lockey 2835 and 1150 are passage function - they latch and unlock by code rather than holding a keyed cylinder.
9) Which entrance lever should I use if the door needs an electrified lock for access control rather than the Cal-Royal XP00?
The Cal-Royal XP00/XPRL00 is a mechanical keyed entrance lever with no electrical option. For an access-controlled opening, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever lock at 12VAC/DC for doors 1-3/4 inch to 2 inch, available as a keyed version or with the NZ lever and D rose. Fail safe means the lever unlocks on loss of power, which is the behavior egress-critical openings usually require.
10) Will a 1/2 inch latch throw engage my existing strike, or do I need a deadlatch with more throw?
The Explorer entrance lever latches with a 1/2 inch throw, which is the normal cylindrical bored-lock throw and drops into an existing strike prepped for another cylindrical latch. What it will not do is bridge a wide gap between door and jamb, or serve as security holding on a door that needs deadbolt-level throw. If the opening needs more than a latch, plan a separate deadbolt above the lever.
11) What size latch faceplate does the Cal-Royal Explorer lever lock come with, and will it cover my old mortise for the latch?
The latch faceplate is 2-1/4 by 1 inch with square corners, and it ships packed with a 1/8 inch filler so it can also make up a 1-1/8 inch wide edge mortise. That means one part covers both the 1 inch and the 1-1/8 inch latch prep you find on commercial doors. Square corner only, so a door routed with a radius-corner latch prep needs the corners squared with a chisel.
12) I need levers on the whole floor but only some doors get keyed. What matches the Cal-Royal Explorer entrance lever on the non-keyed openings?
The XP00/XPRL00 is keyed entrance only, so for hall, closet, and passage doors you need a separate non-keyed lever. Staying in Grade 2 keeps the feel consistent: the Hager 2510 passage lever also covers 1-3/8 to 2 inch doors, and the Falcon B101 B Series passage lever is non-handed, which speeds up a floor full of mixed swings. For storerooms that must stay locked outside, the Hager 2580 is a Grade 2 storeroom lever.
13) The opening does not need to lock - what is the non-keyed version to order instead of the Cal-Royal XP00?
The XP00/XPRL00 is keyed with a single cylinder, so for a corridor or closet door that only needs latching, move to a passage lever. In Grade 2 commercial, the Hager 2510 passage lever lock covers the same 1-3/8 inch to 2 inch door thickness range the Cal-Royal does. The Falcon B101 is another Grade 2 medium duty passage lever with a non-handed design, and the Accentra 5301LN Augusta is a Grade 2 passage/closet lever in the 5300 Series.
14) Can I use a Callan Artino or a Master Lock BC Series keyed entry lever in place of the Cal-Royal XP00?
Both are keyed entrance levers, but they are Grade 3 while the Cal-Royal XP00/XPRL00 is Grade 2 and specified for commercial use. The Callan Artino is a Grade 3 entrance leverset and the Master Lock BC Series return style lever is a Grade 3 keyed entry lockset. If your drawing or facility standard calls out an ANSI/BHMA Grade 2 commercial lock, a Grade 3 lever will not satisfy it; for residential-scale or light interior use they are the same function.
15) My doors are 1-3/4 inch to 2 inch only - which entrance levers besides the Cal-Royal XP00 will fit?
The Cal-Royal XP00/XPRL00 already spans 1-3/8 inch to 2 inch, so it covers that range. If you are cross-shopping, the Deltana 6201 Manchester, 6411 Morant and 6431 Linstead entry levers all list a 1-3/8 inch to 2 inch door thickness range as well, and each is an entry function. Where the Cal-Royal differs is that it is a Grade 2 commercial cylindrical lockset with a 2-3/4 inch backset and an ASA strike as standard.
16) Is a dummy lever an alternative to the Cal-Royal XP00 on an inactive leaf?
On an inactive leaf that never latches, a dummy trim is the right part and the XP00/XPRL00 is not - the Cal-Royal is a keyed entrance lockset with a working 1/2 inch throw latch. For dummy trim, the BEST 7KC Series single dummy is Grade 2 medium duty, matching the Cal-Royal's Grade 2, and the BEST 9K Series 1DT is Grade 1 heavy duty. The Callan Bentley is a Grade 2 dummy lever as well. A dummy has no latch and no cylinder, so it will not secure the opening.
17) The Arrow HK11 entrance lock is keyed like the Cal-Royal XP00 - what is the difference?
Trim and thickness range. The Arrow HK11 from the RL Series is a turn-pushbutton entrance cylindrical lock with a ball knob and a conventional cylinder, Grade 2, for doors 1-3/8 inch to 1-3/4 inch. The Cal-Royal XP00/XPRL00 is a Grade 2 entrance lock with a lever handle, which is the ADA-friendly operable trim, and it reaches 1-3/8 inch to 2 inch doors. If the specification requires lever operation, the ball knob version does not substitute.
18) I need a classroom or classroom security function instead of entrance - what takes the place of the Cal-Royal XP00?
The Cal-Royal XP00/XPRL00 is an entrance function only. For a classroom opening, the Dexter C1000 Series classroom lever is Grade 1, clutching and keyed, and the C1000 classroom security version adds inside-key control of the outside lever; both fit 1-3/8 inch to 1-3/4 inch doors. If the opening is a utility or institutional room, the Arrow MK33 asylum function is Grade 2 heavy duty with a conventional cylinder in the Schlage C keyway.
19) Is there a fire rated lever lock alternative to the Cal-Royal XP00 for a rated opening?
Among the comparable levers, the Falcon K101 carries a fire rating and is a Grade 1 heavy duty passage cylindrical lock with non-handed levers for doors 1-3/8 inch to 2-1/4 inch, and the Corbin Russwin CL3110 is a fire rated Grade 1 vandal resistant passage/closet lever for 1-3/4 inch to 2 inch doors. Both are passage function, so neither locks - if the rated opening also has to be secured, that is a different function than what those two provide, while the Cal-Royal XP00/XPRL00 gives the keyed entrance function at Grade 2.
20) Does the Falcon B511 entry/office lever match the Cal-Royal XP00?
They are close on paper: the Falcon B511CP6D is a Grade 2 cylindrical lever lock with entry/office function and medium duty rating, and the Cal-Royal XP00/XPRL00 is a Grade 2 cylindrical entrance lever with a single cylinder. The practical differences are trim and prep - the Cal-Royal carries a 2-3/4 inch backset with a 2-1/4 inch by 1 inch square corner faceplate packed with a 1/8 inch filler for 1-1/8 inch width, and ships with an ASA strike standard with T and full lip strikes available on request.
21) Would a Corbin Russwin 585F715 lever work as a replacement lever for a Cal-Royal XP00?
No. The Corbin Russwin 585F715 is a Grade 1 lock lever for the ED8000 pushpad exit device and the CL3300 cylindrical lock series - it is trim for those specific Corbin Russwin devices, not a complete lockset. The Cal-Royal XP00/XPRL00 is a full cylindrical bored lockset with its own latch, 1/2 inch throw and strike. Ordering the 585F715 against an XP00 opening leaves you without a latch or a cylinder.
22) Can a Kwikset Breton or Delta lever replace the Cal-Royal XP00 on an apartment door?
Only for interior doors, and not for the same job. The Kwikset 200BRNL Breton is a Grade 3 passage lever for 1-3/8 inch to 1-3/4 inch doors, the 300BRNL Breton is Grade 3 privacy for the same range, and the 200DL Delta is a passage lever for interior hall and closet openings. None of them is a keyed entrance lock. The Cal-Royal XP00/XPRL00 is Grade 2 commercial with a single cylinder keyed entrance function and reaches 1-3/8 inch to 2 inch doors, which is what a tenant entry door normally calls for.
23) What finishes does the Cal-Royal XP00 entrance lever come in, and will it match the brass hardware already on my other doors?
Six finishes: US3 polished brass, US4 satin brass, US10 satin bronze, US10B antique bronze oiled, US26 polished chrome, and US26D satin chrome. All six are offered in both the XP and XPRL lever styles, so you can carry one finish across a building and still change lever shape. The levers are zinc casting plated to match the trim finish, with the lock body in wrought brass, bronze, or stainless steel.
24) Is the Cal-Royal Explorer a lever or a knob, and does the lever help with accessibility?
Lever handle, not a knob. A lever is the operable-hardware style used where a door has to be worked without grasping or twisting, which is why levers dominate commercial entry openings and knobs are increasingly limited to residential and utility doors. If you specifically want a knob on a keyed entrance opening, the Arrow HK11 with a ball knob is a keyed entrance cylindrical lock instead.
