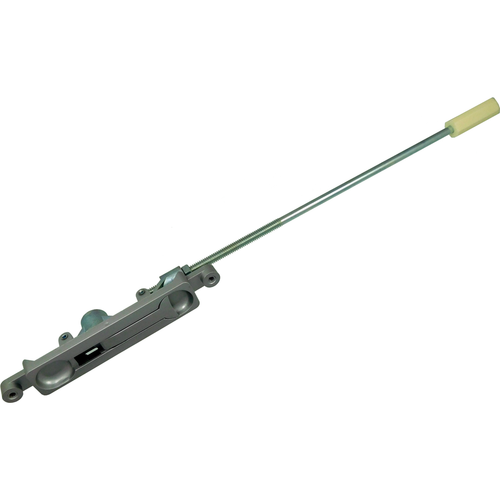

Calibre Door Closers FL1002/FL1004 Standard Offset Flush Bolt with Guide
Model: CDCFL1002/1004
Calibre Door Closers FL1002/FL1004 Standard Offset Flush Bolt with Guide
FL-1002: Standard Flushbolt, 1/8" Offset for use on a non weather-stripped door stile. Standard 5/8" throw when activated...
Calibre Door Closers
$13.40
$10.83
Calibre CA3311-S-DP Adjustable Overhead Concealed Closer, 105° Back Stop, Non Hold Open (NHO), Adjustable Spring Tension, Dual Purpose Bottom Pivot
Model: CDC3311-S-DP
Calibre CA3311-S-DP Adjustable Overhead Concealed Closer
The Calibre CA3311-S-DP overhead concealed closer delivers ADA-compliant performance for aluminum storefront doors in commercial and...
Calibre Door Closers
$262.00
$166.68
Calibre Door Closers Floor Mount Bottom Pivot Set, Jackson Floor Mount Style, CA3010-G
Model: CDC-CDC3010-G
The Calibre CA3010-G is an optional adjustable floor mount bottom pivot set designed for use with overhead concealed closers in center hung aluminum storefront door applications. Commonly referred to...
Calibre Door Closers
$26.65
Calibre Door Closers TH1000 Thumb Turn Mortise Cylinder
- Zinc Die Cast Cylinders, with core faces, keys and thumbturn US 26D. Cylinder faces (scalps) anodized aluminum.
- Mortise Key Cylinder and Mortise Thumbturn with AR MS-Type cam.
- Mortise Key Cylinder with Schlage "C" Keyway. Specify cylinder pairs as KA-2 or KA (keyed alike in maximum of 50 pairs each).
- Standard 3/16" cylinder trim ring furnished.
Resources:
Manufacturer Resources
Product Specs
- Series:
- CA/Hardware Series
- Subcategory:
- Parts and Accessories
- Commercial/Residential:
- Commercial
- Product Type:
- Mortise Thumbturn
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Parts and Accessories
- Product Model:
- TH1000
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Calibre Door Closers TH1000-AL – Frequently Asked Questions
1) Is the Calibre TH1000 the keyed cylinder or just the inside thumbturn?
TH1000 is the thumbturn half. It gives you inside turn-to-lock operation in a mortise cylinder body, no key and no keyway. If you want key operation on the outside, that is the matching Calibre mortise key cylinder, which comes in a Schlage C keyway. On a storefront door you typically order both: key cylinder outside, TH1000 thumbturn inside.
2) What finish does the Calibre TH1000 thumbturn come in, and will it match my other 26D hardware?
The turn itself is US 26D, satin chrome, which is the standard commercial finish and will sit alongside 26D levers, exit device trim and pulls without looking off. The cylinder face (the scalp ring you actually see on the door) is anodized aluminum, so it reads as a clear/aluminum ring rather than chrome. On a dark bronze or black anodized storefront that ring is the detail worth thinking about.
3) Do I need to order a trim ring separately for the Calibre TH1000 mortise thumbturn?
No, a 3/16 inch cylinder trim ring ships standard with it. That covers the usual storefront stile prep. If your door face sits the cylinder deeper or shallower than that, ring thickness is what you adjust, and the thumbturn body is unchanged.
4) Can I get Calibre mortise cylinders keyed alike across a building?
Yes, on the key cylinder side. Calibre mortise cylinder pairs are specified KA-2 or KA, keyed alike in a maximum of 50 pairs each, on the Schlage C keyway. The TH1000 thumbturn has no keyway, so it carries no keying spec of its own, but it is the inside half that pairs with those keyed-alike cylinders. If you are standardizing a property on Schlage C, this line drops into that system.
5) Is the Calibre TH1000 thumbturn rated for commercial door traffic or is it a residential part?
Commercial. The TH1000 is a zinc die cast mortise cylinder body, the same construction Calibre uses across the CA/Hardware line, and it is catalogued for commercial openings, not residential entry sets.
