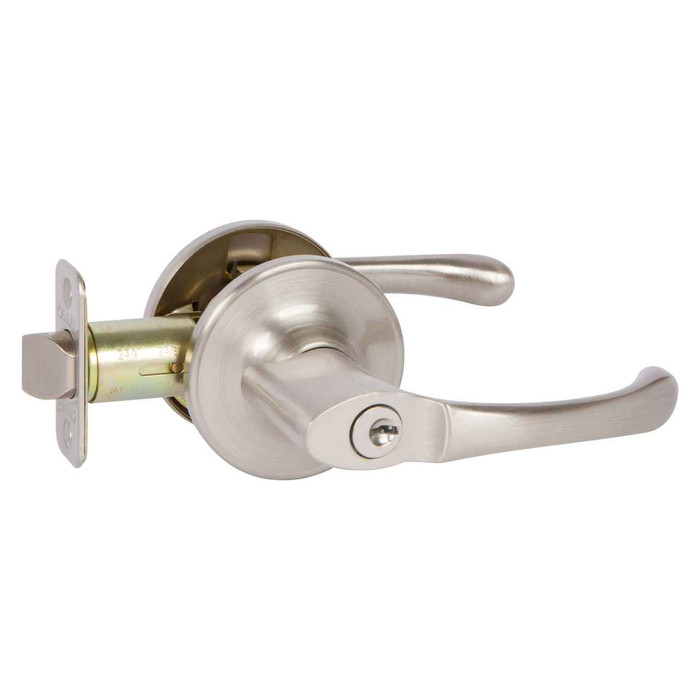

Callan Callan Nolan Grade 2 Entrance Leverset US15 Satin Nickel Finish G2KN5001

Callan Nolan Grade 2 Entrance Leverset US15 Satin Nickel Finish

(No reviews yet) Write a Review

Model: G2KN5001
$58.00
$49.44

In Stock (leaves warehouse same day if ordered before 3pm ET)

$58.00
$49.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Callan Nolan Grade 2 Entrance Leverset

Keyed Entry (Single Cylinder) Function: Keyed entry (single cylinder) door lever sets are keyed on the exterior with an associated thumb turn on the inside that can quickly and easily lock or unlock the latch mechanism. Single cylinder units are commonly used on a front, side or back entrance but can also be found on interior doors as well, depending on application.

Callan's Nolan Series offers a stunning display of elegance and craftsmanship. Designed for ease of use as well as high security, each lever features reversible handing, heavy duty all metal construction, protective sleeves with interlocking chassis, and hardware to install on both wood and metal doors.

Features:

  • Combination screws that suit both wood or metal door mounting
  • Heavy duty all metal construction
  • Protective sleeve for added latch security
  • Interlocking chassis provides additional strength
  • Patented GR2 adjustable latch
  • Reinforced spring assembly for improved performance
  • Reversible handing (either left or right)
  • ADA compliant

Specifications:

  • Backset: 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
  • BHMA Certification: Grade 2
  • Cross Bore: 2-1/8"
  • Cylinder: 5 Pin Schlage C
  • Door Thickness: 1-3/4", 1-3/8"
  • Edge Bore: 1"
  • Function: Keyed Entry
  • Handing: Left, Reversible, Right
  • Handle Material: Metal
  • Handle Style: Lever
  • Latch Faceplate: Round Corner, Squared Corner
  • Panic Proof: No
  • Product Class: Residential
  • Product Weight: 2.3 lbs

Technical Specification Download

Manufacturer Resources

Product Specs

Subcategory:
Leversets
Series:
Bentley
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Function:
Entrance
Product Type:
Leversets
Grade:
Grade 2
Product Attribute:
Cylindrical Locks
Product Function:
Entrance
Product Finish:
US15 Satin Nickel
Product Category:
Mechanical Locks
Department:
Door Hardware

Callan G2KN5001 – Frequently Asked Questions

1) Will the Callan Nolan entrance leverset fit a 1-3/8 inch door, or does it need a 1-3/4 inch door?
Both. The Nolan keyed entry leverset is built for 1-3/8 inch and 1-3/4 inch doors, which covers the standard commercial leaf and the thinner older interior door. Mounting screws in the box suit wood or metal doors, so you are not buying separate fasteners for a hollow metal frame job.
2) Will the Callan Nolan lever drop into my existing 2-1/8 inch bore, and does it handle a 2-3/8 or 2-3/4 inch backset?
It goes into a standard 2-1/8 inch cross bore with a 1 inch edge bore, which is the prep almost every cylindrical lockset already in your doors uses. The patented GR2 latch is adjustable, so the same unit sets to a 2-3/8 inch or 2-3/4 inch backset without ordering a second part. Latch faceplates come round corner and square corner, so it matches whichever edge prep is cut.
3) Do I need to order a left hand and a right hand version of the Nolan leverset?
No. The Nolan lever is reversible in the field, so one part number covers left hand and right hand openings. For a property manager stocking a truck or a supply closet, that means one line item instead of two.
4) Can I key the Callan Nolan into my existing Schlage or Kwikset keys?
The Nolan takes a 5 pin cylinder and is ordered in either the SC1 Schlage C keyway or the KW1 Kwikset keyway, so it can be cut to the key system already in the building. Keying is a required choice at order time: keyed different for separate keys per door, or keyed alike so one key runs a group of doors. Pick the keyway that matches what your existing doors use, because the two are not interchangeable once the lock is cut.
5) Is a Grade 2 residential lever like the Callan Nolan good enough for an apartment building or a commercial entrance?
Grade 2 with all metal construction, an interlocking chassis, a protective latch sleeve, and a reinforced spring assembly. Callan classes it residential, which is the right read: multi-family unit doors, single family entrances, light office traffic. For a high traffic commercial opening, a school corridor, or anything institutional, step up to a Grade 1 cylindrical lever such as the Corbin Russwin CL3100 Series or the Falcon K Series rather than pushing a Grade 2 past its duty.
6) What is the closest commercial equivalent to the Callan Nolan Grade 2 entrance leverset?
The Hager 2525 is a Grade 2 cylindrical entry lock with a lever handle, matching the Nolan's Grade 2 rating and entrance function in a lever format. The Hager 2525 fits doors 1-3/8 inch to 2 inch thick, while the Callan Nolan Grade 2 entrance leverset is built for 1-3/4 inch and 1-3/8 inch doors. The Callan is classed for residential use, so on a commercial corridor where the door runs closer to 2 inch, the Hager 2525 covers the range.
7) Which entrance lever also takes a Schlage C keyway if I am keying a building alike?
The Cal-Royal AG00 entrance lever is a Grade 2 lever with a 6-pin Schlage C keyway keyed different and a 2-3/8 inch backset, fitting doors 1-3/8 inch to 1-3/4 inch. The Callan Nolan Grade 2 entrance leverset uses a 5 pin Schlage C cylinder and offers SC1 5-pin standard or KW1 5-pin keyways with keyed alike available. Both accept Schlage C bitting, but the Cal-Royal is a 6-pin chamber and the Callan is 5-pin, which matters if the building's key system is cut on 6 pins.
8) I need a heavier-duty keyed lever for a high-traffic entry door instead of the Callan Nolan. What should I look at?
The Dexter C1000 Series entry/office lever lock is Grade 1 with a clutching, keyed lever for doors 1-3/8 inch to 1-3/4 inch. The Falcon B511CP6D is a Grade 2 medium duty cylindrical lever with entry/office function. The Callan Nolan Grade 2 entrance leverset is a Grade 2 keyed entry lever classed for residential use with heavy duty all metal construction and an interlocking chassis. On an opening where a lever gets pushed on or hung from, the Dexter C1000's clutching lever spins free rather than transmitting force to the chassis.
9) What should I use instead of the Callan Nolan on a classroom door?
The Cal-Royal AG03 is a Grade 2 classroom lever with a 6-pin Schlage C keyway keyed different and a 2-3/4 inch backset, and the Dexter C1000 Series classroom lever lock is Grade 1 with a clutching keyed lever for doors 1-3/8 inch to 1-3/4 inch. Classroom function locks and unlocks the outside lever by key only, with no inside thumb turn. The Callan Nolan Grade 2 entrance leverset is a keyed entry function with a thumb turn on the inside, which most school districts do not accept on a classroom opening.
10) Is there a keyless entrance lever I can use instead of the Callan Nolan so tenants do not need keys?
The Delaney LP250 is a Grade 2 electronic keypad leverlock, matching the Callan Nolan Grade 2 entrance leverset on BHMA grade while replacing the cylinder with a code entry. The Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for doors 1-3/16 inch to 2 inch, and the Lockey 1150 is a heavy duty mechanical keypad lever set for doors 1-1/8 inch to 2 inch. The Callan Nolan is also ADA compliant and is keyed on a 5 pin Schlage C cylinder, so a keypad set removes rekeying at turnover but gives up key system integration.
11) Does a knob lockset work in place of the Callan Nolan entrance leverset?
The Arrow HK11-BB is a turn-pushbutton entrance cylindrical lock with a ball knob and conventional cylinder for doors 1-3/8 inch to 1-3/4 inch, covering the same door thickness range and entrance function as the Callan Nolan Grade 2 entrance leverset. The difference is the trim: the Callan Nolan is a metal lever and is ADA compliant, while the HK11-BB is a knob. ADA requires operable hardware that does not need tight grasping or wrist twisting, so a knob is generally not accepted on accessible routes.
12) What does keyed entry single cylinder mean on the Callan Nolan, and where should I use it?
Keyed on the outside, thumbturn on the inside. You unlock from the corridor or the street with the key, and anyone inside locks or releases the latch with a turn, no key needed. That is the normal choice for a front, side, or back entrance and for an office door or apartment unit door where the occupant needs to secure it from within. If you want a door that is never locked from the inside, an entrance function is the wrong pick.
13) Does the Callan Nolan lever meet ADA requirements for accessible door hardware?
Yes, the Nolan is ADA compliant. It is a lever rather than a knob, which is what an accessible opening needs since a lever operates without grasping or twisting. If you are replacing knobs to close an accessibility gap in a building, a keyed entry lever is the direct swap on the same bore.
14) Is the Callan Nolan panic proof, and can I put it on a fire rated door?
The Nolan is not panic proof, so it will not release the latch on a single motion the way a panic exit device does. Keep it off egress doors that require panic hardware. For an opening that needs a rated exit, use an exit device with lever trim, not a bored lockset.
15) I need matching levers on the bedroom and closet doors, not keyed ones. What goes with a Callan Nolan entrance set?
An entrance set is keyed, so it is wrong for an interior door nobody locks with a key. For passage doors and closets in the same building, the Bravura Miramar and Atlanta Grade 2 passage leversets or the Hager 2510 Grade 2 passage lever cover the non keyed openings at the same grade. For bath and bedroom doors you want privacy function, such as the Hager 2540 or the Kwikset 300BRNL Breton privacy lever. Trim styling will not match the Nolan across brands, so if visual consistency matters, order the other functions from one family.
16) Is the Bravura Atlanta or Miramar leverset a substitute for the Callan Nolan entrance leverset?
No. The Bravura Atlanta, Miramar, Orlando and Tampa leversets are all Grade 2 passage function, which means they latch but do not lock and take no cylinder. The Callan Nolan Grade 2 entrance leverset is a keyed entry single cylinder function keyed on the exterior with an inside thumb turn. They share the Grade 2 rating and the lever format, so a Bravura passage lever matches the Nolan on a hall or closet door in the same opening but cannot secure an entry.
17) Can I use a Deltana Claremont or Manchester lever entry set in place of the Callan Nolan?
The Deltana 5851 Claremont, 6201 Manchester, 6411 Morant and 6431 Linstead are all entry function levers, so the locking behavior lines up with the Callan Nolan Grade 2 entrance leverset. The Manchester, Morant and Linstead fit doors 1-3/8 inch to 2 inch, a wider range than the Nolan's 1-3/4 inch and 1-3/8 inch. The Deltana sets are decorative entry trim families, so the choice usually comes down to matching the existing rose and lever style on the rest of the doors.
18) Which of these levers is fire rated if the Callan Nolan does not fit my rated opening?
The Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with a fire rating and non-handed levers for doors 1-3/8 inch to 2-1/4 inch, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet lever with a fire rating for doors 1-3/4 inch to 2 inch. Both are passage function, not keyed, so they suit a rated corridor or stair door that does not need to lock rather than replacing the keyed entry function of the Callan Nolan Grade 2 entrance leverset.
19) I want a matching non-keyed lever for the interior doors alongside the Callan Nolan entrance sets. What pairs with it?
For Grade 2 passage openings the Design Hardware J75 is a Grade 2 passage lever lockset with a flat lever for 1-3/4 inch doors, the Hager 2510 is a Grade 2 passage cylindrical lever for 1-3/8 inch to 2 inch doors, and the Arrow GL01 is a Grade 2 Sierra lever passage lock for 1-3/4 inch to 2 inch doors. All three are non-keyed passage function to sit on hall and closet doors while the Callan Nolan Grade 2 entrance leverset handles the keyed openings at the same Grade 2 rating.
20) Which lever should I use on a utility or mechanical room instead of the Callan Nolan?
The Arrow MK33-BD-CS is a Grade 2 heavy duty asylum function cylindrical lock with a ball knob and a conventional Schlage C keyway cylinder, and the Dexter C1000 asylum lock is Grade 1 for doors 1-3/8 inch to 2 inch. Asylum function is keyed on both sides with no free egress from the inside, which suits a mechanical or utility room where nobody should be shut in unnoticed by an unlocked interior thumb turn. The Callan Nolan Grade 2 entrance leverset unlocks from the inside by thumb turn.
21) What is the difference between the Callan Nolan and the Kwikset Breton or Delta lever sets?
The Kwikset 200BRNL Breton is a Grade 3 passage lever set and the 300BRNL Breton is a Grade 3 privacy lever set, both for doors 1-3/8 inch to 1-3/4 inch; the Kwikset 200DL Delta is a passage lever door lock. None of those are keyed. The Callan Nolan Grade 2 entrance leverset is Grade 2 keyed entry on a 5 pin Schlage C cylinder, and it is also offered in a KW1 5-pin keyway, which is the Kwikset bitting if the rest of the building's keys are Kwikset.
22) What finish is the Callan Nolan G2KN5001, and what does US15 look like?
US15 satin nickel, a brushed silver tone. It reads close to satin chrome and to the 26D satin chrome common on commercial hardware, but the two are not identical side by side, so if you are filling in on an existing run of doors, confirm what is already hung is US15 and not 26D before you standardize.
23) Are the Emtek and Baldwin dummy levers an alternative to the Callan Nolan?
No. The Baldwin Estate 5103 half dummy levers and the Emtek Arts and Crafts and Cortina dummy pairs are dummy function, meaning the lever is fixed trim with no latch and no cylinder. The Callan Nolan Grade 2 entrance leverset is a working keyed entry lockset with a patented GR2 adjustable latch. Dummy levers go on the inactive leaf of a pair or on a closet door held by a ball catch, alongside a keyed set rather than in place of one.
24) Is the Accentra Augusta 5301LN or 4601LN interchangeable with the Callan Nolan entrance leverset?
Not for a keyed opening. The Accentra 5301LN Augusta and 4601LN are both Grade 2 cylindrical lever locks with passage/closet function, so they match the Callan Nolan Grade 2 entrance leverset on grade and on the cylindrical lever format but carry no cylinder. The Accentra 455LN Augusta is Grade 1 dummy trim, which is fixed and does not latch at all. For a keyed exterior door the Callan Nolan's keyed entry single cylinder function is what these lack.
25) Is the Hager 2540 an entrance lever like the Callan Nolan?
The Hager 2540 is a Grade 2 cylindrical lock with a Withnell lever for doors 1-3/8 inch to 2 inch, carrying an entrance function in its specs and privacy in its description, so confirm the function code before ordering it against a keyed opening. The Hager 2525 is the clearly identified Grade 2 commercial cylindrical entry lock with a lever handle for the same 1-3/8 inch to 2 inch range, and it is the direct match for the keyed entry function of the Callan Nolan Grade 2 entrance leverset.
