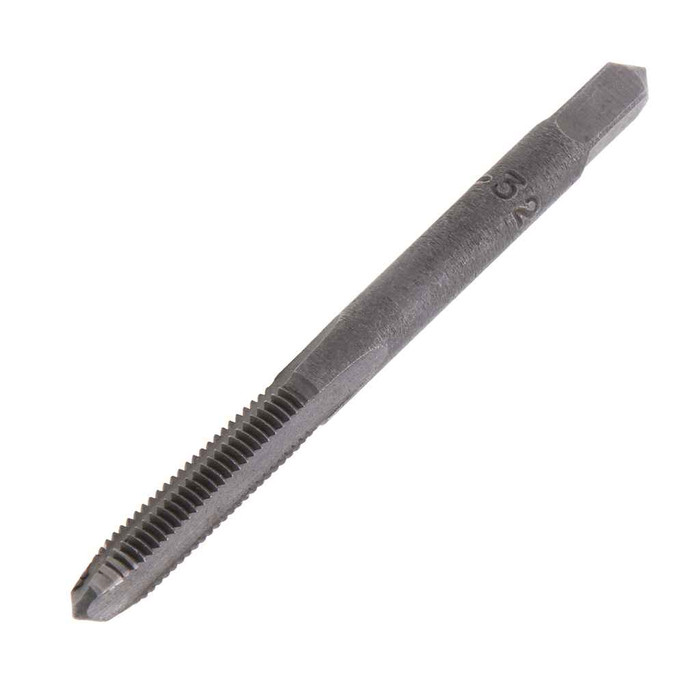

Carbon Steel Tap Taper Type 7/8-9 (1pc)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Pouch
- Product Family:
- Electrical Supplies
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
Metallics 789CTT – Frequently Asked Questions
1) What thread does the Metallics 789CTT tap cut?
The 789CTT cuts a 7/8-9 thread, meaning 7/8 inch nominal diameter at 9 threads per inch, which is the UNC coarse pitch for that size. It is a taper type tap in carbon steel, sold one piece to a pouch.
2) What size drill hole do I need before running a 7/8-9 tap?
For 7/8-9 UNC the standard tap drill is 49/64 inch, giving roughly 75 percent thread. Drill that first, then start the 789CTT taper tap square to the surface and back it off periodically to clear chips.
3) What is a taper tap used for versus a plug or bottoming tap?
A taper tap has a long chamfer across several leading threads, so it starts easily and self-aligns in the hole. That is what you want for a through hole or for starting a thread by hand, which is the common case when threading strut, channel, or an enclosure wall for a rod hanger. It will not carry threads to the bottom of a blind hole; a bottoming tap does that. The Metallics 789CTT is the taper type in 7/8-9.
4) Will the 789CTT tap stainless steel or hardened material?
It is a carbon steel tap, which suits mild steel, aluminum, and brass. Carbon steel dulls fast in stainless or hardened stock, so for those materials step up to a high speed steel tap in the same 7/8-9 thread.
5) Is the Metallics 789CTT sold individually or in a set?
One tap per pouch. The 789CTT covers the 7/8-9 taper only, so if a job needs plug or bottoming taps in that size, or other thread sizes, those are separate items.
6) Can I use the 789CTT to chase damaged 7/8-9 threads on installed anchors or rod?
Yes, cleaning up buggered threads is a normal use for a taper tap, and the long lead makes it easy to pick up existing threads without cross-threading. Just note that a carbon steel tap is happiest in mild steel; on a hardened anchor it will wear quickly.
