Carlon Snap Strap® Conduit PVC Support Straps

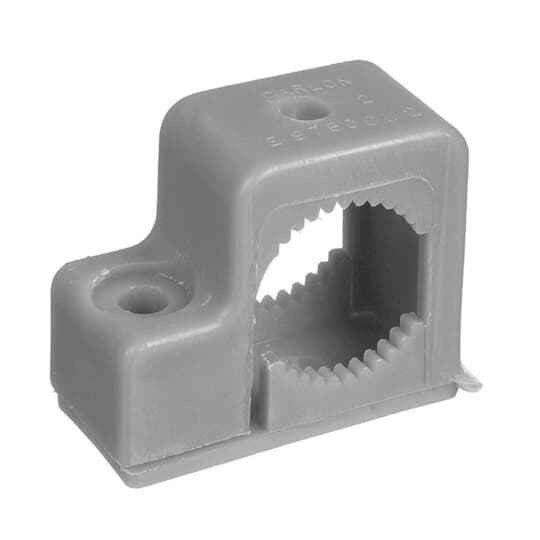

Carlon Snap Strap UV-Resistant PVC Conduit Support Straps

(No reviews yet) Write a Review

Model: E978HC-CAR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$150.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Carlon Snap Strap UV-Resistant PVC Conduit Support Straps

Professional conduit support with UV protection for outdoor applications

Carlon Snap Strap UV-Resistant PVC Conduit Support Straps deliver reliable conduit mounting and support for both indoor and outdoor electrical installations. These gray high-strength non-metallic clamps feature UV inhibition for direct sunlight exposure and allow conduit to expand and contract freely, eliminating bow and ensuring long-term performance in demanding environments. Available in single-mount (1/2" – 1") and double-mount (1-1/4" – 2") configurations. Sold in 100-packs.

Features & Benefits

  • UV Inhibited Construction: Engineered for direct sunlight exposure, providing long-lasting performance in outdoor installations without degradation.
  • High-Strength Non-Metallic Design: Delivers superior clamping force while remaining lightweight and corrosion-resistant for extended service life.
  • Expansion & Contraction Accommodation: Allows conduit to move freely with temperature changes, eliminating bow and preventing stress on connections.
  • Gray PVC Material: Professional appearance that blends with standard electrical installations while providing chemical resistance.
  • Snap Strap Design: Quick snap-in installation reduces labor time while ensuring reliable, secure conduit support.
  • Electrical Grade Construction: Manufactured to electrical industry standards for professional conduit support applications.

Technical Specifications

  • Material: UV-inhibited PVC
  • Color: Gray
  • Mount Types: Single Mount (1/2", 3/4", 1") | Double Mount (1-1/4", 1-1/2", 2")
  • Package Quantity: 100 per pack
  • Application: UV inhibited for use in direct sunlight
  • Country of Origin: Canada
  • Product Type: Conduit Clamps & Support Straps

Installation

  1. Select the correct trade size strap to match your conduit diameter.
  2. Position the strap at the required support interval along the conduit run.
  3. Snap the strap around the conduit and press firmly until the locking tab engages.
  4. Fasten the strap to the mounting surface using the appropriate fastener through the mounting hole(s).
  5. Verify the conduit is seated securely and has freedom to expand and contract longitudinally within the strap.

Professional Applications

  • Outdoor electrical conduit installations requiring UV protection
  • Commercial building electrical systems
  • Industrial facility conduit support
  • Residential exterior electrical runs
  • Solar panel and renewable energy installations
  • Telecommunications and data center conduit runs
  • Municipal and utility infrastructure projects

Why Choose Carlon?

Carlon delivers proven reliability in electrical fittings and conduit support solutions. These UV-resistant PVC support straps combine professional-grade materials with engineered design features that accommodate thermal expansion while maintaining secure conduit positioning — ensuring dependable performance in challenging outdoor environments.

Manufacturer Resources

Product Specs

Application:
Suitable for indoor and outdoor conduit installations; UV inhibited for direct sunlight exposure. Available in single-mount and double-mount configurations.
Brand Label:
Carlon
Country Of Origin:
Canada (CA)
Department:
Electrical
Effective Date:
20080116
Idea Granular Category Code Igcc :
4441 >> Electrical fittings
Product Color:
Grey
Product Type:
Conduit Clamps & Support Straps
Special Functions:
High strength, non-metallic clamp allows conduit to expand and contract freely, eliminating the bow
Product Group:
Conduit Hangers & Straps
Package Quantity:
100

Carlon E978HC-CAR – Frequently Asked Questions

1) Will Carlon Snap Strap conduit straps hold up outdoors in direct sunlight?
Yes. The Carlon Snap Strap is molded from UV-inhibited PVC specifically for direct sunlight exposure, so it works on exterior runs, rooftop and solar racking feeds, and utility work as well as indoors. It's non-metallic, so there's nothing to rust on a wet wall or a coastal site.
2) What size conduit do Carlon Snap Straps fit?
Six trade sizes, split by mount style: single mount in 1/2 inch, 3/4 inch and 1 inch, and double mount in 1-1/4 inch, 1-1/2 inch and 2 inch. Pick the strap that matches the trade size of the conduit, not the measured outside diameter, since PVC conduit is designated by trade size.
3) Do these straps clamp the conduit tight, or let it move?
They let it move. The Snap Strap is a high-strength non-metallic clamp that allows the conduit to expand and contract freely, which eliminates the bow you get when PVC is pinned hard at every support and then heats up in the sun. Seat the pipe in the strap and check it can still slide lengthwise before you move on.
4) What is the difference between single mount and double mount Snap Straps?
It's the number of fastening points. Single mount straps anchor through one hole and cover the smaller sizes, 1/2 inch through 1 inch. Double mount straps anchor on both sides of the conduit and cover 1-1/4 inch through 2 inch, where the pipe is heavier and a single screw would let it rock. You don't choose between them, the trade size you need decides it.
5) Are mounting screws included with Carlon Snap Straps?
No. The Snap Strap ships as the strap only, so you supply the fastener to suit the surface, masonry anchors into block or concrete, wood screws into framing or a fascia, self-drillers into steel. Order those separately with the straps.
6) What are the Carlon part numbers for each Snap Strap size?
Carlon numbers them E978DC for 1/2 inch, E978EC for 3/4 inch and E978FC for 1 inch on the single mount side, then E978GC for 1-1/4 inch, E978HC for 1-1/2 inch and E978JC for 2 inch on the double mount. The letter steps up with the trade size, which is handy when you're reading an old submittal and only have the number.
7) Can I use PVC snap straps to support EMT or rigid metal conduit?
The Carlon Snap Strap is sized and shaped for PVC conduit in matching trade sizes. Metal conduit runs to different outside diameters at the same trade size, so a snap-in PVC strap is not the right support for EMT or RMC, use a strap made for that raceway instead. Where the run is PVC, the snap strap is the quicker install since it clips on rather than needing a two-piece clamp.
