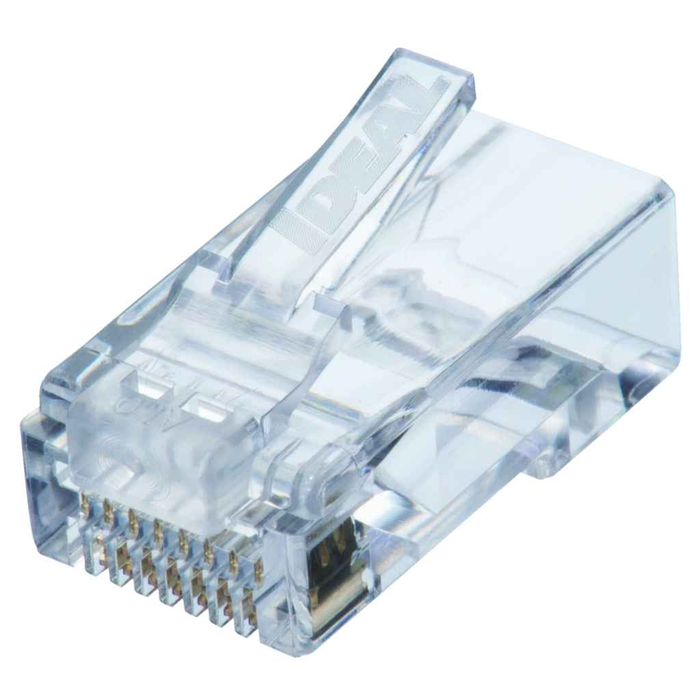

Ideal Industries CAT6 Feed-Thru Modular Plugs 8P8C RJ-45 Connectors - 100 Count Jar

Ideal Industries CAT6 Feed-Thru Modular Plugs 8P8C RJ-45 Connectors - 100 Count Jar

Professional Feed-Thru Design for Reliable CAT6 Connectivity

Ideal Industries CAT6 Feed-Thru Modular Plugs deliver professional-grade connectivity with innovative feed-thru design that simplifies assembly and ensures reliable performance. These 8P8C (eight position/eight contact) RJ-45 connectors feature patent-pending technology that enables flush cutting of excess conductors when used with the FT-45� tool, eliminating inadvertent contact and maintaining proper conductor spacing for PoE and data applications up to 250 MHz.

Professional Features & Benefits

• Feed-Thru Design: Allows visual verification of conductor insertion before crimping, eliminating wasted connectors and reducing assembly errors during wiremap testing.
• 50 Micro-Inch Gold Plating: Contact mating areas feature gold plating for long-term reliability and connectivity performance even after hundreds of mating cycles.
• Flush Cut Technology: Patent-pending design with FT-45� tool creates flush cut of excess conductors, minimizing inadvertent contact outside the plug for superior performance.
• Primary Strain Relief: Integrated strain relief support retains cable jacket and minimizes conductor movement once crimped for secure, lasting connections.
• Single Piece Construction: CAT6 connector requires no special assembly, sled, or liner - simplifies assembly process with no measuring or exact cutting required.
• Industry Compliance: Meets standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports.
• Versatile Compatibility: Accepts 23-24 AWG solid or stranded insulated copper conductors and cable jacket diameters up to 0.280" for flexible installation options.

Technical Specifications

• Deparetment: Electrical
• Product Group: Wallplates & Covers
• Product Subgroup: Wallplates

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Network Infrastructure Installation
• Commercial Data Centers
• Office Building Connectivity
• Industrial Ethernet Networks
• PoE Device Connections
• Telecommunications Systems
• Professional AV Installations

Why Choose Ideal Industries Quality?

Ideal Industries delivers proven reliability with professional-grade connectors designed for demanding connectivity applications. The three-prong contact design ensures secure connections with both solid and stranded conductors, while the permanent crimp connection provides lasting performance. Compatible with IDEAL FT-45� and Telemaster� crimping tools for professional installation efficiency and consistent results.
