Catamount TV10-14R-XV Vinyl Insulated Ring Terminal, 12-10 AWG

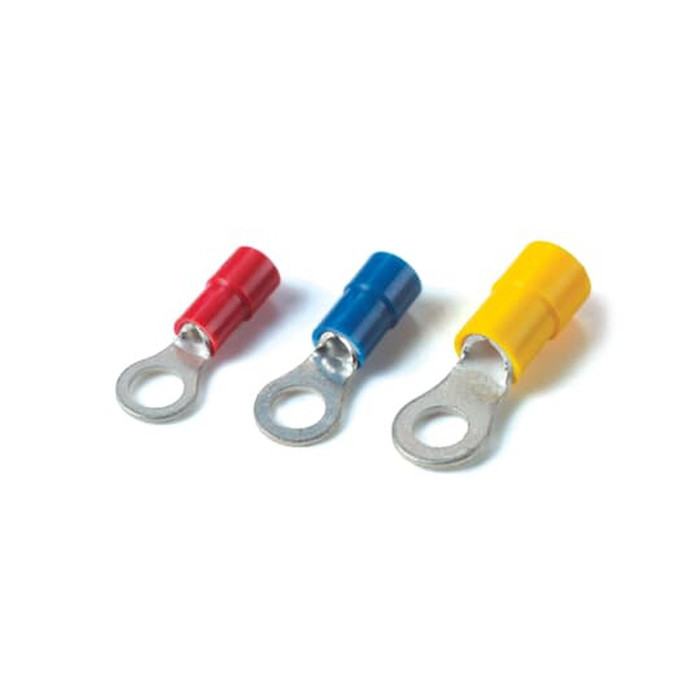

The Catamount TV10-14R-XV Vinyl Insulated Ring Terminal is a copper, tin-plated ring terminal engineered for secure, code-compliant wire terminations in 12-10 AWG wire range applications. Rated 600V and UL Listed under UL E9809, this yellow-coded terminal features a molded funnel entry vinyl insulator, a brazed barrel seam, and internal barrel serrations for a reliable mechanical and electrical connection. Designed for a 1/4 Inch bolt size, it measures 1.088 Inches in length and .500 Inches in width, with a maximum insulation diameter of .210 Inches, making it well suited for panel wiring, control circuits, and general electrical termination work where consistent crimp quality and insulation protection are required.
Key Features
- Wire Range: Accepts #12-#10 AWG conductors for a properly sized, secure crimp connection.
- Bolt Size: 1/4 Inch stud size for compatibility with standard terminal blocks and ground lugs.
- Dimensions: 1.088 Inches length x .500 Inches width, with maximum insulation diameter of .210 Inches for tight-clearance installations.
- Durable Construction: Copper barrel with tin plating for corrosion resistance and consistent conductivity.
- Brazed Seam Barrel: Brazed seam construction adds strength and reliability to the crimp barrel under mechanical stress.
- Internal Barrel Serrations: Internal serrations improve wire grip and electrical contact integrity after crimping.
- Molded Funnel Entry Insulator: Vinyl insulator with funnel entry design eases wire insertion and protects the termination point.
- Voltage Rating: Rated 600V for general-purpose electrical terminations.
Certifications & Compliance
- UL Listed, Standard UL E9809
- Rated 600V
Technical Specifications
- Product Type: ELECTRICAL TERMINAL,<1000V
- Wire Range: #12-#10 AWG
- Bolt Size: 1/4 Inch
- Length: 1.088 Inches
- Width: .500 Inches
- Maximum Insulation: .210 Inches
- Color: Yellow
- Material: Copper, Tin Plated
- Voltage Rating: 600 V
- Standards: UL E9809
- Country of Origin: Taiwan, Province Of China (TW)
- Packaging: 900 piece
Typical Applications
- Panelboard and Control Panel Wiring
- Electrical Grounding and Bonding Connections
- Industrial and Commercial Wire Termination
- General Purpose Electrical Assemblies up to 600V
Why Catamount?
Catamount's TV10-14R-XV ring terminal combines a brazed-seam copper barrel, tin plating, and internal serrations to deliver a dependable, corrosion-resistant crimp connection backed by UL Listing under UL E9809. The molded funnel entry insulator and color-coded yellow vinyl jacket simplify installation while protecting the termination for consistent performance in 600V-rated electrical work.
