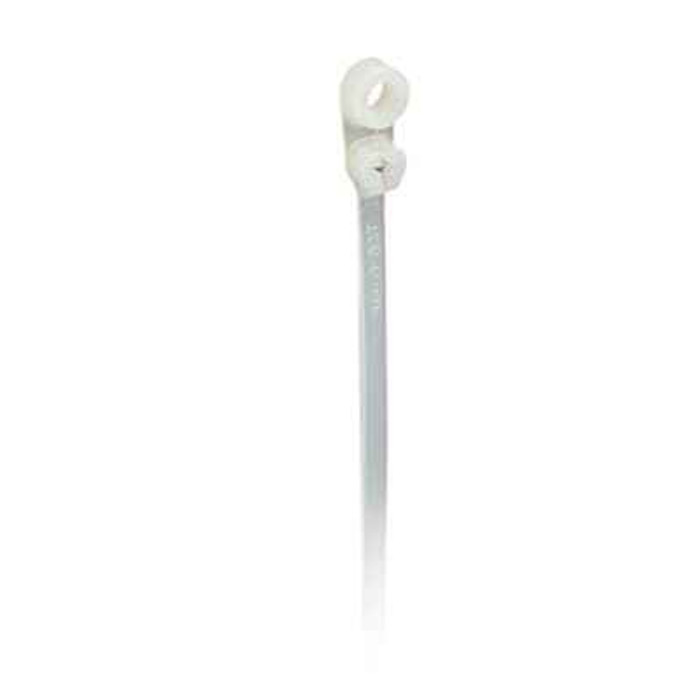

Ty-Rap Cable Tie Mount 50lb 7.8-Inch Natural Nylon with Integrated Mounting Hole

TyRap Cable Tie Mount 50lb 7.8-Inch Natural Nylon with Integrated Mounting Hole

Professional Mounted Head Cable Management Solution

The TyRap Cable Tie Mount with Integrated Mounting Hole delivers superior cable management performance for professional installations requiring secure mounting capabilities. This 50lb tensile strength mounted head tie solution provides exceptional cable organization and security designed for industrial, commercial, and residential installations, offering the trusted performance and innovation that professionals expect from the world's leading cable management manufacturer.

Professional Features & Benefits

Advanced Cable Management Performance

• 50lb Tensile Strength - Provides reliable holding power for demanding cable management applications with professional-grade security
• Bundle Diameter Range 0.138 to 1.77 inches - Accommodates various cable sizes from small wire bundles to larger cable assemblies
• Low Profile Head Design - Prevents snags on uneven surfaces and enables easier pulling through bulkheads for professional installations
• Stainless Steel Barb Lock - Non-magnetic stainless steel locking device ensures maximum strength and consistent tightness every time

Professional Installation Features

• Integrated Mounting Hole - Built-in mounting capability eliminates need for separate mounting hardware
• Natural Nylon Construction - High-quality Nylon/Polyamide 6.6 material provides durability and chemical resistance
• UL Listed Performance - UL E49405 standards compliance ensures professional electrical installation safety

Technical Specifications

Tensile Strength: 50 lb (222 N) | Bundle Diameter: 0.138 to 1.77 in (3.5 to 45 mm) | Length: 7.8 in (198 mm) | Width: 0.19 in (4.83 mm) | Thickness: 0.04 in (1 mm) | Material: Nylon/Polyamide 6.6 | Color: Natural | Lock Type: Stainless Steel Barb | Flammability Rating: UL94 V-2 | Product Group: Wire & Cable Management | Product Type: Integrated Mounting Hole | Standards: UL E49405 | Country of Origin: United States

Installation & Usage

1. Position cable tie mount at desired mounting location with integrated hole aligned for fastener
2. Insert appropriate fastener through integrated mounting hole to secure mount to surface
3. Route cables through tie opening ensuring proper bundle diameter fit within 0.138 to 1.77 inch range
4. Pull tail through head opening until cables are properly positioned and secured
5. Tighten tie by pulling tail until stainless steel barb lock engages for secure hold
6. Trim excess tail material close to head for professional finished appearance

Professional Applications

Ideal for:

• Industrial Cable Management - Manufacturing equipment, control panels, and machinery cable organization
• Electrical Installations - Panel wiring, conduit systems, and electrical enclosure cable management
• Commercial Applications - Office buildings, retail spaces, and facility cable routing systems
• Telecommunications - Network cable management, server rooms, and communication equipment installations
• Automotive Applications - Vehicle wiring harnesses, engine compartment cable organization
• Construction Projects - New construction and renovation cable management solutions
• Maintenance Operations - Equipment servicing, cable replacement, and system upgrades
• Data Centers - Server rack cable management and network infrastructure organization

Mounted Head Tie Advantage

The integrated mounting hole design eliminates the need for separate mounting hardware while providing secure cable management in a single component. The low profile head prevents snags and enables easier installation through tight spaces, while the stainless steel barb lock ensures consistent performance and reliability for professional applications.

Why Choose TyRap Quality?

TyRap's decades of cable management innovation and engineering excellence deliver the professional-grade solutions that electricians, technicians, and maintenance professionals trust. Our commitment to quality manufacturing, rigorous testing standards, and continuous product development ensures reliable performance for the most demanding cable management applications across industrial, commercial, and residential installations.
