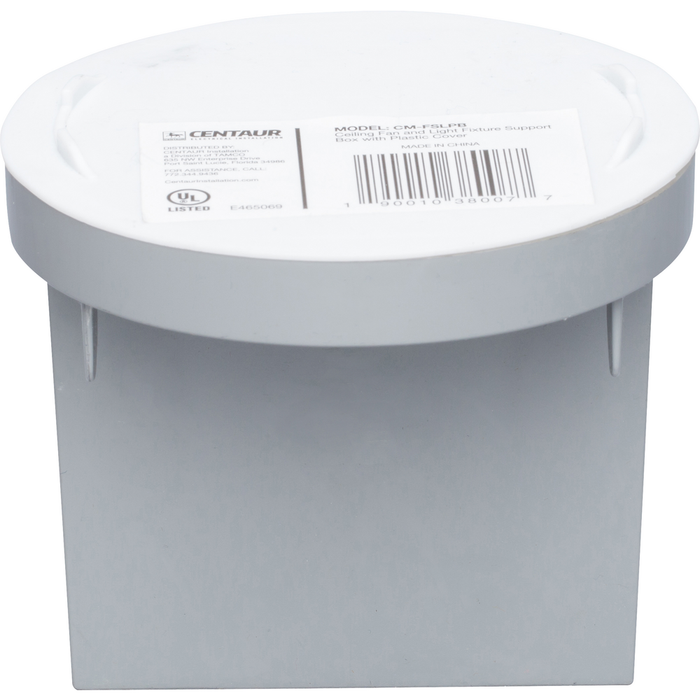

Centaur L-Shaped Plastic Fan/Fixture Support Box – 4" (per 12)

Centaur L-Shaped Plastic Fan/Fixture Support Box – 4" (per 12)

(No reviews yet) Write a Review

Model: CM-FSLPB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$165.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The CM-FSLPB 4" Plastic "L" Shaped Fan/Fixture Support Box is a robust and reliable solution for ceiling fan installations. With a diameter of 4.0625 inches and a cubic capacity of 14 Cubic Capacity, this steel support box is designed for flush mounting and includes all necessary mounting hardware. It features an external clamp, a protective cover, and one integral clamp. Weighing 0.33333 pounds, it meets UL standards and is constructed with threaded components for secure installation. Ideal for use in various electrical applications, this support box ensures durability and ease of use.

Manufacturer Resources

See Spec Sheet

Product Specs

Box Shape:
L-Shaped
Product Type:
Fan Fixture Support Box
Support Type:
Fan/Fixture Rated
Cubic Capacity:
14 cu in
Insulated:
No
Knockouts:
(2) 1/2 Inch
Application:
Supporting ceiling fans or fixtures with L-shaped mounting in standard installations
Color Options:
Gray
Product Group:
Electrical Boxes
Product Subgroup:
Junction Boxes
Product Size:
4 inches
Product Diameter:
4.0625 inches
Product Material:
Plastic
Product Width:
4 inches
Department:
Electrical
Product Depth:
4 inches

Centaur CM-FSLPB – Frequently Asked Questions

1) Can a 4 inch plastic L-shaped Centaur box actually hold a ceiling fan, or do I need a metal fan brace?
The Centaur CM-FSLPB is fan/fixture rated, so it is built to carry a ceiling fan and not just a light. It is an L-shaped plastic box, 4 inches deep and 4 inches wide, with a 4.0625 inch diameter face, and it ships in packs of 12. If your opening already has solid blocking or a joist at the fan location, this box mounts to it directly. You only need a separate expanding brace bar when there is no framing member where the fan has to land.
2) Will 14 cubic inches be enough box fill for a ceiling fan with a light kit and a 3-wire switch leg?
14 cubic inches is the rated volume of the CM-FSLPB fan support box, and that is what your fill calculation has to work against. On a typical fan drop with 14 AWG conductors that covers a supply cable in, a switch leg out, the fan leads and the grounds, but a fan light kit on a separate switched conductor plus a third cable will push a 14 cubic inch box tight. Count the conductors, the clamp allowance and the device allowance before you commit. If the math runs over, you want a deeper fan box rather than this one.
3) Is this a new-work or old-work fan box, and where does it mount?
New work. The CM-FSLPB is a flush-mount L-shaped box with an L bracket that fastens to framing before the ceiling goes up, so it sets the box face flush with the finished surface. It is not a remodel box, and there are no retrofit ears for cutting into an existing ceiling. For a fan going into a ceiling that is already closed, you need an old-work fan-rated assembly instead.
4) What size cable knockouts does the Centaur CM-FSLPB fan box have, and does it come with clamps?
Two 1/2 inch knockouts, which is standard trade size for NM cable connectors or 1/2 inch flex. The box has one integral clamp plus an external clamp, so you are not buying separate cable clamps to land your first cable. Mounting hardware and a cover are included with the box.
5) Can a plastic fan box be used in an insulated attic ceiling or an exterior porch?
The CM-FSLPB is a non-insulated plastic box, so it carries no thermal or air-seal rating of its own. Nothing in its data makes it an airtight or weather-rated box, which means for an insulated ceiling plane where the inspector wants an air barrier, or a covered exterior location, you should be specifying a box built for that duty. Inside a conditioned ceiling on framing, it is the right kind of box.
6) Is the Centaur CM-FSLPB UL listed?
The CM-FSLPB fan and fixture support box meets UL standards per the manufacturer's product data. Full listing detail is in the Centaur spec sheet published with the product.
7) I am standardizing fan boxes across a multi-family build. What color and pack does the Centaur CM-FSLPB come in?
Gray, and it sells per 12, which is how you want to buy it when you are boxing out dozens of units to the same detail. Every unit in the pack is the same 4 inch L-shaped fan/fixture rated box with two 1/2 inch knockouts, so the rough-in detail stays identical from apartment to apartment. Only one model is offered, CM-FSLPB, so there is no configuration to get wrong on the order.
8) Will a standard ceiling fan canopy cover a 4-1/16 inch round box face?
The CM-FSLPB has a 4.0625 inch diameter face, which is the common 4 inch round profile that fan and fixture canopies are sized around, so a typical fan canopy covers it. Where it gets tight is an undersized decorative fixture canopy on a light-only install, since those sometimes run under 4 inches. Measure the canopy if the fixture is a small decorative one.
