CERRC
CERRC - spec sheet
Features
- Test switch and AC-On indicator
- 120/277VAC, 60Hz input
- LED life-cycle of more than 10 years
- Available in black or white finish
- Canopy Included
- Includes Self-Test/Self-Diagnostic models
- Molded-in template for quick installation
- Remote Capacity(RC) models have a minimum runtime of 120 minutes when no remotes are installed
- 120/277VAC. 60Hz input
- Remote capacity or extended runtime option
- UL924 Damp Location Listed
- UL 924 Damp Location Listed
- Field Selectable Red or Green Exit Signs
- AC or Emergency operation with NiCad battery
- Full 2 Year Warranty
CERRC - spec sheet
Manufacturer Resources
Product Specs
- Department:
- Electrical
Compass COM-CERRC – Frequently Asked Questions
1) Can the Compass CERRC combo exit sign be installed in a damp location like a parking garage or stairwell entry?
The CERRC is UL 924 Damp Location Listed, so it can go in covered damp areas such as unheated stairwells, covered garage decks, or canopied entries. It is not a wet-location fixture, so keep it out of direct water exposure.
2) Does the CERRC exit sign come with red or green letters, or do I have to pick when ordering?
No need to choose a letter color at order time. The CERRC uses field selectable red or green exit lettering, so one unit covers jurisdictions that call for either. That is useful if you standardize stock across buildings in different municipalities.
3) What does the RC in Compass CERRC mean for emergency runtime?
RC stands for Remote Capacity. The CERRC can feed remote emergency heads off its battery, and with no remotes connected it holds a minimum runtime of 120 minutes. Add remote heads and that capacity gets shared, so size the remote load against the battery budget. An extended runtime option is also offered.
4) Does the CERRC include self-testing so I do not have to push a button on every monthly inspection?
Self-Test/Self-Diagnostic models are part of the CERRC family, which automates the required functional testing of the battery and transfer circuit. Standard units carry a manual test switch plus an AC-On indicator LED for a visual check during walkthroughs.
5) Do I need to buy a separate canopy or mounting kit for the Compass CERRC?
The canopy ships with the unit, and the housing has a molded-in mounting template, so an electrician can lay out the box holes without a paper template. Remote emergency heads, if you plan to use the remote capacity, are a separate purchase.
6) What battery does the CERRC use and how does it behave when the power drops?
A NiCad battery handles emergency operation. Under normal power the unit runs on AC; on loss of the branch circuit it transfers to battery and illuminates the exit face and emergency heads. NiCad is the common choice for unconditioned spaces because it tolerates a wider temperature swing than sealed lead acid.

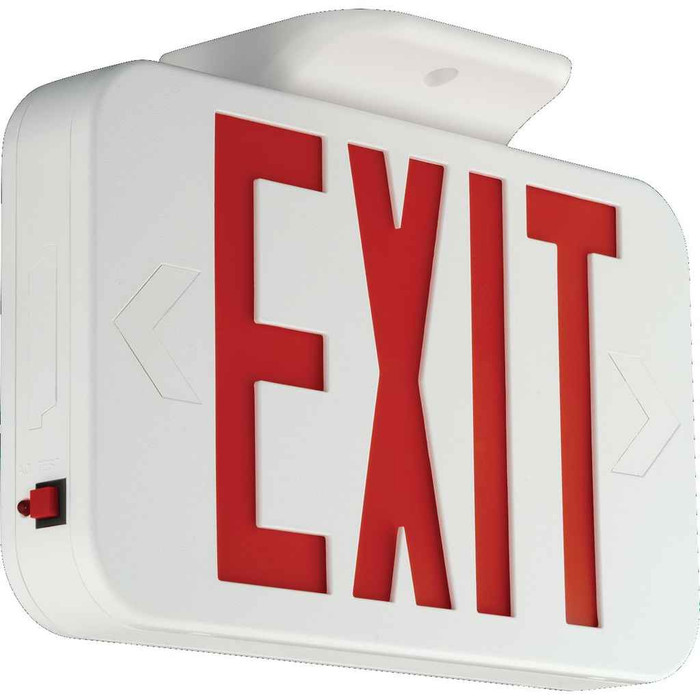

7) Is the Compass CERRC a combination exit sign and emergency light, or just a sign?
It is a combination unit: an exit sign face with field selectable red or green lettering plus battery backed emergency illumination, and it can also power remote heads. If you only need directional signage at a door, a plain exit sign is the cheaper line item; the CERRC is for openings that also need egress path lighting from the same point.
8) What finishes does the Compass CERRC combination unit come in?
Black or white housing. White blends into most painted corridor ceilings and drywall; black is the usual pick for exposed-structure retail, warehouse, and restaurant ceilings where fixtures are intentionally dark.
9) How long should I expect the LEDs in a Compass CERRC to last before relamping?
The LED source is rated for a life cycle of more than 10 years, so the lamps are effectively maintenance free over a normal ownership cycle. Practically, the battery is the wear item on a unit like this, not the light source.
10) What is the exact manufacturer part number for the Compass CERRC?
Compass Products lists it as CERRC, which is both the model designation and the manufacturer part number for the remote capacity combination unit.
