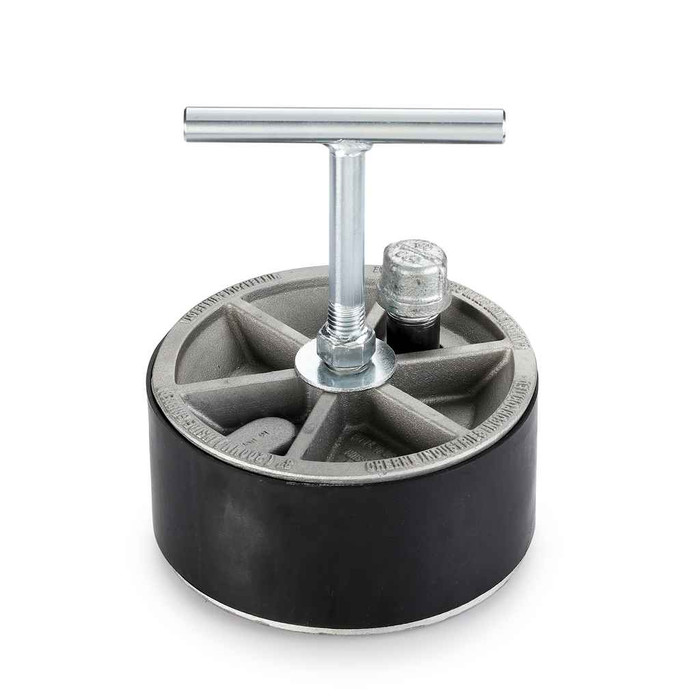

OATEY 272957 Cherne® 8" T-Handle Gripper® Plug with 3/4" Bypass

OATEY 272957 Cherne® 8" T-Handle Gripper® Plug with 3/4" Bypass

(No reviews yet) Write a Review

Model: 272957
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$495.71
$445.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Cherne® 8" T-Handle Gripper® Plug with 3/4" Bypass

  • Features

    • Chemical-resistant neoprene O-ring
    • 15 in. and 18 in. plugs are sized for concrete and clay pipe
    • Available with or without bypass
    • 6 in.-12 in. plugs are sized for concrete, clay, & SDR 26 and 35 pipe
    • Can be used in long-term applications
    • Made of heavy-duty aluminum body and zinc plated steel T-handle

Manufacturer Resources

Product Specs

Bypass Diameter:
3/4 in. M
Maximum Back Pressure:
10 psi (0,7 bar)/23 ft. (10 M)
Volume:
0.309
Department:
Plumbing
Product Group:
Plumbing Testing
Product Subgroup:
Testing Products
Product Type:
Test Plug
Product Finish:
Metal
Product Weight:
9.188
Product Nominal Size:
8 in. (200 mm)

OATEY 272957 – Frequently Asked Questions

1) What is the bypass on the 272957 Cherne plug for, and what thread size is it?
The bypass is a 3/4 in. male connection through the center of the plug. It lets you run flow, a hose, or a test line through the plug while it stays set, so you can fill the line for a water test, bleed off pressure before pulling the plug, or keep upstream flow moving during a long-term bypass. Cherne also builds this Gripper plug without the bypass if you only need a straight seal.
2) Can a mechanical test plug be left in the line for weeks, or is it test-only?
The Cherne Gripper plug is built for long-term applications, not just a one-day test. The body is heavy-duty aluminum with a zinc plated steel T-handle, and the seal is a chemical-resistant neoprene O-ring, so it holds up sitting in a sewer line. Inflatable bag plugs are the ones that lose pressure over time; a mechanical gripper does not.
3) How heavy is the 8 inch Cherne gripper plug for lowering into a manhole?
It weighs 9.188 lb., light enough for one person to set on a rope but heavy enough that you want a tether on it in a manhole. Volume is listed at 0.309.
4) What is the Oatey part number for the 8 inch Cherne T-handle plug with bypass?
Order model 272957. That is the Cherne 8 in. T-Handle Gripper plug with the 3/4 in. bypass; the same Gripper plug is also built without a bypass, so confirm you are calling out the bypass version if you need to run a line through it.
