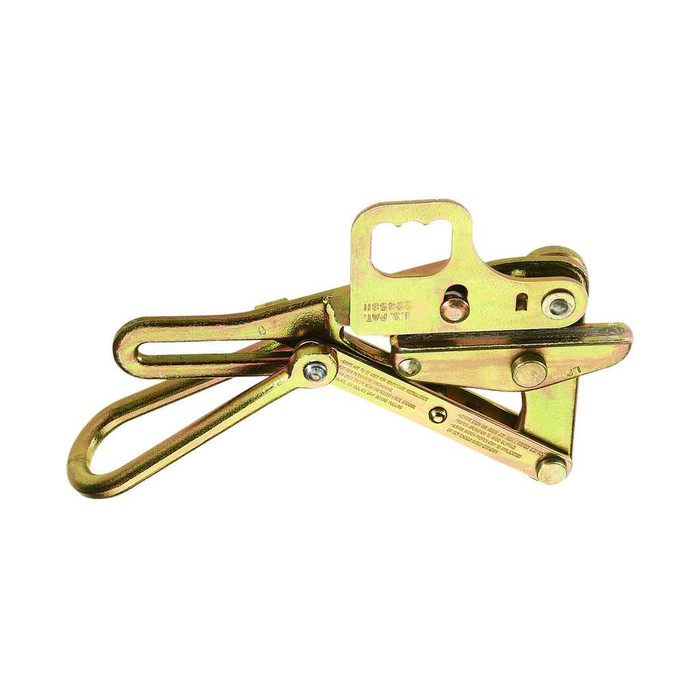

Chicago Grip Hot-Line 0.31 to 0.53-Inch
S1656-30H - spec sheet
Warnings
- Grips are to be used for temporary installation, not for permanent anchorage.
- Always match proper size and type of grip to application.
- Do not exceed rated capacity.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
Features
- Round Inside-Jaw Contour
- Chicago Grip-with Hot-Line Latch for Bare Conductors has round inside-jaw contour
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
- Made in USA
- Jaw length - 4-7/8-Inch
- Standard hot-line grips are not supplied with springs or lock-open features
- Maximum safe load of 4,500 pounds
S1656-30H - spec sheet
Manufacturer Resources
Product Specs
- Cable Diameter:
- 0.1" to 0.53" (7.87 to 13.46 mm)
- Cable Type:
- Copper, ACSR, AAC
- Hot Latch:
- Yes
- Jaw Length:
- 4.75" (12.1 cm)
- Jaw Type:
- Round
- Locking Handle:
- Yes
- Maximum Safe Load:
- 4500 lb (2041 kg)
- Spring:
- Yes
- Swing Latch:
- No
- Type:
- Chicago Grip
- Weight:
- 4.0000 lbs
