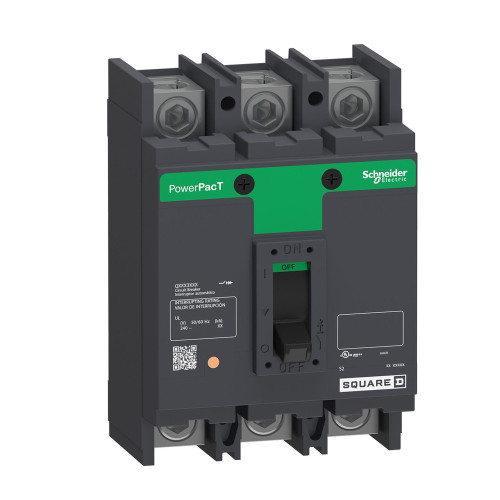

Square D PowerPacT Q Molded Case Circuit Breaker, Thermal Magnetic Trip

Square D PowerPacT Q Molded Case Circuit Breaker, Thermal Magnetic Trip

(No reviews yet) Write a Review

Model: QBL32100

In Stock (leaves warehouse same day if ordered before 3pm ET)

$851.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D PowerPacT Q Molded Case Circuit Breaker, Thermal Magnetic Trip

The Square D PowerPacT Q Molded Case Circuit Breaker provides dependable overcurrent protection and switching for 240VAC electrical systems in commercial and industrial installations. Built with thermal magnetic trip technology, this Q-Frame breaker is offered in 2- or 3-pole configurations with a 100A line rated current, an 80% continuous current rating, and lug-style line and load connections. Backed by UL, CSA, and NOM certifications, it delivers code-compliant performance for demanding panelboard and switchgear applications.

Key Features

  • Rated Current: 100 A line rated current with an 80% continuous current rating for reliable circuit protection.
  • Pole Configuration: Available in 2- or 3-pole designs (this unit configured as 3P) to match system requirements.
  • Operational Voltage: Rated 240 V AC at 50/60 Hz for standard commercial and industrial power systems.
  • Trip Unit Technology: Thermal-magnetic trip unit with a magnetic hold current of 1200 A and magnetic tripping current of 2400-2400 A for fast, accurate fault response.
  • Electrical Connection: Lugs on both line and load sides, with a tightening torque of 28-28 N.m for 25-150 mm² (AWG 4...300 kcmil) conductors.
  • Impulse Withstand: Rated impulse withstand voltage (Uimp) of 8 kV UL for added dielectric protection.
  • Mechanical Durability: Rated for 1000 cycles loaded and 5000 cycles no-load, with a local trip indicator (green) for at-a-glance status.
  • Wire Stripping Length: 22 mm, supporting proper lug termination during installation.

Certifications & Compliance

  • UL Listed
  • CSA Certified
  • NOM-003-SCFI-2000 Compliant
  • Meets NEMA Standards
  • ROHS EUR Compliant with Exemptions
  • Mercury Free
  • Halogen Free Product

Technical Specifications

  • Warranty: 18 months
  • Warranty Period: 18 months
  • Sustainable Packaging: No
  • Mercury Free: Yes
  • Packaging Without Single Use Plastic: No
  • Tier Id: 1
  • ROHS Eur In Scope: Yes
  • Recycled Metal Content At Cr Level: 0 %
  • Poles Description: 3P
  • Serviceability: No
  • With Recycled Cardboard: Yes
  • WEEE Product Category: 4
  • China ROHS In Scope: No
  • Return Indicator: Y
  • Take Back: No
  • Tier: 1
  • Returnability: Yes
  • Field Service Division: PPIBS
  • Magnetic Tripping Current: 2400-2400 A
  • Carbon Footprint: 39.8311243713542
  • Trip Unit Technology: thermal-magnetic
  • Installation Carbon Footprint: 0.414364543347152
  • Wire Stripping Length: 22 mm

Typical Applications

  • Panelboard and Load Center Wiring
  • Commercial and Industrial Electrical Distribution
  • Overcurrent Protection and Circuit Switching
  • Control Panel and Switchgear Installations
  • Renovation and New Construction Projects

Why Square D?

Square D PowerPacT Q Series circuit breakers combine thermal magnetic trip protection, lug-style terminations, and UL, CSA, and NOM certifications to deliver dependable, code-compliant overcurrent protection. With mercury-free, halogen-free construction and rated mechanical durability, this breaker is built for confident, reliable performance in professional electrical installations.

Manufacturer Resources

Product Specs

Product Type:
Circuit Breaker
Series:
PowerPacT Q
Voltage Rating:
240VAC
Amperage Rating:
100A
Configuration:
3-Pole
Connection Type:
Lugs
Listing:
UL Listed
Department:
Electrical
Product Group:
Circuit Protection
Product Subgroup:
Circuit Breakers
Product Width:
4.5 in
Product Depth:
3.93 in
Product Height:
6.47 in

Square D QBL32100 – Frequently Asked Questions

1) Will the Square D QBL32100 breaker work on a 480V system?
No. The PowerPacT Q QBL32100 is rated 240 V AC at 50/60 Hz, so it is limited to 240V systems. For a 480V feeder you need a breaker rated for that voltage; do not apply this one above its 240V rating.
2) What wire size do the lugs on the Square D QBL32100 accept?
The Q-Frame breaker has lugs on both line and load sides sized for 25 to 150 mm2 conductors, which is AWG 4 through 300 kcmil. Tightening torque is 28 N.m and the wire stripping length is 22 mm. That range covers typical 100A copper or aluminum feeder conductors with room for upsized runs.
3) Can I load the Square D 100A PowerPacT Q breaker to a full 100 amps continuously?
No. The QBL32100 carries a 100 A line rated current with an 80% continuous current rating, so continuous load should be held to 80 A unless the enclosure and application are specifically listed for 100% rating.
4) Is the Square D QBL32100 a two-pole or three-pole breaker?
This one is built as 3-pole, for three-phase 240V circuits. The PowerPacT Q line is offered in 2- or 3-pole configurations, so if you are feeding a single-phase 240V load you want the 2-pole version instead of this part number.
5) Can I use an Eaton BAB breaker instead of the Square D PowerPacT Q 100A?
They are not interchangeable in the same enclosure. The Eaton BAB-302 is a three-pole Quicklag industrial thermal-magnetic breaker rated 240V, and the BAB1010 is a bolt-on Quicklag thermal-magnetic unit. Those are plug-on or bolt-on branch breakers built for Eaton loadcenters and panelboards, while the Square D QBL32100 is a molded case Q-frame breaker with lug line and load terminations, 4.5 in wide, 6.47 in high and 3.93 in deep. Use the BAB only where the panel interior is designed for it.
6) I need more than 100A on a 3-pole feeder - what should I look at instead of the QBL32100?
The QBL32100 is fixed at a 100A line rating, so a larger feeder needs a larger frame. The Eaton 6602C72G67 is a Series C K-Frame 400A 3-pole breaker with an interchangeable rating plug, which lets the trip rating be set within the frame. The ABB XT5 3-pole breaker kit (MBM334) is another larger-frame 3-pole option. Verify voltage and interrupting rating for your system before specifying either.
7) How much room do I need in the panel for the PowerPacT Q 100A breaker?
The breaker measures 6.47 in height, 4.5 in width, and 3.93 in depth. Check that against your panelboard interior and gutter space, and remember the lugs need bending room for conductors up to 300 kcmil.
8) Does the Square D QBL32100 have an electronic or thermal magnetic trip unit?
Thermal-magnetic. The trip unit holds magnetically at 1200 A and trips magnetically at 2400 A, with thermal response handling sustained overloads. There is no adjustable electronic trip and no interchangeable rating plug, so the 100A rating is fixed. A green local trip indicator shows status at the breaker.
9) Is this Square D breaker UL listed for a commercial panelboard job?
Yes. The PowerPacT Q molded case breaker is UL Listed, CSA Certified, and compliant with NOM-003-SCFI-2000, and it meets NEMA standards. Rated impulse withstand voltage is 8 kV UL. It is also mercury free and halogen free. Country of origin is Mexico.
10) How many operations is the PowerPacT Q 100A breaker rated for if it will be switched regularly?
Mechanical endurance is 1000 cycles loaded and 5000 cycles no-load. That is fine for a main or feeder disconnect operated occasionally, but it is not a motor starter or a daily-duty switching device. If the circuit is switched many times a day, use a contactor downstream and leave the breaker for protection and isolation.
11) What other brands of 3-pole molded case circuit breakers could I use instead of the Square D Q-Frame?
Other 3-pole molded case options we stock include the ABB A2A150TT in the A2 Series, and ABB 3-pole breaker kits in the XT4 and XT5 series. Those are different frames with their own mounting and terminal arrangements, so they are not drop-in swaps in a Square D panelboard. If you are replacing an existing Square D Q-Frame in place, stay with the PowerPacT Q.
12) Does the Square D PowerPacT Q 100A breaker come with a shunt or undervoltage release like the Eaton accessory?
The QBL32100 is supplied as a thermal-magnetic molded case breaker with lug line and load connections and a local trip indicator; it is the breaker itself, not an accessory. The Eaton 10250T-GR is an undervoltage release for NZM Series molded case breakers, which is an add-on device fitted to an Eaton frame. If your sequence of operation calls for drop-out on voltage loss, that function comes from a release accessory matched to the breaker frame, not from the standard thermal-magnetic unit.
13) Will a Bussmann CBC or CBF circuit breaker work in place of the PowerPacT Q?
No. The Bussmann CBC and CBC-B are Type I automotive circuit breakers rated 14VDC, the CBF is a Type II automotive breaker, and the CBS is also an automotive series. Those are low-voltage DC devices for vehicle and equipment wiring. The Square D QBL32100 is a 240VAC molded case breaker for panelboard and switchgear use, so the two serve entirely different systems.
14) Can I use the Square D QBL32100 for a DC circuit or a 12V vehicle application?
No. The QBL32100 is rated 240 V AC at 50/60 Hz for commercial and industrial AC distribution. For low voltage DC work, the Bussmann CBC Series Type I automotive breaker is rated 14VDC, and Bussmann also offers CBF Type II and CBS family automotive breakers.
