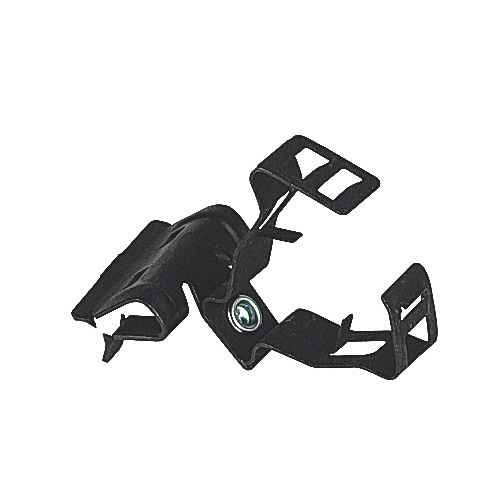

Clip, Flange Side Mount Conduit
SSF-CC1-F1/2 - spec sheet
Features
- Will pivot through 360 degrees
- Available with Spring Steel Conduit clip bottom mounted or side mounted.
- Available for 3/8 Inch through 2 Inch trade sizes for EMT, rigid, Flexible conduit and MC/AC cable.
- Fits beam flanges 1/8 Inch through 3/4 Inch thick.
SSF-CC1-F1/2 - spec sheet
Manufacturer Resources
Product Specs
- Inner Quantity:
- 25
- Product Group:
- Mounting & Support
- Unspsc:
- 39121701 Electrical hangers
- Type Of Fastening:
- Edge clip
- Product Material:
- Steel
- Department:
- Electrical
- Hinge Adjustable:
- N
- Product Subgroup:
- Hangers & Supports
- Hinging:
- N
- Product Type:
- Hanger for trapezoidal ceiling
Steel City SSF-CC1-F1/4 – Frequently Asked Questions
1) Which flange thickness do I order the SSF-CC1 clip for?
Measure the beam flange you are clipping onto and match it. The clip comes in 1/4 inch, 1/2 inch and 3/4 inch flange sizes, ordered as SSF-CC1-F1/4, SSF-CC1-F1/2 and SSF-CC1-F3/4. The design covers beam flanges 1/8 inch through 3/4 inch thick across the range, so anything thicker than 3/4 inch is outside what this clip grips.
2) What is the difference between the side-mount and bottom-mount versions of this Steel City conduit clip?
Same beam clip, different position of the spring steel conduit clip. The SSF-CC1-F is the side-mounted version, which holds the pipe off the side of the flange. The bottom-mounted version runs the conduit under the beam instead. Pick by where you need the pipe to sit relative to the steel and what else is in that space.
3) Can I angle the conduit off the beam, or does it have to run parallel?
The clip pivots a full 360 degrees, so you can orient the conduit to the run rather than being locked to the beam line. Handy where the pipe crosses the steel at an angle.
4) What is the Steel City SSF-CC1 clip made of, and is the conduit clip itself spring steel?
Steel throughout, with a spring steel conduit clip that snaps over the pipe. No separate strap or fastener is needed to hold the conduit.
5) How many SSF-CC1 clips come in a box?
They pack 25 to the inner carton, which is worth knowing if you are pricing out a long run and counting hangers per foot on a bid.
6) Is the SSF-CC1 clip hinged or adjustable after it is set?
It is not a hinged or hinge-adjustable part. Positioning comes from the 360 degree pivot of the conduit clip, not from a hinge in the body.
