Command Access CL180 Storeroom Function, Grade 1 Electric Cylindrical Complete Lock CL1 Series,

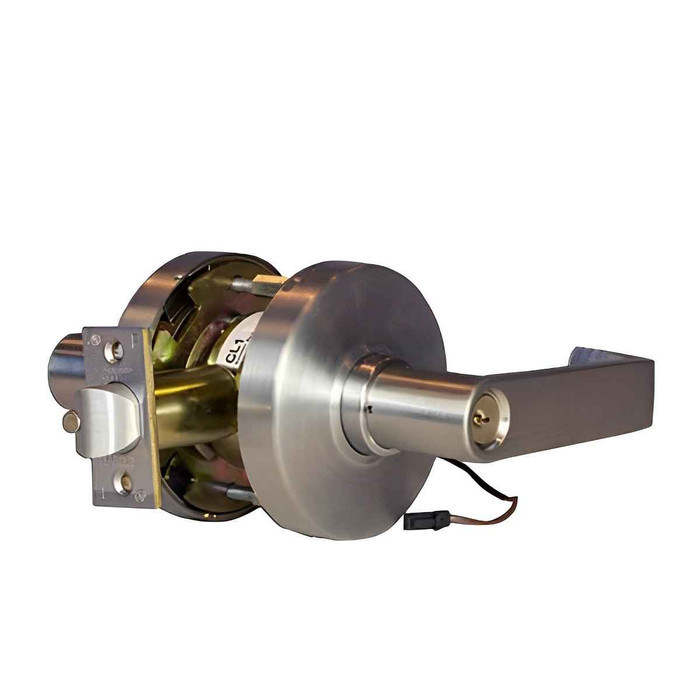

Command Access CL180 Series – Electrified Cylindrical Complete Lock

The Command Access CL180 series offers a durable, cost-effective electrified cylindrical lock solution ideal for commercial projects that do not require a branded specification but still demand performance and reliability. Designed to provide the look, feel, and function of premium locksets, the CL180 is a complete lock solution from Command Access, delivering exceptional value without compromising quality.

Whether you're upgrading an access control system or looking for an affordable solution for continuous duty applications, the CL180 is a trusted choice. With features such as continuous duty solenoids, plug-in bridge rectifiers, and clutching lever designs, this series is engineered for high-traffic environments where reliability is critical.

Key Features:

• Command Access CL180 delivers grade-1 quality performance at a budget-friendly price point

• Continuous duty solenoids for “always on” Fail Safe/Fail Secure applications

• Accepts both AC and DC power through a plug-in bridge rectifier

• Low current draw helps reduce load on power supplies

• Clutching lever design minimizes damage from forced rotation

• Available with Schlage C type keyway (standard)

• Supports SFIC (Small Format Interchangeable Core) options

• Backed by a No Hassle 3-Year Warranty

Options Available:

• Fail Safe (EL) – Electrically Locked; outside lever locked when powered

• Fail Secure (EU) – Electrically Unlocked; outside lever unlocked when powered

• Voltage: 12V or 24V (AC/DC) – must specify when ordering

• REX (Request to Exit) or AE switch available on all functional models

Specifications:

• Operating Voltage: 12 or 24 VAC/DC ±10%

• Amperage Draw: 12V = 250 mA / 24V = 150 mA

• Solenoid Coil Resistance: 12V = 49Ω / 24V = 159Ω

• Power Consumption: 3 Watts

Model Applications:

• CL180EL (Fail Safe – Electrically Locked):
  Outside lever locked when power is ON. Latch retracts with power, key, or inside lever. Inside lever always free for egress.

• CL180EU (Fail Secure – Electrically Unlocked):
  Outside lever unlocked when power is ON. Latch retracts with power, key, or inside lever. Inside lever always free for egress.

The Command Access CL180 provides a versatile and affordable electrified locking solution suitable for offices, educational institutions, healthcare, and other commercial settings. Whether for new installations or retrofits, this series balances cost-efficiency with robust access control functionality.
