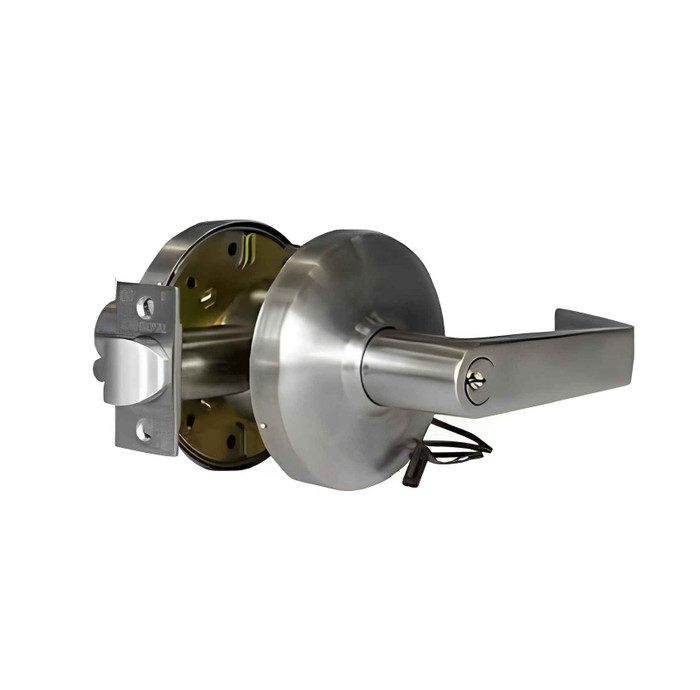

Command Access CLCR Storeroom Clutch Function, Grade 1 Electric Cylindrical Complete Lock, SFIC/LFIC, Cal Royal Genesys

CLCR Series

Electrified Cal Royal Genesys Cylindrical Lock

- The Command Access electrified version of the Cal Royal Genesys series cylindrical lock line allows for remote keyless access and egress control for heavy use applications where security and safety is critical

Features:

• Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source
• Available with Schlage C type keyway standard

• No hassle 3-Year warranty

Options

• Available Fail Safe (Electrically locked) or Fail Secure (Electrically Unlocked)
• Voltage option - 12V or 24V (AC/DC)
• REX - Request to Exit or AE switch available (on all functions)

Specifications:

Voltage:

• Operating voltage - 12 or 24VAC/DC (+or- 10%) (must specify 12 or 24 volts when ordering)
• Amperage - 12V = 250 mA / 24V = 150 mA
• Solenoid coil resistance - 12V = 49 Ω / 24V = 159 Ω
• Power consumption - 3 watts

Model Applications Available

• CLCR05EL Storeroom: (fail safe) - Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt.
  Inside lever is always free for immediate egress
• CLCR05EU Storeroom: (fail secure) - Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress

Cal Royal Genesys Series Cutsheet

Installation Instructions
