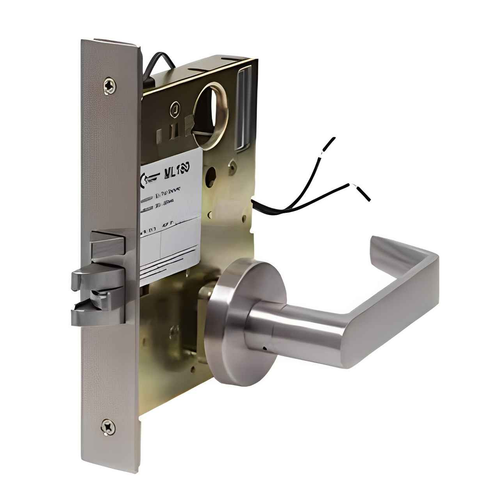

Command Access ML182 Institutional Function with Trim, 06 Lever, Rose, Retrofits Schlage L9000 Series Electrified Mortise Lock
Model: CAT ML182
Command Access
Command Access ML1480 Entry W/Deadbolt Function with Trim, 06 Lever, Rose, Retrofits Schlage L9000 Series Electrified Mortise Lock
Model: CAT ML1480
Command Access
CRU2
Current Reduction Module
-The CRU2 is a current reduction module that is designed to work with low current DC voltage
electric locking devices such as cylindrical locks, mortise locks, panic trim or strikes that
are being used in a “fail safe” or “unlock cycle” condition. When energized, the CRU2 allows
the device to receive full current long enough for the solenoid to retract. Once retracted,
the CRU2 limits the current for the solenoid to remain retracted as long as is needed. While
limiting the current, the CRU2 sends an occasional high frequency pulse to ensure that there
are no “re-locking” issues. This prevents failures due to door misalignment or prolonged lever
engagement by the users.
Specifications
- Operating voltage - 12 to 30 VDC
- Maximum Amperage - 1.0A
Features
- Allows "continuously on" low current devices to run cooler, increasing the life of the solenoid and reducing service calls
- The CRU2 provides a small current boost to offset some of the voltage long associated with long wire runs
- Current adjustment allows for "fine tuning"
- No hassle 3-Year warranty
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Controls
- Product Group:
- Electronic Access Controls
- Series:
- CRU2 Series
- Subcategory:
- Exit Control Locks
- Commercial/Residential:
- Commercial
- Product Type:
- Exit Control Locks
- Electronic:
- Yes
- Product Subgroup:
- Exit Control Locks and Alarms
