Command Access ML485EU Electrified Mortise Lock with Privacy/Deadbolt Function - 12/24VAC/DC Fail Secure

Command Access ML485EU Electrified Mortise Lock with Privacy/Deadbolt Function - 12/24VAC/DC Fail Secure

(No reviews yet) Write a Review

Model: ML485EU 03 626 24V
$1,543.66
Selected Finish is
Selected Lever Style is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,543.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Command Access ML485EU Electrified Mortise Lock with Privacy/Deadbolt Function - 12/24VAC/DC Fail Secure

Professional Electrified Mortise Lock Solution

The Command Access ML485EU electrified mortise lock delivers remote keyless access and egress control for heavy-duty commercial applications where security and safety are critical. This complete Schlage L9000 series mortise lock operates on 12 or 24VAC/DC power with fail secure configuration, drawing only 700 mA at 12V or 350 mA at 24V. Engineered for continuous duty applications with 8 watts power consumption and low current draw design.

Professional Features & Benefits

  • Dual Voltage Operation: 12 or 24VAC/DC (+/- 10%) flexibility allows integration with various access control systems for versatile installation options.
  • Low Power Consumption: 8 watts total power consumption with efficient 700 mA at 12V or 350 mA at 24V current draw minimizes electrical load on systems.
  • Continuous Duty Design: Continuous duty solenoids support "continuously on" applications including fail safe operations and extended unlock cycles.
  • Plug-in Bridge Rectifier: Integrated bridge rectifier accommodates both AC and DC power sources for maximum system compatibility.
  • Heavy-Duty Construction: Schlage L9000 series mortise chassis provides commercial-grade durability for high-traffic applications.
  • Privacy/Deadbolt Function: Privacy function with deadbolt provides secure locking for interior applications requiring occupancy control.
  • Fail Secure Operation: Electrically unlocked configuration maintains security during power loss situations.
  • Manufacturer Warranty: 3 Year Warranty provides comprehensive coverage for reliable long-term performance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy-Duty
  • Electronic: Yes
  • Lock Type: Mortise
  • Product Attribute: Mortise Locks
  • Product Category: Mechanical Locks
  • Product Function: Privacy/Bed/Bath
  • Product Group: Mechanical Locks
  • Product Subgroup: Mortise Locks and Trim
  • Product Type: Electrified Mortise Locks
  • Series: ML80 Series
  • Subcategory: Mortise
  • Warranty: 3 Year Warranty

Professional Applications

  • Commercial Building Security Systems
  • Educational Institution Access Control
  • Healthcare Facility Privacy Areas
  • Corporate Office Interior Doors
  • Government Building Secure Areas
  • Multi-Tenant Residential Properties
  • Industrial Facility Controlled Access

Why Choose Command Access Quality?

Command Access electrified mortise locks deliver professional-grade reliability with continuous duty solenoids and heavy-duty Schlage L9000 series construction. The 3 Year Warranty provides comprehensive coverage for demanding commercial applications. Engineered for critical security applications where dependable electronic access control and mechanical backup are essential.

Manufacturer Resources

Command Access Catalog

Product Specs

Product Group:
Mechanical Locks
Series:
ML80 Series
Product Subgroup:
Mortise Locks and Trim
Product Type:
Electrified Mortise Locks
Subcategory:
Mortise
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Mortise
Warranty:
3 Year Warranty
Duty Level:
Heavy-Duty
Product Attribute:
Mortise Locks
Product Function:
Privacy/Bed/Bath
Product Category:
Mechanical Locks
Department:
Door Hardware

Command Access ML485EU 03 626 24V – Frequently Asked Questions

1) Is the Command Access ML485EU a complete mortise lock or just an electrified retrofit kit?

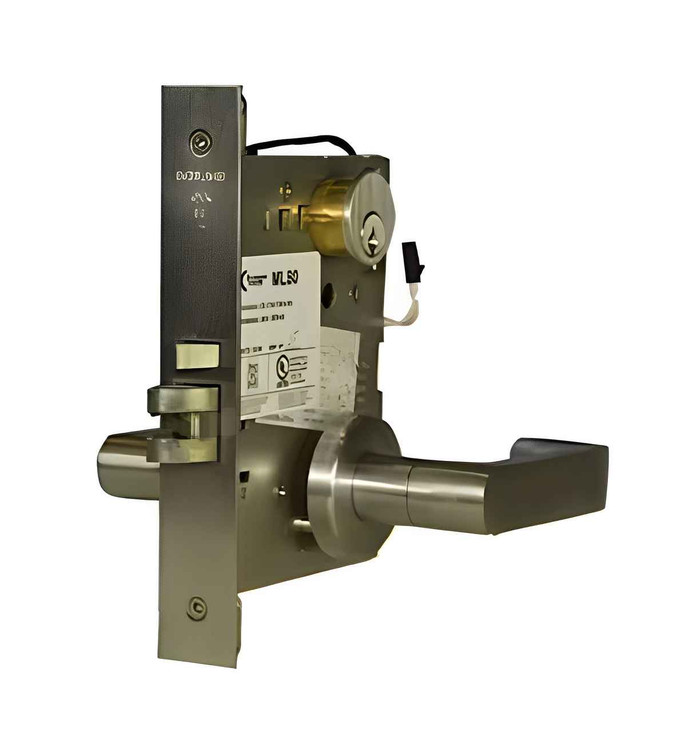

It ships as a complete Schlage L9000 series mortise lock, not a bare kit. Command Access takes the L9000 chassis and electrifies it, so you get the chassis, lever trim and electrification in one assembly rather than sourcing a lock and modifying it. The trim comes with the order: pick the lever style (03, 06 or 17) and the finish (613 oil rubbed bronze, 625 polished chrome or 626 satin chrome).
2) What happens to the ML485EU when the power drops?
Fail secure only. On power loss the outside lever stays locked and you need the key or the inside lever to get through. It is not offered fail safe, so if your opening is on a fire alarm release or an egress path that must unlock on power failure, this is the wrong device and you need a fail safe electrified mortise lock instead. Inside egress is always mechanical, which is what makes fail secure acceptable on most privacy and office openings.
3) Will a 12V access control panel run the ML485EU, or does it need 24V?
Either one. The ML485EU takes 12 or 24VAC/DC within plus or minus 10 percent, and there is a plug-in bridge rectifier on board so an AC supply works as well as DC. Budget 8 watts: 700 mA at 12V, 350 mA at 24V. That 700 mA figure is the one that catches people out, because a small 12V power supply feeding several openings runs out of headroom fast. On a long wire run or a multi-door supply, 24V halves the current and the voltage drop. Voltage is a build option, so specify 12V or 24V when you order.
4) Does the ML485EU have a deadbolt, or just a latch?
It carries both. The function is privacy with deadbolt, so there is a latchbolt for normal closing plus a separate deadbolt thrown from inside. That is what makes it work on a room where an occupant wants positive privacy, not just a latched door. The electrification controls access from the outside; the deadbolt stays under the occupant's control at the door.
5) How do I get door status or request-to-exit signalling back to the access control panel from an electrified mortise lock?
Order the switch option with the lock rather than adding it later. The ML485EU is built three ways: no switch, LBM latchbolt monitor, or REX request-to-exit. LBM tells the panel whether the latchbolt is actually projected, which is how you detect a door that has been left on the latch. REX signals the panel when the inside lever is turned, so a legitimate exit does not throw a forced-door alarm. Neither can be retrofitted into the chassis on site, so decide at order time.
6) Is this a restroom or patient room lock, or something for a main entry?
Interior privacy openings. The privacy/deadbolt function suits restrooms, patient and exam rooms, dorm and multi-tenant rooms, and offices where someone inside wants to secure the room and staff need electronic access from outside. It is a heavy-duty commercial lock rather than a residential one, so it stands up to institutional traffic. For a storeroom or office entry that always needs to be locked outside with key access, a storeroom or entrance function lock is the right call instead: the DynaLock EML-1 is an electrified mortise in storeroom function, and the Schlage L9050BDC is the mechanical entrance/office equivalent.
7) Does an electrified mortise lock like the ML485EU need power transferred through the door?
Yes, and that is the part people forget to order. The lock body sits in the door and runs on 12 or 24VAC/DC, so you need a way to carry that power from the frame into the door leaf: an electric hinge with a wire transfer, or a door loop. Neither comes with the lock. Size the transfer for the current the lock actually pulls, 700 mA at 12V or 350 mA at 24V, and remember a continuously energized opening carries that load all day.
8) What is the difference between the Command Access ML485EU and the Schlage L9050BDC?
They solve different problems in the same mortise chassis family. The ML485EU is an electrified mortise lock with a privacy/deadbolt function, running on 12 or 24VAC/DC with fail secure operation so the lock is electrically released and stays secure on power loss. The Schlage L9050BDC is a Grade 1 mortise entrance/office lock, single cylinder non-deadbolt function, with a disposable SFIC core and a 1-3/4 inch door thickness. If the opening needs an access control system to release the lock remotely, the ML485EU is the electrified path; if the door is keyed and operated mechanically at the door, the L9050BDC covers it without any wiring or power supply.
9) I need an electrified mortise lock for a storeroom door, not a privacy door. What should I use instead of the ML485EU?
The ML485EU is built around a privacy/deadbolt function, which is intended for interior occupancy control rather than a keyed storeroom opening. For a storeroom application, the DynaLock EML-1 is an electrified mortise lock in the EML series with a storeroom function. Both are electrified mortise locks, so the opening still needs power run to the door and an access control interface; the difference is the lock function driving how the door behaves when it is not energized.
10) Is the SDC 7600 motorized latch retraction lockset a substitute for the ML485EU?
They are not interchangeable even though both are electrified mortise locksets. The ML485EU is a solenoid-driven fail secure lock with a privacy/deadbolt function, operating on 12 or 24VAC/DC. The SDC 7600 is a Grade 1 motorized latch retraction mortise lockset with 24VDC control, fitting a 1-3/4 inch door. Motorized latch retraction pulls the latch itself back, which is what an opening needs when the door has to swing free under access control or be tied to an automatic operator. If the requirement is simply to release the lever electrically on an occupancy-controlled interior door, that is the ML485EU's job and latch retraction is more machine than the opening needs.
11) Can the ML485EU be energized continuously, or will the solenoid burn out?
Continuous duty solenoids, so it can sit energized indefinitely. That matters if you unlock a corridor or a restroom door for a whole shift, or if you run the lock on a scheduled unlock from the access control system. A momentary-duty solenoid would cook in that application; this one is built for continuously on operation.
12) What is the difference between a solenoid electrified mortise lock like the ML485EU and a motorized latch retraction lockset?
The ML485EU uses a solenoid to control the outside lever, and it draws current the whole time it is held unlocked, 700 mA at 12V or 350 mA at 24V. A motorized lockset such as the SDC 7600 Series retracts the latch with a motor on 24VDC control, which is a different animal: motor drive rather than a held solenoid. SDC also builds the Selectric 7800 PRO, a solenoid controlled mortise lock with a vandal resistant clutch, which is worth a look on an opening where the lever gets abused. Pick on how the opening is used, not on which technology sounds stronger.
13) What do I need to specify when ordering the ML485EU so I get the right lock?
Four choices decide the part. Voltage, 12V or 24V, matched to your power supply. Lever style, 03, 06 or 17. Finish, 613 oil rubbed bronze, 625 polished chrome or 626 satin chrome. And the switch option, none, LBM latchbolt monitor or REX request-to-exit. Fail secure is fixed, so there is no handing of the electrical function to make, but get the switch right at order time because it is internal to the chassis.
14) We already have Schlage L series mortise locks throughout the building. Will the ML485EU match them?
It should look and feel like the rest of the fleet. The ML485EU is a complete Schlage L9000 series mortise lock, the same chassis family as the Schlage L series the L9050BDC belongs to, and it comes in 613 oil rubbed bronze, 625 polished chrome, and 626 satin chrome with 03, 06, or 17 lever styles so the trim can be matched to the doors already hung. The functional difference is that the ML485EU is electrified with a privacy/deadbolt function while the L9050BDC is a mechanical entrance/office lock with a single cylinder and no deadbolt.
15) For a high-abuse opening like a school corridor or a public restroom, is there a mortise lock with better vandal resistance than the ML485EU?
The SDC Selectric 7800 PRO is a solenoid controlled mortise lock with a vandal resistant clutch, built for 1-3/4 inch doors. The clutch lets the lever turn free when the lock is secure rather than transmitting force into the chassis, which is the design answer to levers being hung on or forced. The ML485EU is a heavy-duty solenoid-driven mortise lock built on the Schlage L9000 chassis with continuous duty solenoids, and it carries the privacy/deadbolt function the 7800 does not. So the choice comes down to whether the opening needs privacy and deadbolt behavior or needs the clutched lever.
16) My access control panel only outputs 24VDC. Which electrified mortise locks work with it?
The ML485EU is ordered in a 12V or a 24V configuration and runs on AC or DC through a plug-in bridge rectifier, so the 24V version drops onto a 24VDC panel directly. Among comparable electrified mortise locksets, the SDC 7600 is a motorized latch retraction lockset with 24VDC control and the SDC 7800 PRO is solenoid controlled. Pick the ML485EU 24V build when the opening calls for the privacy and deadbolt function on the door.
17) I need to standardize a facility on Grade 1 mortise locks. Which of these carry a Grade 1 rating?
Among comparable mortise locksets, the Schlage L9050BDC is a Grade 1 entrance/office lock in the L series and the SDC 7600 is a Grade 1 motorized latch retraction lockset, both for 1-3/4 inch doors. The Command Access ML485EU is a heavy-duty commercial electrified mortise lock built on the Schlage L9000 series chassis with the privacy/deadbolt function, which is the piece to specify where an interior opening needs to be released electrically rather than keyed.
18) Which of these electrified mortise locks can report door status back to the panel?
The ML485EU is ordered with an optional latchbolt monitor or a request-to-exit switch built into the lock, or with no switch at all, so latch position or egress can be signalled back to the access control system from the lock itself. The comparable electrified mortise locksets differ in what they are built to do at the door: the DynaLock EML-1 is a storeroom function electrified mortise lock, the SDC 7600 is a motorized latch retraction lockset, and the SDC 7800 PRO is solenoid controlled with a vandal resistant clutch.
