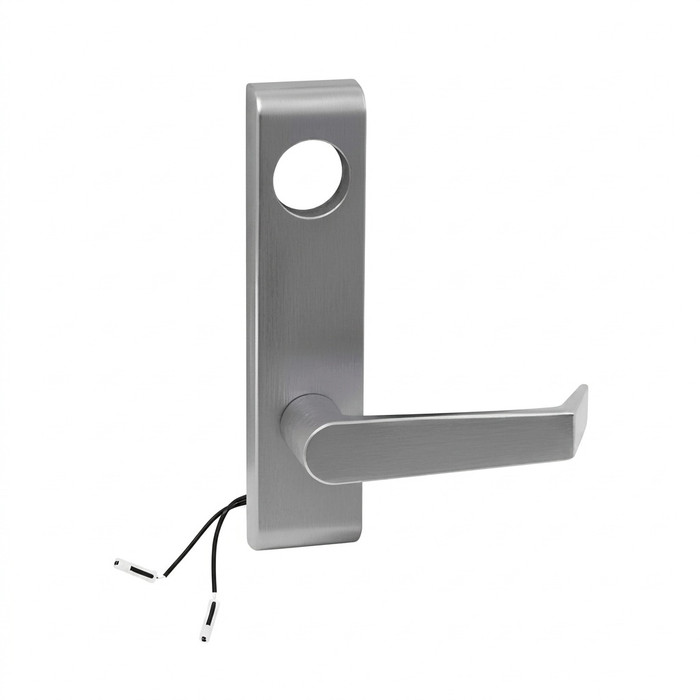

Command Access Command Access ET15 Electrified Exit Trim, Satin Aluminum CAT ET15

Command Access ET15 Electrified Exit Trim with 12V/24V Operation and Fail Safe/Secure Options

(No reviews yet) Write a Review

Model: ET15RIMEL 06 24V 628
$543.90

In Stock (leaves warehouse same day if ordered before 3pm ET)

$543.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Command Access ET15 Electrified Exit Trim with 12V/24V Operation and Fail Safe/Secure Options

Professional Electrified Exit Device Trim Solution

The Command Access ET15 electrified exit trim provides reliable electric control for storefront and commercial applications where electric pullback of exit device latchbolts is cost-prohibited or not required. Operating on 12V or 24V AC/DC power with field-selectable fail safe or fail secure operation, this trim is engineered for applications requiring fire/life safety code compliance with fail safe conditions. Features continuous duty solenoids and internally mounted components for simplified installation without special door preparation.

Professional Features & Benefits

  • Flexible Power Options: 12V or 24V AC/DC operation (+/- 10% tolerance) with 12V drawing 250 mA and 24V drawing 150 mA for various system requirements.
  • Fail Safe/Fail Secure Operation: Field-configurable for electrically locked (fail safe) or electrically unlocked (fail secure) operation to meet specific security and code requirements.
  • Continuous Duty Solenoids: Heavy-duty solenoid design ensures trouble-free operation with 12V coil resistance of 49 Ω and 24V coil resistance of 159 Ω.
  • Simplified Installation: Internally mounted solenoid eliminates special door preparation requirements for easier installation and service access.
  • Storefront Application Ready: Specifically designed for storefront conditions and commercial applications where traditional electrified latch pullback is not practical.
  • Request to Enter Option: REE (Request to Enter) switch available for enhanced access control integration.
  • Manufacturer Warranty: 3-year warranty coverage for added confidence and protection.
  • Professional Grade Construction: Satin aluminum finish provides durability and professional appearance for commercial environments.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Product Category: Exit Devices and Trim
  • Product Group: Exit Devices and Trim
  • Product Subgroup: Exit Device Trim
  • Product Type: Exit Trim
  • Series: ET15 Series
  • Subcategory: Exit Device Trim

Professional Applications

  • Commercial Storefront Security Systems
  • Retail Building Access Control
  • Office Building Exit Device Electrification
  • Educational Facility Safety Systems
  • Healthcare Institution Access Control
  • Industrial Facility Exit Compliance
  • Multi-Tenant Commercial Properties

Why Choose Command Access Quality?

Command Access ET15 electrified exit trim delivers professional-grade reliability with continuous duty solenoids and internally mounted components designed for trouble-free operation. Backed by a comprehensive 3-year warranty and engineered for demanding commercial applications where dependable electric exit control is essential. The flexible voltage options and fail safe/fail secure configuration provide versatility for various access control system requirements.

Manufacturer Resources

Command Access Catalog

Product Specs

Product Group:
Exit Devices and Trim
Series:
ET15 Series
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trims
Subcategory:
Exit Device Trim
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Command Access ET15RIMEL 06 24V 628 – Frequently Asked Questions

1) What does the Command Access ET15 electrified trim actually do when it is powered, and what stays mechanical?
The ET15 controls the outside trim electrically, not the exit device latch. Power either locks or unlocks the outside lever/trim depending on how it is set, while the pushbar side keeps working mechanically for free egress at all times. That is the point of it: it gives you electric access control on an opening where electric latch retraction on the device itself is either overkill or too expensive, which is why it shows up on storefront doors.
2) Should I order the ET15 fail safe or fail secure?
Both are offered and the choice is about what happens on a power loss. Fail safe means the trim is electrically locked, so cutting power unlocks the outside lever, which is what fire and life safety code will call for on an opening that has to release on alarm. Fail secure means the trim is electrically unlocked, so a power loss leaves the outside side locked, which is the normal pick for exterior storefront and tenant entrances where you do not want the door open when the panel drops. Command Access builds the ET15 field selectable, so the operation is set at install rather than being a separate part number.
3) Does the ET15 electrified trim need special door prep or a routed pocket?
No special prep. The solenoid mounts internally inside the trim rather than in the door or frame, so you are not routing a pocket or ordering a specially prepped leaf. That is what makes it workable on aluminum storefront, where there is no room to hide hardware, and it keeps service access at the trim instead of behind the door skin. You still need to get power to the opening, which means an electric hinge or door cord.
4) Can I still get in with a key if the access control system is down on a Command Access ET15?
Key override is built into every configuration of the ET15, and you pick the flavour when you order: Key Override RIM for a rim exit device, or Key Override CVR for a concealed vertical rod device. Both fail safe and fail secure versions carry it in 12V and 24V. On a fail secure opening that override is what gets a locksmith or a manager through the door when the panel is dead, so match it to the device already on the leaf.
5) Will the ET15 work on my concealed vertical rod door, or is it rim devices only?
Both. The key override is offered in a RIM version and a CVR version, so the trim covers rim exit devices and concealed vertical rod devices. Identify which device is on the leaf before you order, since the two are not interchangeable once the trim is on the door.
6) What is the difference between the Command Access ET15 and the Von Duprin E360L electrified trim?
Both electrify the outside trim rather than the latch, but they are aimed at different devices. The Von Duprin E360L-BE-03 is a Grade 1 electric passage trim with an 03 lever, fail safe only, built for 33A and 35A series devices. The ET15 is field selectable between fail safe and fail secure and is ordered to suit either a rim or a concealed vertical rod device. If the door already wears a Von Duprin 33/35A, the E360L is the native match; if you are electrifying a storefront opening or need fail secure, the ET15 is the one that covers it.
7) What is the closest electrified exit device trim to the Command Access ET15?
The nearest peer is the Von Duprin E360L-BE-03, a Grade 1 electric passage exit trim with the 03 lever, fail safe, built for 33/35A Series devices. Both are electrified lever/escutcheon trim rather than electric latch retraction kits. The difference is configuration: the ET15 is field-selectable between fail safe and fail secure and runs on either 12V or 24V AC/DC, while the E360L-BE-03 is specified as fail safe. Another electrified trim in the same lane is the Falcon 510L-FSA/FSE, a heavy duty electrified trim for 25 Series devices.
8) I need fail secure electric trim, not fail safe. What are my options?
The Command Access ET15 is field-configurable for either fail safe or fail secure, so a single part covers the fail secure condition, and it is stocked that way in both 12V and 24V with key override for rim or concealed vertical rod devices. Among electrified peers, the Falcon 510L-FSA/FSE covers both modes in its 25 Series designation, while the Von Duprin E360L-BE-03 is a fail safe configuration.
9) Can I use a standalone pushbutton exit trim instead of wiring the ET15 back to an access control panel?
Yes, if the opening is meant to be controlled at the door rather than from a system. The Dormakaba E-Plex 201U is an electronic pushbutton exit trim in the E-Plex 2000 Series for wide stile doors, and the Dormakaba PowerPlex P201U is an exit trim for rim, mortise and SVR devices in the PowerPlex 2000 Series. The ET15 takes its command from 12V or 24V AC/DC supplied to the trim, so it belongs on an opening tied into a card reader, intercom or panel, with the REE request-to-enter switch available for that integration.
10) Is a nightlatch exit trim a substitute for the ET15?
No. A nightlatch trim retracts the latch by key only and has no electrical function. The Sargent 704ET is a Grade 1 heavy duty night latch lever trim for 700 Series devices, the Corbin Russwin VT957ET is a nightlatch escutcheon trim for ED5000 Series devices, and the Accentra 121NL is an exit device nightlatch trim. Those cover key-only entry. The ET15 is the electrified part, with continuous duty solenoids and 12V or 24V operation, and it carries key override on every configuration for rim or concealed vertical rod devices.
11) Is the ET15 solenoid rated to sit energized all day?
Yes. The ET15 uses continuous duty solenoids, so it can be held energized indefinitely without cooking the coil. That matters on fail safe openings, where the trim is powered and locked during every occupied hour and only drops on alarm or outage. An intermittent duty solenoid in that role overheats.
12) How many versions of the ET15 are there and what do I have to specify when ordering?
Eight combinations, built from three choices. Pick fail safe or fail secure, pick RIM or CVR key override to match the exit device on the door, and pick 12V or 24V to match your power supply. The Request-to-Enter switch is a separate optional add. Every one of those eight is a real orderable build, so nothing on that grid is off limits.
13) What else could I use instead of the ET15 if I want a keypad on the door rather than wiring it to an access control panel?
Look at the Dormakaba E-Plex 201U electronic pushbutton exit trim, a wide stile trim with the credential on the door itself, or the Dormakaba PowerPlex P201U, which fits rim, mortise and surface vertical rod devices. Those are standalone: no panel, no power run to the opening. The ET15 is the opposite approach, a dumb trim that does what your access control system tells it over 12V or 24V. Choose by whether you have a system to tie into.
14) Is there another electrified exit trim I should compare against the Command Access ET15?
The Falcon 510L-FSA/FSE is the closest peer we carry: a heavy duty electrified lever trim for the Falcon 25 Series, offered in FSA and FSE, meaning fail safe and fail secure as separate builds. The ET15 sets that same choice in the field on one part rather than committing to it on the order. If the opening already carries a Falcon 25 Series device, the 510L is the matched trim for it.
15) For a classroom door, should I specify the ET15 or a classroom function trim?
If the room is scheduled and unlocked from a system or a reader, the ET15 gives electric control with field-selectable fail safe or fail secure, which is how a fail safe condition is met for life safety requirements. If the teacher keys the door and no wiring is involved, a mechanical classroom trim is the fit: the Falcon 510L is a heavy duty classroom function trim for 24/25 Series devices, the Falcon 179L is a medium duty classroom function trim in the 1790 Series, and the Dexter ED1000T-CLRM-TP-NC is a Grade 1 classroom trim with thumbpiece, pull plate and cylinder, less cylinder.
16) My exit device is a mortise or surface vertical rod. Does the ET15 still apply?
The ET15 is ordered with key override for either rim or concealed vertical rod devices. For mortise and surface vertical rod openings, trim is usually device-matched: the Sargent 744 is a Grade 1 freewheeling night latch trim where the key retracts the latch, for 8700 and 8900 Series surface vertical rod and mortise devices, and the Corbin Russwin ED3000 3310AET is a passage function trim covering rim, surface vertical rod and mortise. The Corbin Russwin x810ET covers passage function on SecureBolt, rim, surface and concealed vertical rod ED4000 Series devices.
17) Is there a Grade 1 mechanical storeroom trim I can standardize on across a building where only some doors get electrified?
Yes. The Pamex E9000 is a Grade 1 storeroom function heavy duty trim with the L3 lever, fitting doors 1-3/8 inch to 2 inch thick. The Design Hardware KIL storeroom trim is Grade 1 storeroom function with a Schlage C keyway for 1000 and 2000 Series devices, and the Marks USA M195F is a storeroom function lever and rose trim with spring loaded roses for M9900 touchbar devices. On the openings that do need to release from an access control system, the ET15 handles that side with 12V or 24V AC/DC operation.
18) Is the Command Access ET15 suitable for a residential door?
No. The ET15 is a commercial trim, built for storefront and commercial access control work: retail entrances, office buildings, schools, healthcare, industrial and multi-tenant properties. It expects a commercial exit device on the leaf and a low voltage power run to the opening, neither of which a house has.
