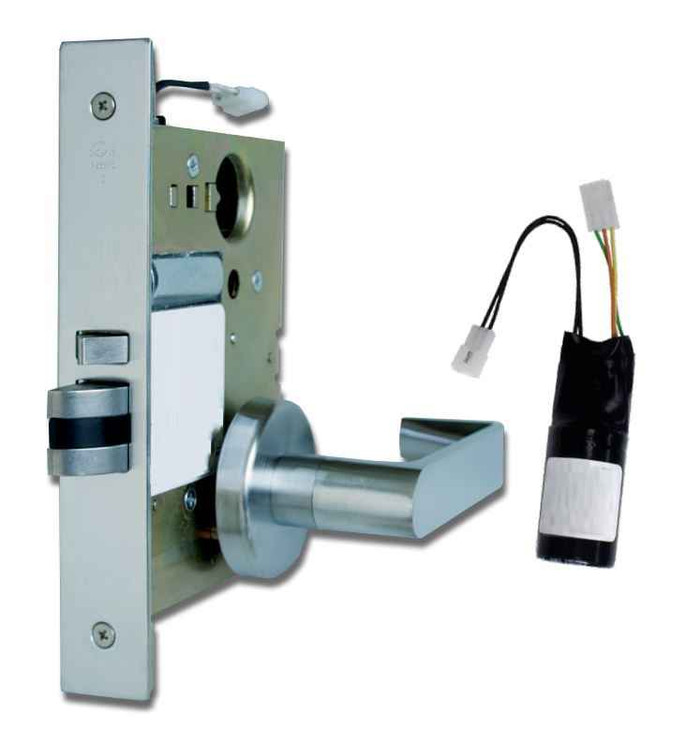

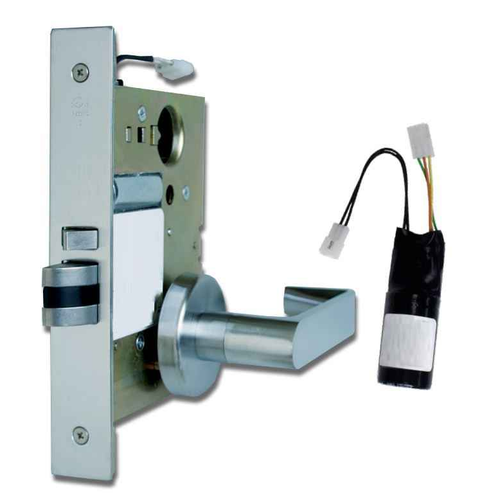

LPM1 Series Storeroom Function
The Command Access LPM1 series mortise lock utilizes a high quality Grade 1 chassis built to
withstand years of abuse. This unique model brings latch retraction to a standard mortise lockset.
Requiring no special door prep, this is the perfect solution for push-pull conditions, handicap
access, and for automatic operators where panic devices are not necessary. The LPM1 takes
advantage of out patented PM300 technology, allowing for favourable wire runs and multiple locks
on one power supply. It is field handible and available in Fail Secure (EU) functionality. This mortise
lock uses standard ‘type 86’ door prep and can retrofit to Schlage L9000 compatible trim. We offer
this model as chassis only or with complete trim
Specifications
Features
• No special lock prep required – fits standard mortise pocket prepped for a Schlage “L” series lock
• Utilizes our patented PM/PWM technology
• Circuitry allow for momentary or continuously on “push/pull” applications
• Available is complete locksets or in chassis only (retrofits to Schlage “L” series compatible trim)
• Must be used with a Command Access PS210,PS1, PS220/220B/ PS440B, or PS5-4 power supply
• No hassle 3-Year Warranty
Latchbolt Solenoid Specifications:
• Operating Voltage – 24 VDC (+/- 10%)
• Holding Current Amperage - 260mA@24VDC
• Surge Current Amperage - 1.9A for
350ms@24VDC
• Peak Current - 7 A @ 24VDC
• Solenoid coil resistance – 1.75 Ω
• Wire gauge: Minimum 18 gauge
• 300’ with 18ga wire
Lever Solenoid Specifications:
• Operating Voltage – 24VAC/DC (+/- 10%)
• Amperage - 24v = 350mA
• Solenoid coil resistance – 24v = 69Ω
Options
• REX - Request to Exit switch available
• LBM- Latchbolt Monitor switch available
Electrified Latch Pullback Mortise Lock
LPM110EU - Passage - Latchbol Control: Latchbolt retracted by lever outside or by lever inside. Applied power electronically (EU) retracts latchbolt for push/pull operation.
Lever Control: Outside Lever & Inside Lever
Always free ingress & egress
LPM180EU - Storeroom - Latchbol Control: Latchbolt retracted by key outside or by lever inside. Applied power electronically (EU) retracts latchbolt for push/pull operation.
Lever Control: Outside Lever Inside Lever
Always Rigid (Locked) Always free egress
LPM182EU - Institutional - Latchbol Control:Latchbolt retracted by key outside or inside (Double Cylinder operation). Applied power electronically (EU) retracts latchbolt for push/pull operation
Lever Control: Outside Lever & Inside Lever
Always Rigid (Locked)
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Series:
- LPM18X Series
- Product Subgroup:
- Mortise Locks and Trim
- Product Type:
- Electrified Mortise Locks
- Subcategory:
- Mortise
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Lock Type:
- Mortise
- Warranty:
- 3 Year Warranty
- Duty Level:
- Heavy-Duty
- Function:
- Storeroom
