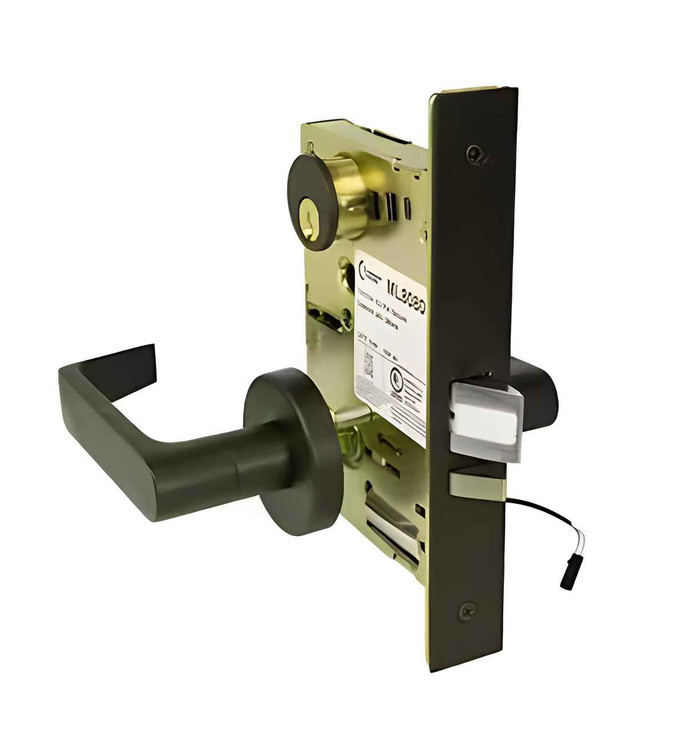

Command Access ML8053 Electrified Mortise Lock with Entry/Deadbolt Function - Cal Royal M Series

Command Access ML8053 Electrified Mortise Lock with Entry/Deadbolt Function - Cal Royal M Series

(No reviews yet) Write a Review

Model: ML8053EL TS 626 24V
$923.70
Selected Finish is
Selected Trim is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$923.70
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Command Access ML8053 Electrified Mortise Lock with Entry/Deadbolt Function - Cal Royal M Series

Professional Electrified Access Control Solution

The Command Access ML8053 electrified mortise lock from the Cal Royal M Series provides remote keyless access and egress control for heavy-duty commercial applications where security and safety are critical. This complete electrified mortise lock features entry with deadbolt function and is engineered for demanding environments including stairwell doors, lobby entrances, computer rooms, classrooms, and both interior and exterior door applications. Available as complete locks or modification-only options with multiple functions and voltages to meet specific requirements.

Professional Features & Benefits

  • Heavy-Duty Construction: Cal Royal M Series mortise lock body designed for high-traffic commercial applications with superior durability and reliability.
  • Electrified Access Control: Remote keyless access and egress control capabilities for enhanced security management and convenience.
  • Entry with Deadbolt Function: Dual-function operation provides both passage control and secure deadbolt locking for comprehensive door security.
  • Flexible Configuration Options: Available as complete locks or modification-only versions (MD prefix) for existing M8080 lock bodies to accommodate various installation needs.
  • Multiple Voltage Options: Various voltage configurations available to integrate with different access control systems and power requirements.
  • Versatile Application Range: Suitable for stairwell doors, lobby entrances, computer rooms, classrooms, and both interior and exterior door installations.
  • Commercial-Grade Reliability: Heavy-duty construction rated for demanding commercial environments where consistent performance is essential.
  • Manufacturer Warranty: 3 Year Warranty for added confidence and protection in commercial installations.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy-Duty
  • Electronic: Yes
  • Lock Type: Mortise
  • Product Attribute: Mortise Locks
  • Product Category: Mechanical Locks
  • Product Function: Entrance/Office
  • Product Group: Mechanical Locks
  • Product Subgroup: Mortise Locks and Trim
  • Product Type: Electrified Mortise Locks
  • Series: ML808 Series
  • Subcategory: Mortise
  • Warranty: 3 Year Warranty

Professional Applications

  • Commercial Building Security Systems
  • Educational Institution Access Control
  • Healthcare Facility Entry Management
  • Government and Municipal Buildings
  • Corporate Office Environments
  • Multi-Tenant Residential Properties
  • Industrial Facility Access Points

Why Choose Command Access Quality?

Command Access electrified mortise locks deliver professional-grade reliability with heavy-duty Cal Royal M Series construction engineered for demanding commercial applications. The 3 Year Warranty provides added confidence for long-term installations where dependable access control performance is essential. Designed specifically for high-security environments where both convenience and protection are critical requirements.

Manufacturer Resources

Command Access Catalog

Product Specs

Product Group:
Mechanical Locks
Series:
ML808 Series
Product Subgroup:
Mortise Locks and Trim
Product Type:
Electrified Mortise Lock
Subcategory:
Mortise
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Mortise
Warranty:
3 Year Warranty
Duty Level:
Heavy-Duty
Product Attribute:
Mortise Locks
Product Function:
Entrance/Office
Product Category:
Mechanical Locks
Department:
Door Hardware

Command Access ML8053EL TS 626 24V – Frequently Asked Questions

1) What do I have to specify when ordering a Command Access ML8053 electrified mortise lock?
Five choices build the part number on the ML8053. Pick fail-safe or fail-secure, voltage (12V or 24V), finish (613 oil rubbed bronze, 625 polished chrome, or 626 satin chrome), lever trim (GS straight, JS curved, SS bent, or TS tubular), and whether you want an optional monitoring switch: LBM latchbolt monitor, REX request-to-exit, or none. Every one of those is a required decision, so settle the access control system's voltage and the monitoring the panel needs before you order.
2) Should I order fail-safe or fail-secure on an electrified mortise lock for a stairwell door?
Fail-safe unlocks when power drops, fail-secure stays locked. The ML8053 is offered both ways. Stairwell doors, which the lock is intended for, are usually the opening where a local code or fire plan dictates which way the door has to behave on power loss, so the building's life safety drawings decide this, not the hardware. The deadbolt side of the entry/deadbolt function is mechanical, operated by key or thumbturn, and is not what the solenoid controls.
3) I already have Cal Royal M8080 mortise lock bodies in the doors. Do I have to buy complete locks?
No. Command Access offers the ML8053 as a modification-only version, identified by the MD prefix, which electrifies an existing M8080 lock body rather than replacing it. Complete locks are the other option. Modification-only means you keep the lock bodies already mortised into the doors and only the electrification is added, which is the cheaper path when the mechanical hardware is sound.
4) Does the ML8053 electrified mortise lock work with a Cal Royal lock body or is it a Command Access lock?
It is a Command Access electrified lock built on the Cal Royal M Series mortise lock body. That matters for two reasons: the mortise pocket prep and trim follow Cal Royal M Series, and if you are standardizing a building already fitted with Cal Royal M Series mortise hardware, the ML8053 drops into the same family. If your doors are prepped for a different manufacturer's mortise case, this is not the lock for them.
5) What else could I use instead of the Command Access ML8053 electrified mortise lock?
A few directions, depending on what the opening needs. The SDC 7600 Series is a Grade 1 motorized latch retraction mortise lockset with 24VDC control for 1-3/4 inch doors, which is the option when you want the latch pulled back electrically rather than the lever released. The SDC Selectric 7800 PRO Series is a solenoid controlled mortise lock with a vandal resistant clutch, also for 1-3/4 inch doors, worth looking at on abuse-prone openings. The DynaLock EML-1 is an electrified mortise lock in storeroom function, so the outside lever is always locked, which is a different security model from entry/deadbolt.
6) What is the difference between the Command Access ML8053 and the Schlage L9050BDC for an office entrance door?
Both are heavy duty Grade-level mortise locks for entrance/office openings, but they solve different problems. The ML8053 is an electrified mortise lock with entry plus deadbolt function, so it carries a deadbolt in addition to the latch and can be switched remotely, with 12V or 24V coils and a fail-safe or fail-secure choice. The Schlage L9050BDC is a mechanical single cylinder entrance/office lock with a non-deadbolt function, Grade 1, for 1-3/4 inch doors, supplied with a disposable SFIC core. If the opening needs electric access control and a deadbolt, the ML8053 is the match; if it is a keyed mechanical office door with no wiring, the L9050BDC does the job.
7) I need an electrified mortise lock but the door is storeroom function, not entry. What should I use instead of the ML8053?
The ML8053 is built around an entry with deadbolt function, so it is not the right pick for a storeroom opening where the outside lever should stay locked at all times. The DynaLock EML-1 is an electrified mortise lock in storeroom function and matches that requirement directly. Keep the ML8053 where the opening needs both controlled entry and a deadbolt.
8) What does the entry/deadbolt function on the ML8053 actually do at the door?
Entrance/office with deadbolt means the lever side gives controlled entry while a separate deadbolt can be thrown for positive locking, and the electrification lets you release the latch remotely from an access control system or card reader. Practically: day to day the opening runs on the credential reader, and the deadbolt gets thrown when the space is secured. If you want a plain electrified entrance function with no deadbolt, the Schlage L9050BDC is the single cylinder non-deadbolt entrance/office mortise lock.
9) Do I need the REX or latchbolt monitor switch on an electrified mortise lock?
Depends what your panel has to see. REX (request-to-exit) signals the access control system that someone turned the inside lever to leave, so the panel does not log it as a forced door. LBM (latchbolt monitor) reports whether the latch is actually thrown, which is what you want for a door status alarm on a secure room. Order None only if the panel is monitoring the opening some other way, because neither switch can be added later without pulling the lock.
10) Will the ML8053 run on my 24VDC access control power supply?
Yes, 24V is one of the two voltage builds; 12V is the other. The voltage is fixed at the time of order, so match it to the power supply feeding the door. If the supply is a multi-voltage unit, confirm which output the door loop is landed on before you pick.
11) What lever styles come with the Command Access ML8053?
Four trim styles: GS straight, JS curved, SS bent, and TS tubular. If you are matching existing openings in a building already running Cal Royal M Series trim, pick the style on the doors you are not touching so the floor looks consistent. Finish is chosen separately, in 613 oil rubbed bronze, 625 polished chrome, or 626 satin chrome.
12) Is the SDC 7600 a substitute for the Command Access ML8053?
They are not interchangeable functions. The SDC 7600 is a Grade 1 motorized latch retraction mortise lockset with 24VDC control for 1-3/4 inch doors, meaning the motor pulls the latch back for remote unlatching. The ML8053 is a solenoid-type electrified entry with deadbolt lock offered in 12V or 24V, fail-safe or fail-secure, with optional latchbolt monitor or request-to-exit switching. Choose the 7600 when the specification calls for motorized latch retraction; choose the ML8053 when the opening needs entry plus deadbolt with a fail-safe or fail-secure decision.
13) For a high abuse opening like a school corridor, is there an electrified mortise lock tougher than the ML8053?
The SDC Selectric 7800 PRO is a solenoid controlled mortise lock with a vandal resistant clutch, sized for 1-3/4 inch doors, which is the feature to look at when levers get abused. The Command Access ML8053 is a heavy-duty electrified mortise lock with entry plus deadbolt function and is offered with four lever trims, so it is the choice when the deadbolt and trim matching matter more than clutch protection.
14) Do I need an electrified lock at all if I just want a keyed office door?
No. The Command Access ML8053 is an electronic lock built for remote keyless access and egress control, so it needs power and wiring to the door. For a plain keyed office opening, the Schlage L9050BDC is a mechanical Grade 1 entrance/office mortise lock for 1-3/4 inch doors with a single cylinder and a disposable SFIC core, and requires no power transfer or power supply.
15) Is the ML8053 heavy enough for a high-traffic lobby or classroom door?
It is built as a commercial, heavy-duty mortise lock, and the intended openings are exactly that: stairwells, lobby entrances, computer rooms, classrooms, and both interior and exterior doors. Mortise construction puts the working parts in a steel case inside the door edge rather than in the knob, which is why it holds up on doors that cycle all day.
