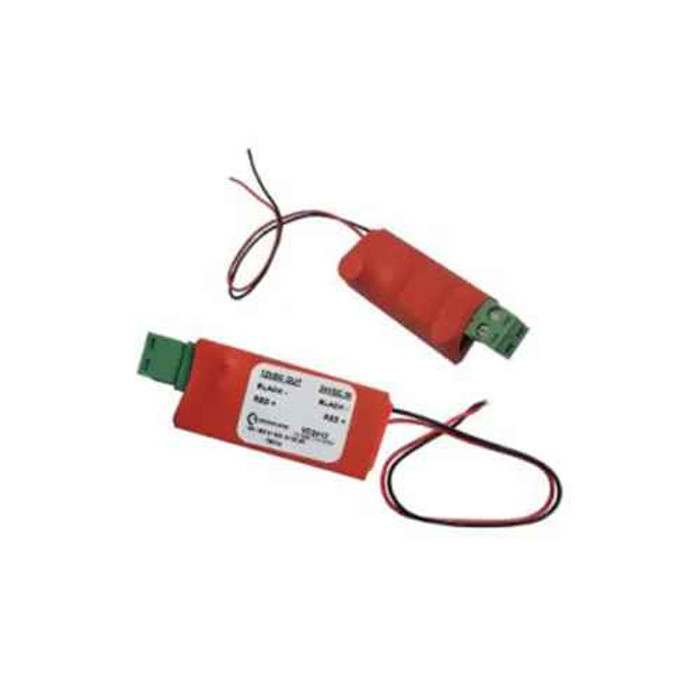

VC Series
Voltage Converter Module
The VC series is a voltage converter that takes incoming voltage, steps it down & supplies consistent voltage at either 24V or 12V, depending on the unit selected. The VC2412 is ideal when
paired with CAT power supplies when 1 output is needed as 12V. Use the VC3024 when working
with other power sources that run hot 27-30V to step down & provide your locking hardware with a
consistent 24V. A great tool to have with you in the field!
VC2412- Voltage converter 24VDC to 12VDC
VC3024- Voltage converter 30VDC to 24VDC
Features
• Euro connector on step down side for easy install.
• Create dual voltage output boards in the field
• Bring down hot voltage so your hardware gets the consistent 24V it is looking for.
• Pair with PS220 power tap to run door sequencers, PRI’s, Cameras & more at 12V
Specifications
Voltage:
VC2412
• Input Voltage range: 24-30VDC
• Output Voltage range: 12VDC
• Maximum Output Current: 1A
VC3024
• Input Voltage range: 27-30VDC
• Output Voltage range: 24VDC
• Maximum Output Current: 1A
Product Details:
• Module: 2.375” x .875” x .75”
• Weight: .2 lbs
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Controls
- Product Group:
- Electronic Access Controls
- Series:
- VS Series
- Subcategory:
- Exit Control Locks
- Commercial/Residential:
- Commercial
- Product Type:
- Exit Control Locks
- Electronic:
- Yes
- Product Subgroup:
- Exit Control Locks and Alarms
