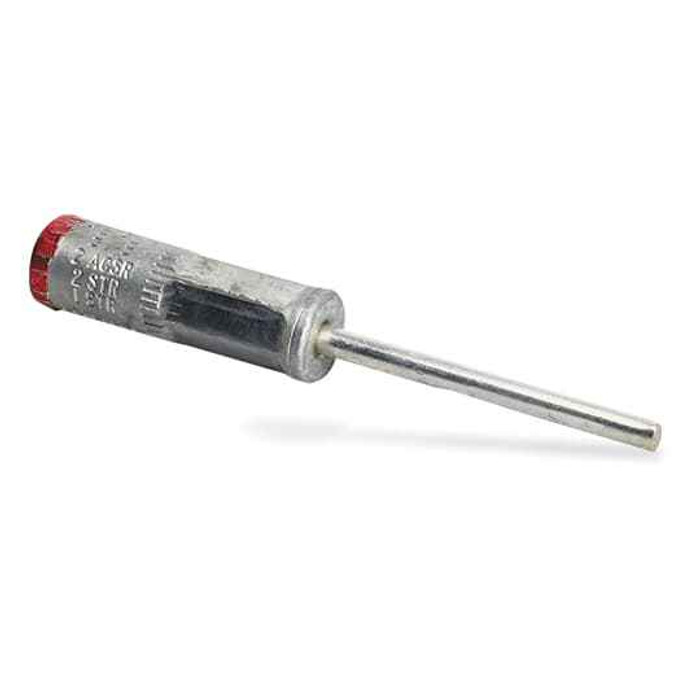

COMP PIN TERM 2/0 PIGTAIL .366X6
Manufacturer Resources
Product Specs
- Connection Type:
- Compression
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 2
- Pigtail Size:
- 21/64 x 6 in
- Product Group:
- Wire Termination
- Product Type:
- Pigtail Compression Sleeve
- Selling Unit Of Measure:
- each
- Surface Finishing:
- Tinplated Pigtail
- Type2:
- Wire or cable compression reducer
- Voltage Rating:
- 35 kV
- Department:
- Electrical
- Product Subgroup:
- Sleeves
- Product Size:
- Sleeve Length 3-1/2 inches
- Installation Category:
- None
- Product Material:
- Aluminum Sleeve, Pre-attached Copper Pigtail
Blackburn PKL46-1 – Frequently Asked Questions
1) What conductor size does the Blackburn PKL46-1 pigtail sleeve take?
The PKL46-1 is a 2/0 compression pin terminal. The aluminum sleeve crimps onto the 2/0 cable and the pre-attached copper pigtail comes out the other end, so you are reducing a 2/0 run down to the pigtail conductor for termination in smaller equipment lugs.
2) Is the PKL46-1 rated for medium voltage work?
It carries a 35 kV voltage rating, which covers standard 15 kV, 25 kV and 35 kV class medium voltage cable terminations. That is what separates this part from a standard low voltage lug.
3) Is the Blackburn PKL46-1 insulated, or do I have to insulate it myself?
No insulation is supplied on the sleeve. Insulation material is listed as none, so the crimped barrel and the exposed pigtail need to be covered in the field with tape, tubing, or whatever the termination kit calls for. Plan that material into the job.
4) Can I use an aluminum sleeve on copper cable, or the other way around?
The PKL46-1 is built as a transition part: the crimp sleeve is aluminum and the pigtail is copper, tin plated. Crimp the aluminum barrel onto the aluminum 2/0 conductor and land the tinned copper tail at the equipment. The tin plating on the tail is what lets it sit against copper or aluminum hardware without a bare dissimilar metal joint.
5) How long is the compression sleeve barrel on the Blackburn PKL46-1?
Sleeve length is 3-1/2 inches. That is the barrel you crimp, so strip your 2/0 to suit the full barrel depth and plan for a die set matched to 2/0 aluminum compression. Confirm you have working room for a 3-1/2 inch barrel plus the 6 inch tail before you commit to the termination point.
6) Does the PKL46-1 come in packs, or is it sold one at a time?
Sold each. One sleeve with its pigtail per unit, so count your terminations and order that quantity. If you are terminating a three phase medium voltage feeder with a neutral you need four.
7) What is the manufacturer part number and country of origin for this Blackburn pigtail sleeve?
Manufacturer part number is PKL46-1, from Blackburn, made in Mexico. Distributors cross-referencing should note the full catalog description reads COMP PIN TERM 2/0 PIGTAIL .366X6.
