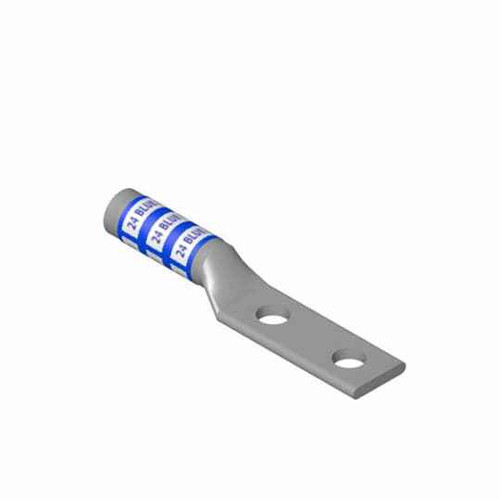

Color-Keyed 4/0 AWG Aluminum Compression Lug Terminal with 1/2 in Stud

Color-Keyed 4/0 AWG Aluminum Compression Lug Terminal

Professional Long Barrel Compression Connection Solution

The Color-Keyed compression lug terminal delivers reliable electrical connections for 4/0 AWG cable applications. This aluminum construction terminal features a long barrel design with 2-bolt compression system and 1/2 inch stud size, providing secure connections rated for 35 kV applications. The white color-coded design ensures easy identification and professional installation in electrical distribution systems.

Professional Features & Benefits

• 4/0 AWG Cable Capacity: Accommodates large conductor sizes for high-current applications and power distribution systems.
• 35 kV Voltage Rating: Provides reliable performance in high-voltage electrical installations with professional-grade insulation coordination.
• Aluminum Construction: Lightweight yet durable material offers excellent conductivity and corrosion resistance for long-term reliability.
• Long Barrel Design: Extended barrel length ensures maximum contact area and secure cable retention for enhanced connection integrity.
• 2-Bolt Compression System: Dual-bolt configuration provides uniform compression and consistent contact pressure across the connection.
• 1/2 Inch Stud Size: Standard stud dimension ensures compatibility with common bus bars and connection hardware.
• UL Listed (E9809): Third-party safety certification ensures compliance with electrical safety standards and code requirements.

Technical Specifications

• Brand Label: Color Keyed / Blackburn
• Cable Size: 4/0 AWG
• Country Of Origin: Mexico (MX)
• Effective Date: 19750324
• Idea Granular Category Code Igcc : 4532 >> Cable or wire lug
• Insulation Material: None
• Product Color: White
• Product Material: Aluminum
• Product Name: LUG TERMINAL
• Product Type: Long Barrel
• Selling Unit Of Measure: each
• Standards: UL E9809
• Stud Size: 1/2 in
• Sub Brand Label: Color Keyed
• Voltage Rating: 35 kV
• Weee Category: Product Not in WEEE Scope

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Distribution Panels
• Power Transmission Systems
• Industrial Control Cabinets
• Commercial Electrical Installations
• Utility Infrastructure Projects
• High-Voltage Switchgear
• Substation Equipment Connections

Why Choose Color-Keyed Quality?

Color-Keyed compression terminals provide dependable electrical connections backed by UL listing and proven aluminum construction. The white color-coding system ensures proper identification while the long barrel design delivers maximum connection reliability for professional electrical installations.
