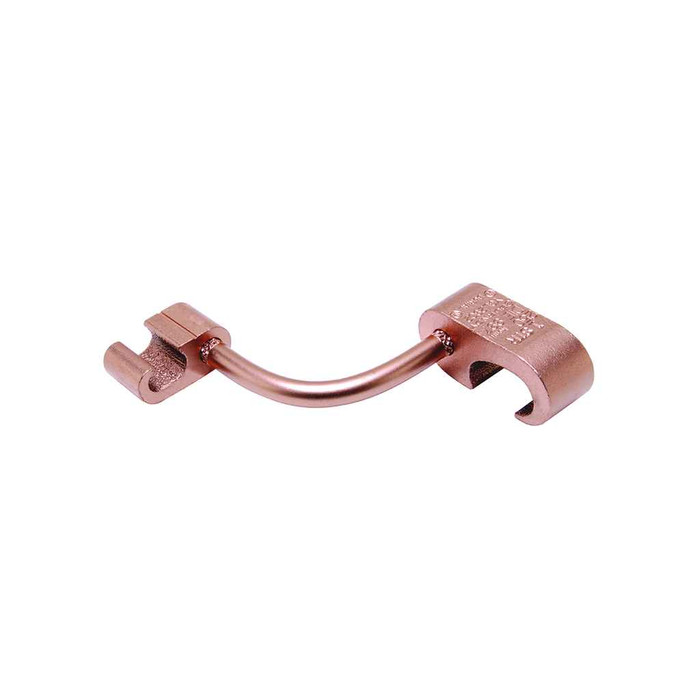

Compression YGL34C34
YGL34C34 - spec sheet
Industry Standard(s)
- IEEE 837
- UL467
Conductor Type
- Rebar-Size A
- Rod-Size A
- CU C Str-Size B
- CU C Solid-Size B
- CU C Solid-Size A
- CU C Str-Size A
Standards - Industry Standards Met
- UL467
- IEEE 837
YGL34C34 - spec sheet
Manufacturer Resources
Product Specs
- Application:
- For Direct Burial In Earth And Concrete
- Certification Csa Approved:
- Yes
- Certification Culus:
- No
- Certification Etl:
- No
- Certification Ul Listed Direct Burial:
- Yes
- Certification Ul Recognized:
- No
- Conductor Copper Str Size A:
- 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor Copper Str Size A Range:
- 250 kcmil-500 kcmil
- Conductor Copper Str Size B:
- 250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil
- Conductor Copper Str Size B Range:
- 250 kcmil-500 kcmil
- Conductor Rebar Size A:
- 5 ;6
- Conductor Rebar Size A Range:
- 6-May
- Conductor Rod Size A:
- 5/8 in;3/4 in
- Conductor Rod Size A Range:
- 5/8 in-3/4 in
- Connector Type:
- Tap
- Die Index:
- 1011

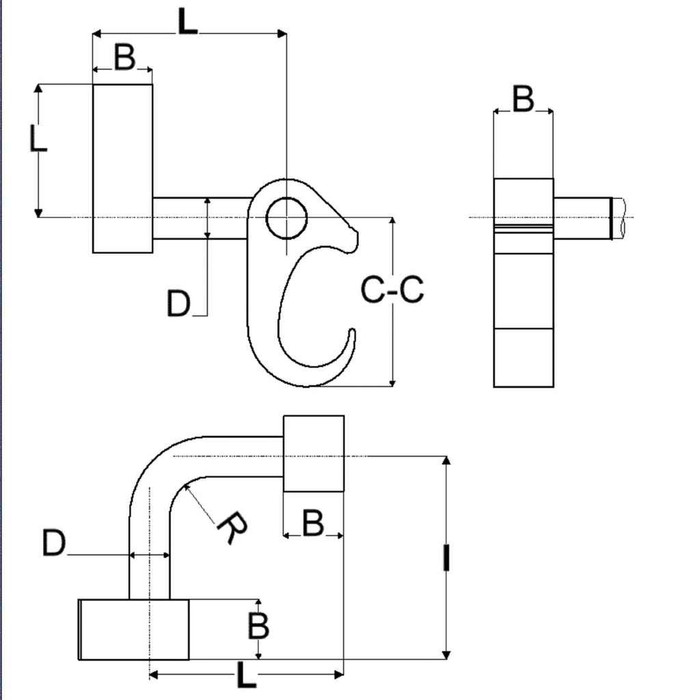

- Dimension B Length Fraction:
- 1-1/9 in
- Dimension B Length Inch:
- 1.10 in
- Dimension D Inch:
- 0.75 in
- Dimension L Length Overall Mm:
- 64 mm
- Dimension Length Overall Inch:
- 2.50 in
- Dimension Pad Width Inch:
- 2.28 in
- Material:
- Copper
- Minimum Pack Quantity:
- 1
- Oxide Inhibitor Type:
- Penetrox E
- Plated:
- N
- Plating Type:
- Unplated
- Prefilled Oxide Inhibitor:
- Y
- Standards Rohs Compliance Status:
- CM
- Sub Brand:
- HYGRID
- Trade Name:
- HYGRIDâ„¢
- Type:
- Taps
- Ul Listed:
- Yes
- Product Type:
- Crimped Cable Lug
