Thomas & Betts WJT-5031 Conduit and Voltage Marker Cards - Vinyl

The legend reads 13,800 VOLTS, printed in black on a safety orange background. Character height is 1-7/8 inches, so it reads from a distance in a vault or switchgear room. One marker per card.

It is a Style A card, 2-1/4 x 9 inches. The 9 inch dimension is the wrap length, so it suits conduit and raceway small enough for a 9 inch circumference to go around with overlap. On larger diameter runs it works as a flat applied label rather than a full wrap.

Yes. They ship in multiples of 25, with 25 cards to the inner pack and 600 to the full carton. Even though the unit of measure is each, an order has to land on a 25 count multiple.

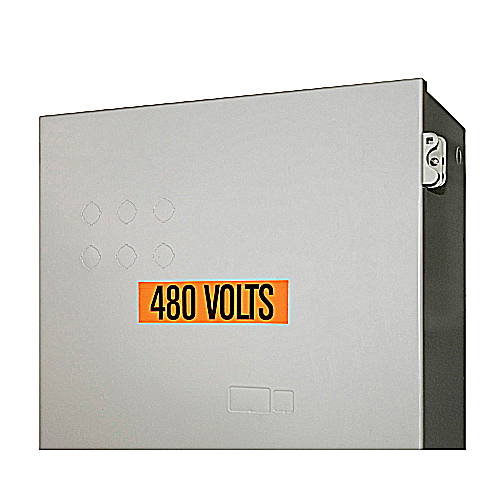

No. The WJT-5031 is self-sticking vinyl, so it goes straight onto a clean conduit or enclosure surface with no banding, wire ties, or separate adhesive. Wipe the run down first, since adhesion on dusty or oily raceway is where these fail.

Thomas & Betts states the marker cards are OSHA compliant, and the format matches what inspectors look for on high voltage raceway: high contrast black printing on safety orange with a legible voltage legend. For a facility standardizing identification, the 13,800 VOLTS card covers one voltage class only, so you would pair it with the matching cards for the other voltages on site.

No. Each card carries a single fixed legend, and on the WJT-5031 that legend is 13,800 VOLTS with one marker per card. For other system voltages you order the corresponding marker card part number rather than a mixed pack.

Yes, the vinyl marker card is RoHS compliant, which covers most institutional and government submittal requirements on material content.

Thomas & Betts rates them at 6.25 lbs per 1000 cards, so a full 600 count carton is light. Carton dimensions are 9.5 x 8.25 x 5.25 inches.
