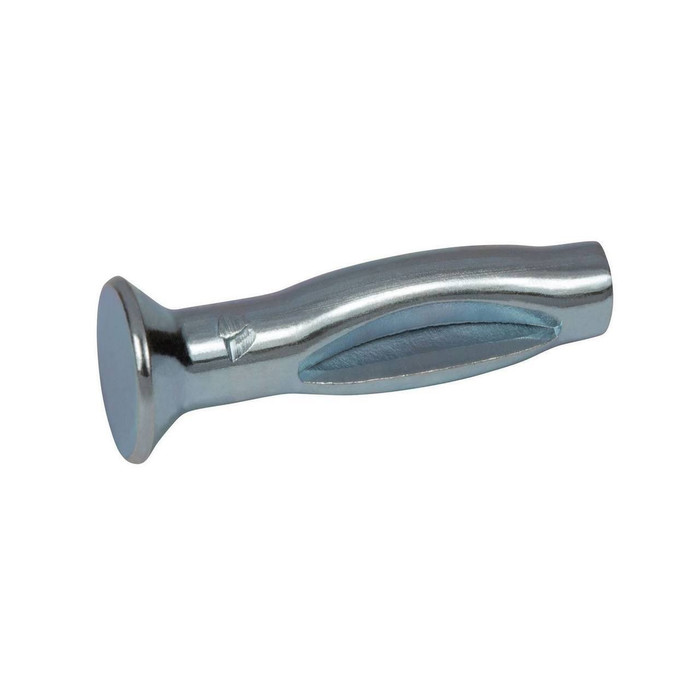

CONFAST SDF Split Drive Flat Anchor, 1/4" x 1-1/2", Zinc Plated (Box of 100)
The CONFAST SDF Split Drive Flat Anchor is a professional grade concrete anchor engineered for dependable fastening into concrete and masonry substrates. Sized at 1/4" x 1-1/2", this split drive flat anchor features zinc plated construction for reliable corrosion resistance in both interior and exterior environments. Sold in convenient boxes of 100, it is well suited for contractors, facility maintenance teams, and commercial installers who need consistent, bulk-ready anchoring hardware for concrete applications. Each anchor is designed to deliver secure, long-lasting holding power once driven into properly prepared concrete or masonry substrates, making it a practical choice for repeat commercial use.
Key Features
- Anchor Dimensions: Sized 1/4" x 1-1/2" for a precise fit in standard concrete anchoring applications.
- Zinc Plated Construction: Zinc plated finish provides corrosion resistance and long-term durability in demanding environments.
- Split Drive Design: Flat split drive anchor style enables straightforward drive-in installation into pre-drilled concrete without additional hardware.
- Professional Grade Quality: Manufactured to professional grade specifications for reliable performance in commercial and contractor applications.
- Bulk Box Packaging: Sold in boxes of 100 for job-site efficiency, inventory management, and cost-effective bulk purchasing.
- Purpose-Built Concrete Anchor: Designed specifically as a concrete anchor for fastening into concrete and masonry substrates.
- Flat Head Profile: Flat anchor head sits flush for a clean, low-profile finish once installed.
- Consistent Sizing: Uniform 1/4" x 1-1/2" dimensions across the full box of 100 support predictable, repeatable installations.
Technical Specifications
- Product Type: Concrete Anchor
- Box Quantity: 100
Typical Applications
- Commercial Construction Projects
- Concrete and Masonry Installations
- Industrial and Warehouse Facilities
- Retail and Commercial Build-Outs
- Multi-Family Residential Construction
- General Contractor and Maintenance Applications
- Facility Repair and Renovation Work
Why CONFAST SDF?
CONFAST concrete anchor products are manufactured to professional grade standards with durable zinc plated construction for dependable, long-term performance. Engineered for demanding commercial and contractor applications, the SDF split drive flat anchor delivers consistent results wherever secure concrete anchoring is essential, and the box of 100 packaging keeps crews stocked for ongoing installation and repair work.
Specifications
- Pull-Out (lbs.): 990
- Shear (lbs.): 1248
- Bit Size: 1/4"
- Box Qty: 100
- Head Type: Flat Countersunk
- Min. Edge Distance: 1-1/4"
- Min. Embedment: 1-1/8"
- Min. Fixture Hole Ø (In Place): 3/8"
- Min. Spacing: 2-1/2"
Specifications by Size
| Size | Max. Fixture Thickness | UPC |
|---|---|---|
| 1/4" x 1-1/2" | 3/8" | 820274001813 |
| 1/4" x 2" | 7/8" | 820274001820 |
| 1/4" x 2-1/2" | 1-3/8" | 820274001837 |
| 1/4" x 3" | 1-7/8" | 820274001844 |
| 1/4" x 3-1/2" | 2-3/8" | 820274001851 |
| 1/4" x 4" | 2-7/8" | 820274001868 |
Manufacturer Resources
Product Specs
- Product Type:
- Split Drive Anchor
- Product Brand:
- CONFAST
- Product Material:
- Zinc Plated
- Box Quantity:
- 100
- Department:
- Fasteners
- Product Group:
- Concrete Anchors
- Product Subgroup:
- Concrete Anchors
- Location Rating:
- Dry
- Base Material:
- Concrete only
- Product Attribute:
- Male (threaded stud)
CONFAST SDF14112 – Frequently Asked Questions
1) What lengths does the CONFAST SDF split drive flat anchor come in?
The CONFAST SDF split drive flat anchor is a 1/4 inch diameter anchor offered in six lengths: 1-1/2, 2, 2-1/2, 3, 3-1/2 and 4 inches. Pick the length by how thick the material you are fastening is, plus the embedment you want in the concrete. All sizes come in the same zinc plated finish and the same box of 100.
2) Do I need a separate sleeve or expansion shield to install a split drive anchor?
No. A split drive anchor is a one piece drive-in fastener: you drill the hole in the concrete, set the fixture, and hammer the anchor in. The split shank compresses and springs back against the hole wall to hold. The CONFAST SDF needs no sleeve, shield, nut or washer.
3) Is the CONFAST split drive anchor removable if I have to take the fixture back off?
Treat it as permanent. Split drive anchors have no threads or head to turn, so once driven they cannot be backed out; removal usually means cutting or grinding the head flush. If the fixture has to come off later, use a threaded anchor such as a sleeve anchor or a wedge anchor instead.
4) Can I use the CONFAST zinc plated split drive anchor outdoors?
Zinc plating gives corrosion resistance suited to interior and exterior use in ordinary conditions. For constant wet exposure, coastal salt air or chemical environments, a stainless fastener is the better call.
5) What is the flat head version of the split drive anchor for?
The flat head sits flush once driven, so it suits fastening plates, straps, conduit clips, furring and similar flat fixtures against concrete where you do not want a protruding head. If you are anchoring something that needs a mushroom profile over an oversized hole, that is a different head style.
6) Will a split drive anchor hold in block or brick, or is it concrete only?
CONFAST lists the SDF for concrete and masonry substrates. In hollow block, drive it into the solid web or mortar joint rather than the hollow cell, since the anchor relies on the hole wall gripping the split shank. Soft or crumbly masonry will not develop the same hold.
7) How many anchors are in a box of CONFAST SDF?
Each box holds 100 anchors, all one size, which is why crews doing repetitive strap, clip or plate fastening buy it this way. Order one box per size you need, since lengths are not mixed within a box.
8) Why is a concrete anchor like this listed under electrical supplies?
The CONFAST SDF is a general purpose 1/4 inch concrete anchor, and electrical crews are among its heaviest users for fastening conduit straps, boxes and strut to concrete and block. It is not electrical-specific hardware; contractors, maintenance teams and general trades use the same anchor.
