Product Specs
- Approved In Combination With Protective Conduit Csa:
- Y
- Approved In Combination With Protective Conduit Ul:
- Y
- Connection Type Screw Connection To Housing:
- Thread
- Construction Type:
- External thread
- Etim:
- EC001180 Screw connection for protective metallic hose
- Finish:
- Zinc Plating/Clear Chromate
- Inner Dimensions Inches :
- 8x5x4
- Inner Quantity:
- 5
- Material:
- Aluminum
- Material Housing:
- Other
- Model:

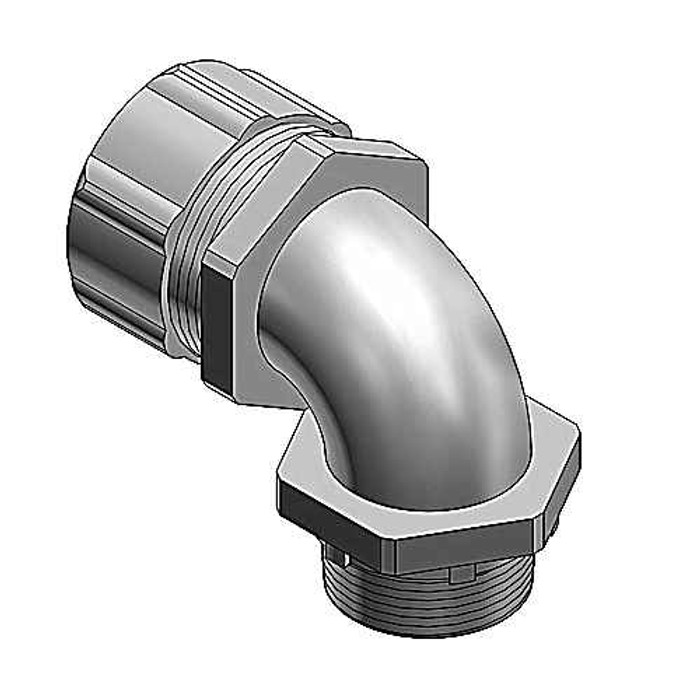

- 90°-elbow
- Nominal Size In Inch:
- 1 1/4 inch
- One Piece:
- N
- Outer Dimensions Inches :
- 26.7x8.39x4.5
- Outer Quantity:
- 25
- Product Group:
- Connectors
- Revolving Thread:
- N
- Standard:
- UL E23018, CSA
- Surface Protection:
- Zinc coated
- Thread Connection Size:
- Other
- Thread Length:
- 20.63mm
- Thread Type:
- NPT
- Type:

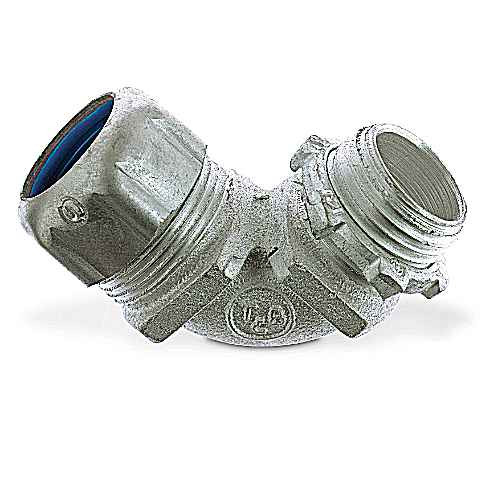

- Connectors-90 Degree
- Unspsc:
- 39121420 Liquid tight connectors
- Weight Uom:
- 50.38 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Electrical Connectors
- Product Type:
- Connectors-90 Degree
