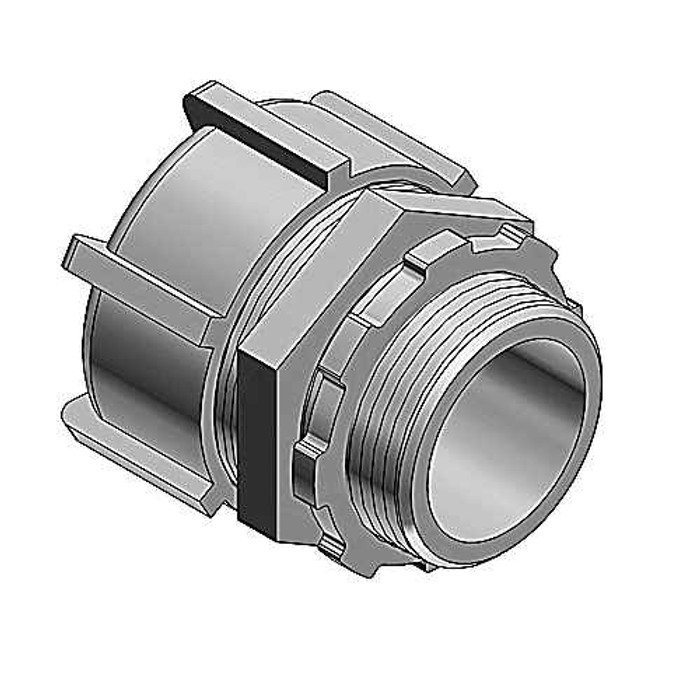

Thomas & Betts 3/4 Inch NPT Straight Conduit Connector with Zinc Plating

Thomas & Betts 3/4 Inch NPT Straight Conduit Connector with Zinc Plating

Professional Electrical Conduit Connection Solution

The Thomas & Betts 3/4 inch NPT straight conduit connector delivers reliable electrical conduit connections with aluminum construction and zinc plating/clear chromate finish. This external thread connector features NPT threading for secure attachment and is approved for use with protective conduit systems under UL and CSA standards.

Professional Features & Benefits

• 3/4 Inch NPT Threading: Standard NPT thread type ensures compatibility with common conduit systems and secure connections.
• Aluminum Construction: Lightweight yet durable material provides excellent corrosion resistance and long-term performance.
• Zinc Plating/Clear Chromate Finish: Enhanced surface protection delivers superior corrosion resistance in demanding environments.
• UL E23018 and CSA Approved: Meets rigorous safety standards for protective conduit applications ensuring code compliance.
• External Thread Design: Facilitates straightforward installation and secure mechanical connection to conduit systems.
• Straight Configuration: Direct connection path minimizes installation complexity and maintains optimal conductor routing.

Technical Specifications

• Approved In Combination With Protective Conduit Csa: Y
• Approved In Combination With Protective Conduit Ul: Y
• Connection Type Screw Connection To Housing: Thread
• Construction Type: External thread
• Department: Electrical
• Etim: EC001180 Screw connection for protective metallic hose
• Inner Dimensions Inches: 8x5x4
• Inner Quantity: 25
• Material: Aluminum
• Material Housing: Other
• Nominal Size In Inch: 3/4 inch
• One Piece: N
• Outer Dimensions Inches: 8.49x5.19x8.13
• Outer Quantity: 50
• Product Details: Connectors-Straight
• Product Finish: Zinc Plating/Clear Chromate
• Product Group: Connectors
• Product Model: Straight
• Product Subgroup: Electrical Connectors
• Product Type: Connectors-Straight
• Revolving Thread: N
• Standard: UL E23018, CSA
• Surface Protection: Zinc coated
• Thread Connection Size: Other
• Thread Length: 14.28mm
• Thread Type: NPT
• Total Length: 41.28mm
• Unspsc: 39121420 Liquid tight connectors
• Weight Uom: 12.38 lbs. per 100

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Installations
• Industrial Conduit Systems
• Residential Electrical Projects
• Maintenance and Repair Operations
• Professional Electrical Contracting
• Code-Compliant Conduit Connections

Why Choose Thomas & Betts Quality?

Thomas & Betts conduit connectors deliver proven reliability with UL E23018 and CSA approvals, ensuring code compliance and professional performance. The zinc plating/clear chromate finish and aluminum construction provide long-term durability in demanding electrical applications.
